22 & 35 Ton Air Hydraulic Floor Jack – Heavy-Duty Lift for Trucks & Equipment

22-Ton & 35-Ton Heavy-Duty Air Hydraulic Floor Jacks – For Trucks, Tractors & Industrial Equipment

OVERVIEW

Engineered for maximum lifting power in professional environments, our Air Hydraulic Floor Jacks are the ultimate solution for heavy-duty vehicle maintenance. Whether you are servicing a fleet of semi-trucks, agricultural tractors, or industrial machinery, these jacks provide a safe, efficient, and reliable lift. Available in 20,000kg (22-Ton) and 31,750kg (35-Ton) capacities, each unit features an air-over-hydraulic system that eliminates manual effort, making them essential for high-volume truck shops, farms, and construction sites.

SYSTEM HIGHLIGHTS

• Air-Powered Precision: Operates on standard shop air (90–145 PSI), providing a smooth and effortless lift for heavy axles and frames.

• Rapid Piston Extension: Features a quick-lift system that brings the saddle into contact with the load point significantly faster than manual jacks.

• Industrial Durability: Constructed with a high-strength, powder-coated steel frame and a reinforced hydraulic cylinder for long-term corrosion resistance and reliability.

• Superior Mobility: Equipped with 203mm (8") heavy-duty rubberized wheels and a multi-position T-handle, allowing for easy positioning under low-profile tandem axles.

• Safety Integration: Built-in safety overload valves prevent use beyond the rated capacity, ensuring operator safety during high-pressure lifting.

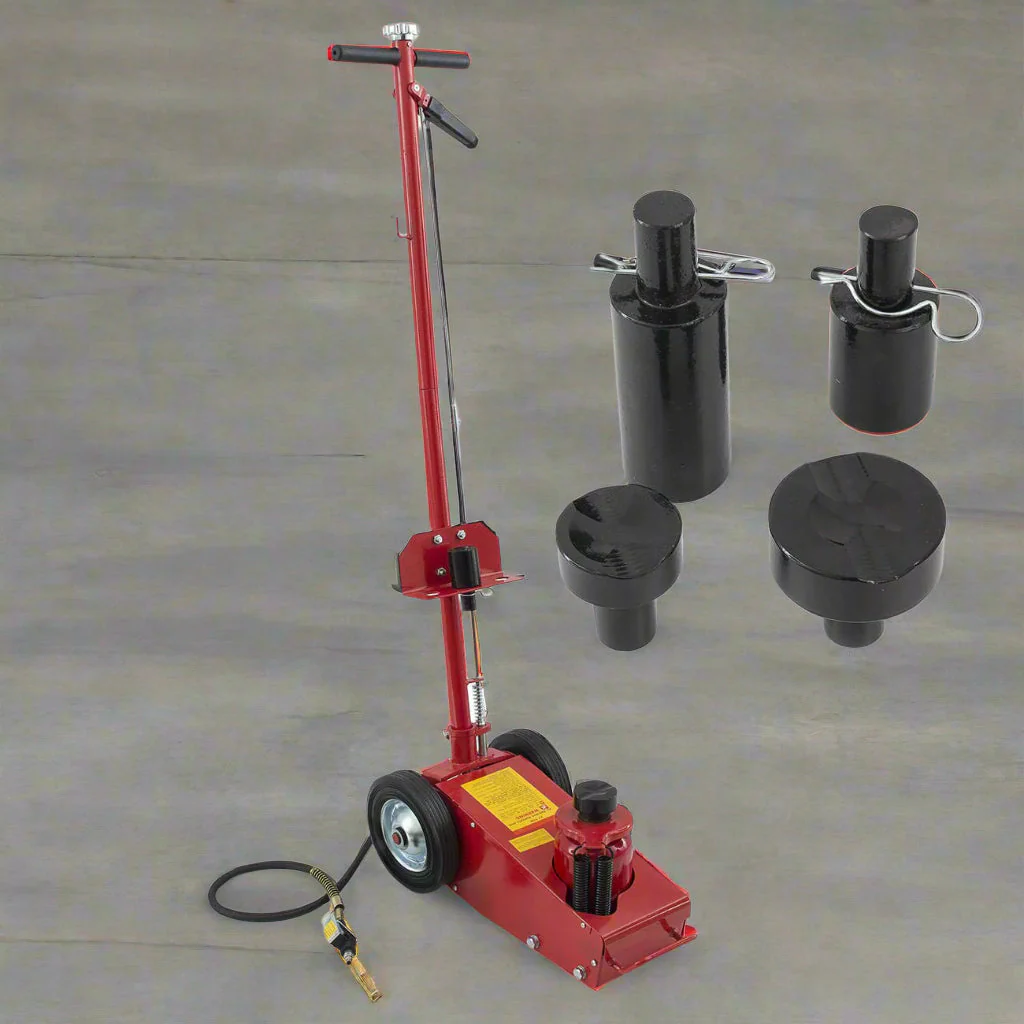

• Versatile Lift Adapters (35-Ton Model): Includes a specialized multi-adapter kit to accommodate various axle heights and frame configurations.

SPECIFICATIONS & DIMENSIONS

Feature	22-Ton Model (20,000kg)	35-Ton Model (31,750kg)
Lifting Capacity	20,000kg (44,000lbs)	31,750kg (70,000lbs)
Lifting Range	216–435mm (8.5"–17.1")	260–451mm (10.2"–17.7")
Operating Pressure	90–145 PSI	90–145 PSI
Wheel Diameter	203mm (8")	203mm (8")
Finish	Powder-Coated Industrial Steel	Powder-Coated Industrial Steel
Handle Type	Multi-Position T-Handle	Multi-Position T-Handle

IDEAL APPLICATIONS

Commercial Truck Maintenance - Agricultural Tractor Servicing - Semi-Trailer Fleet Logistics - Roadside Heavy Recovery - Construction & Mining Equipment Repair
