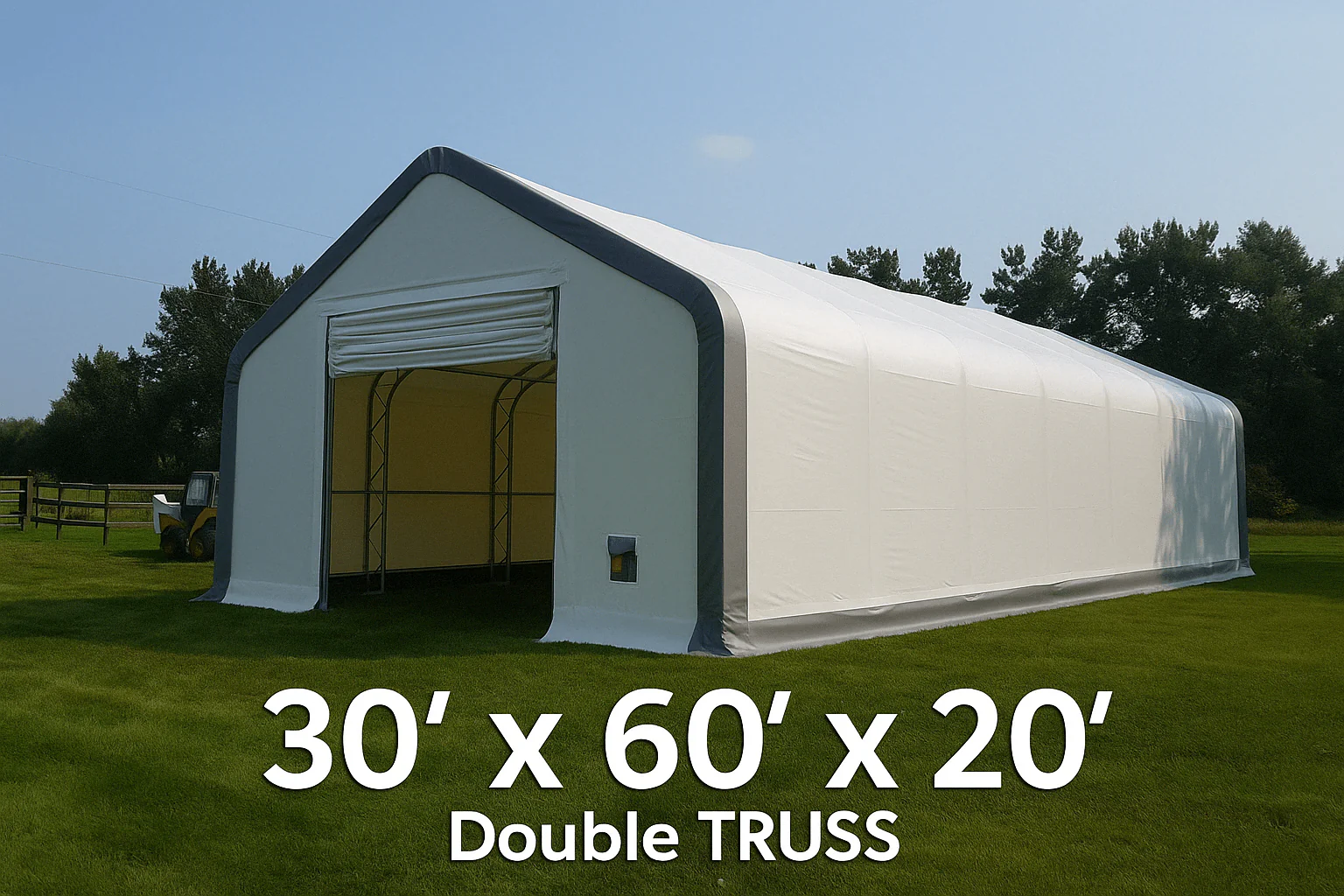

30 Ft Wide Double Truss Storage Building – Heavy-Duty Portable Shelter for Farm & Industrial Use

Professional 9.14 m (30') Wide Double Truss Industrial Storage Building – Extreme-Duty PVC Shelter

Reinforced Structural Engineering for High-Volume Logistics, Heavy Equipment, and All-Season Agricultural Use

OVERVIEW

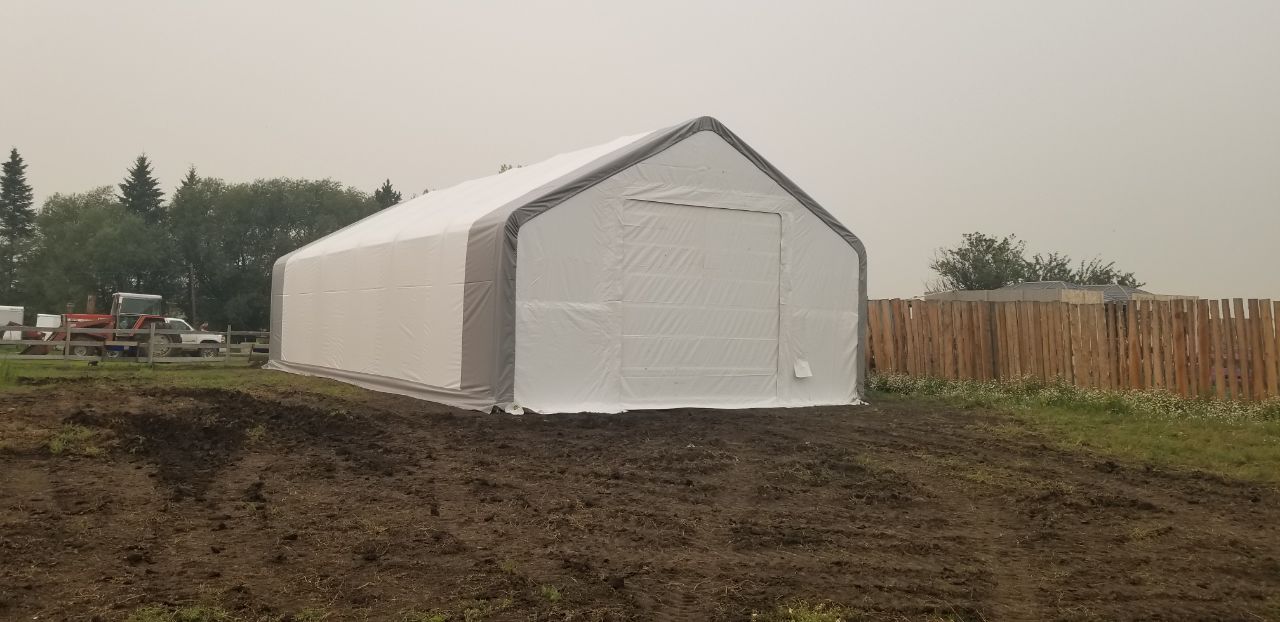

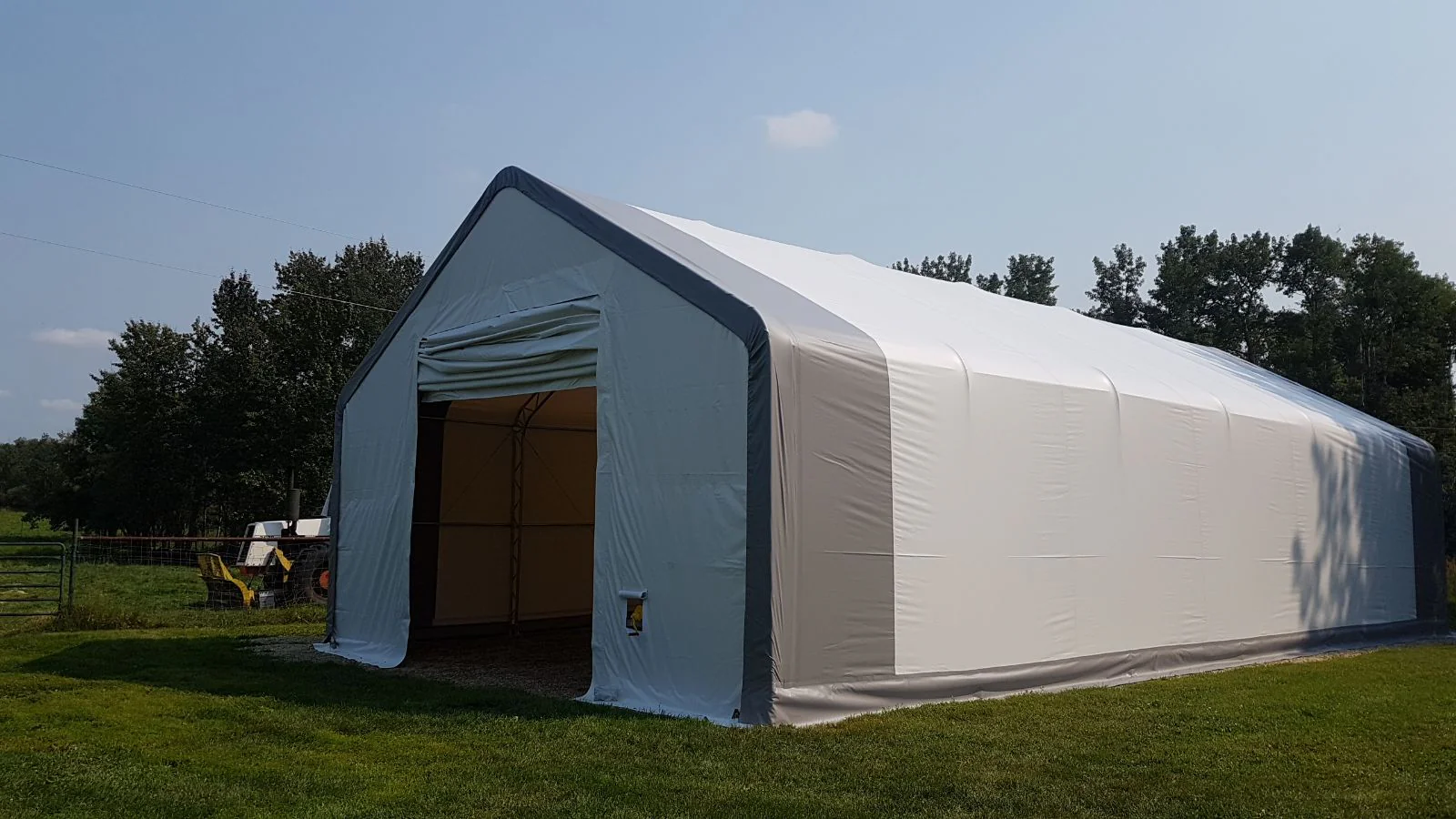

Optimize your site operations with the extreme durability of our Professional 9.14 m (30') Wide Double Truss Storage Building. Engineered for the most demanding commercial and industrial environments, this structure features a reinforced double-truss galvanized steel frame, offering significantly higher resistance to wind and snow loads compared to standard single-truss models. Clad in industrial-grade 22.5 oz (750 gsm) or premium 26.5 oz (900 gsm) PVC fabric, this shelter provides an airtight, waterproof, and UV-stabilized environment. With a towering 6.1 m (20') peak height and dual 4.27 m mechanical roll-up doors, this series is the definitive choice for long-term equipment storage, mobile warehouses, and multi-functional fabrication workshops.

Heavy Duty 30 Ft Wide Building Options Here also

SYSTEM HIGHLIGHTS

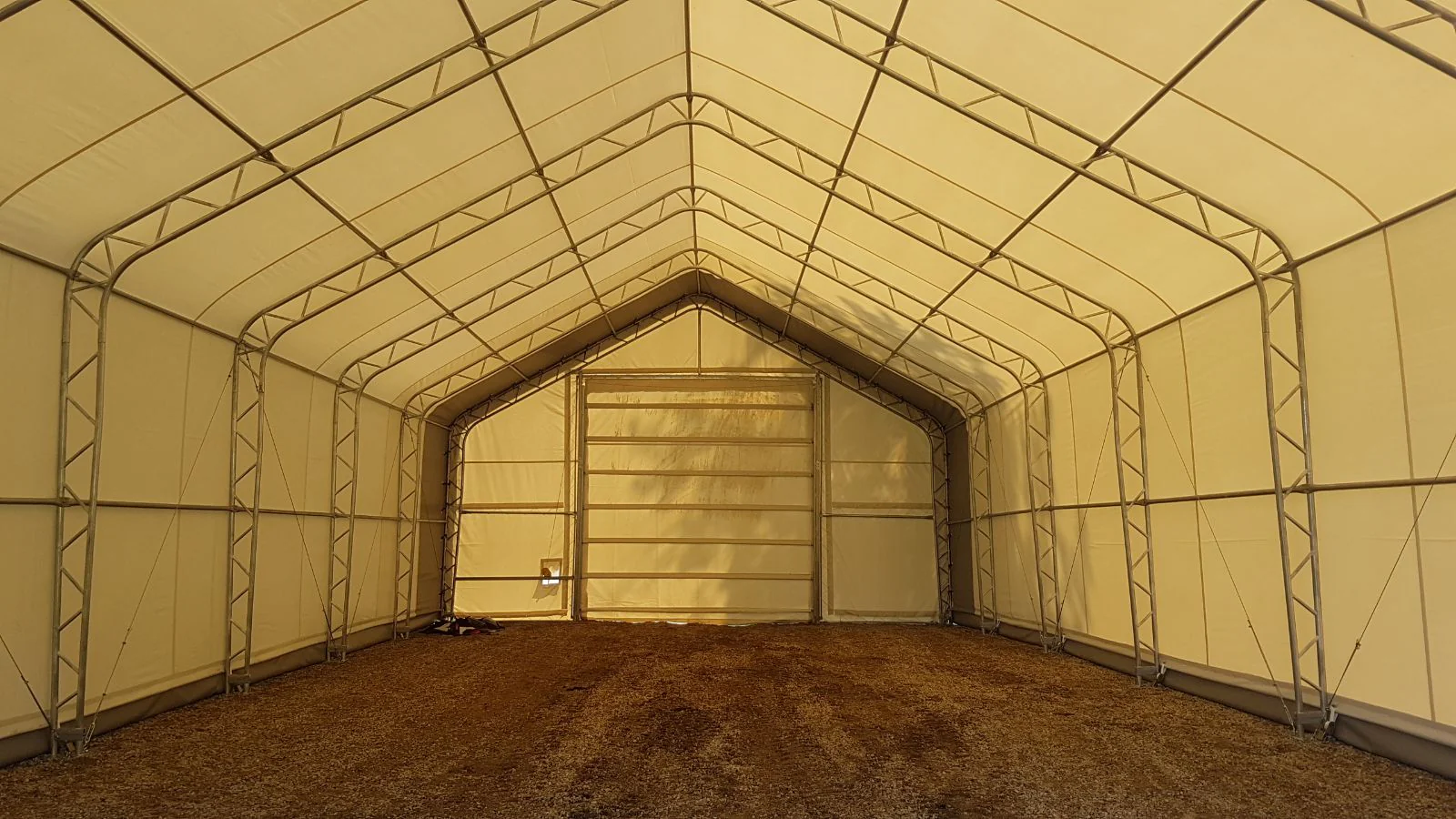

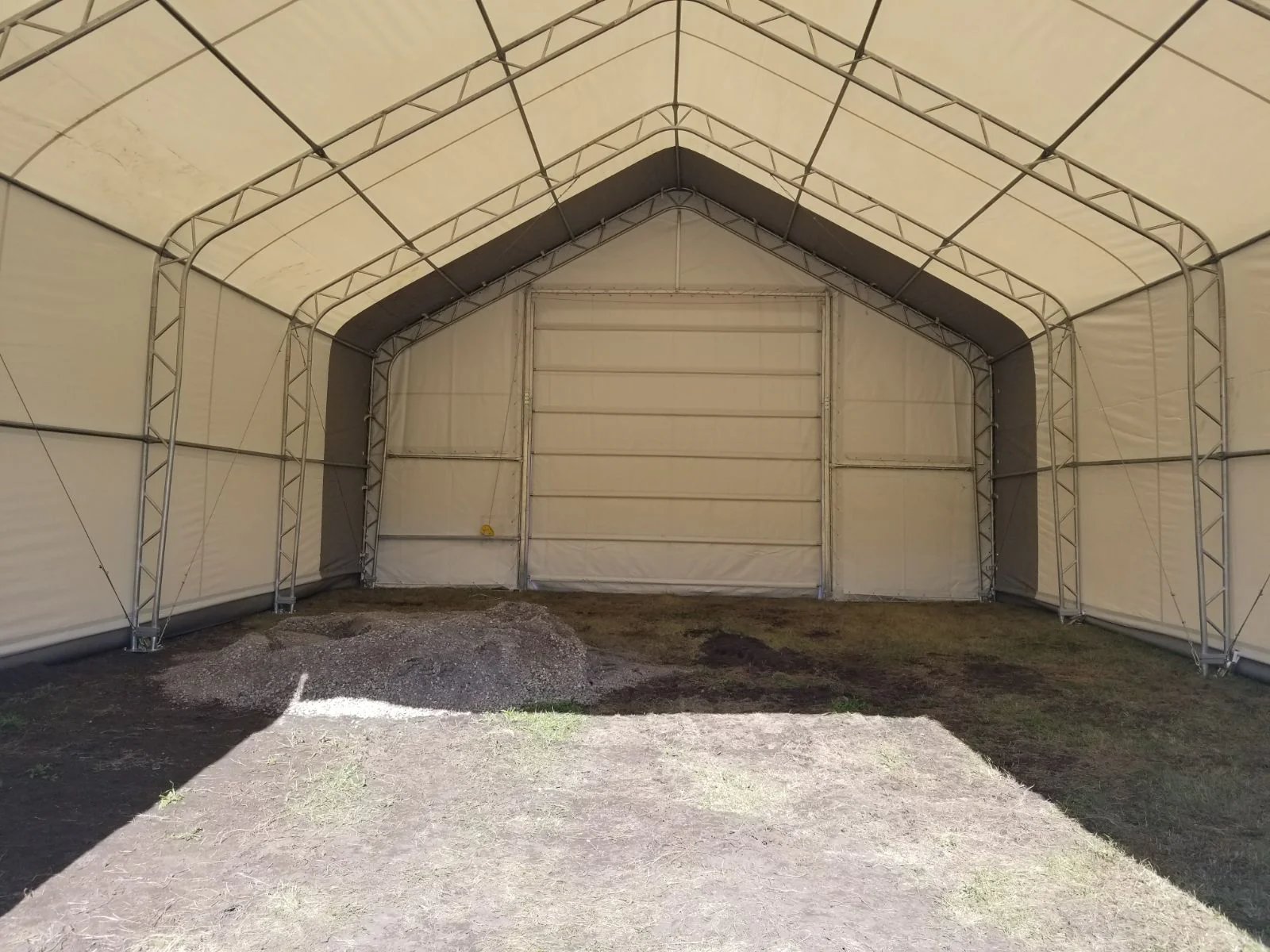

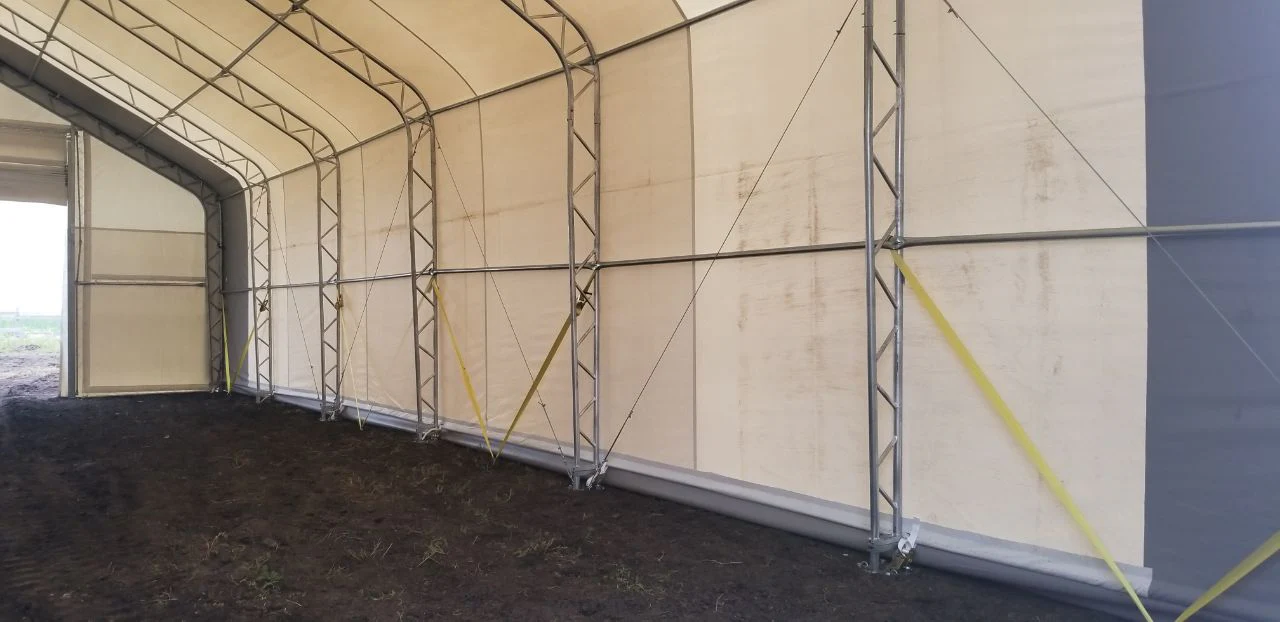

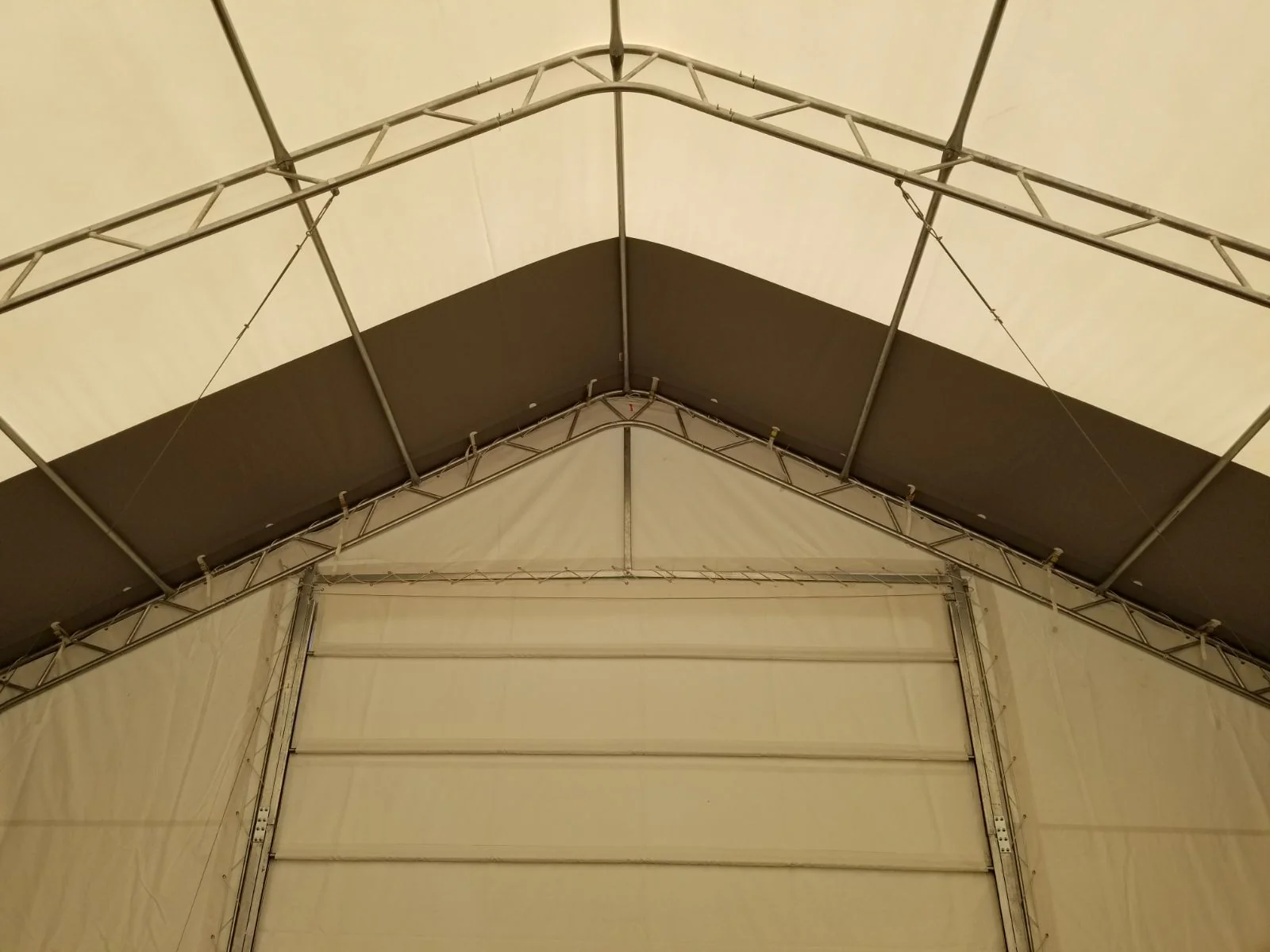

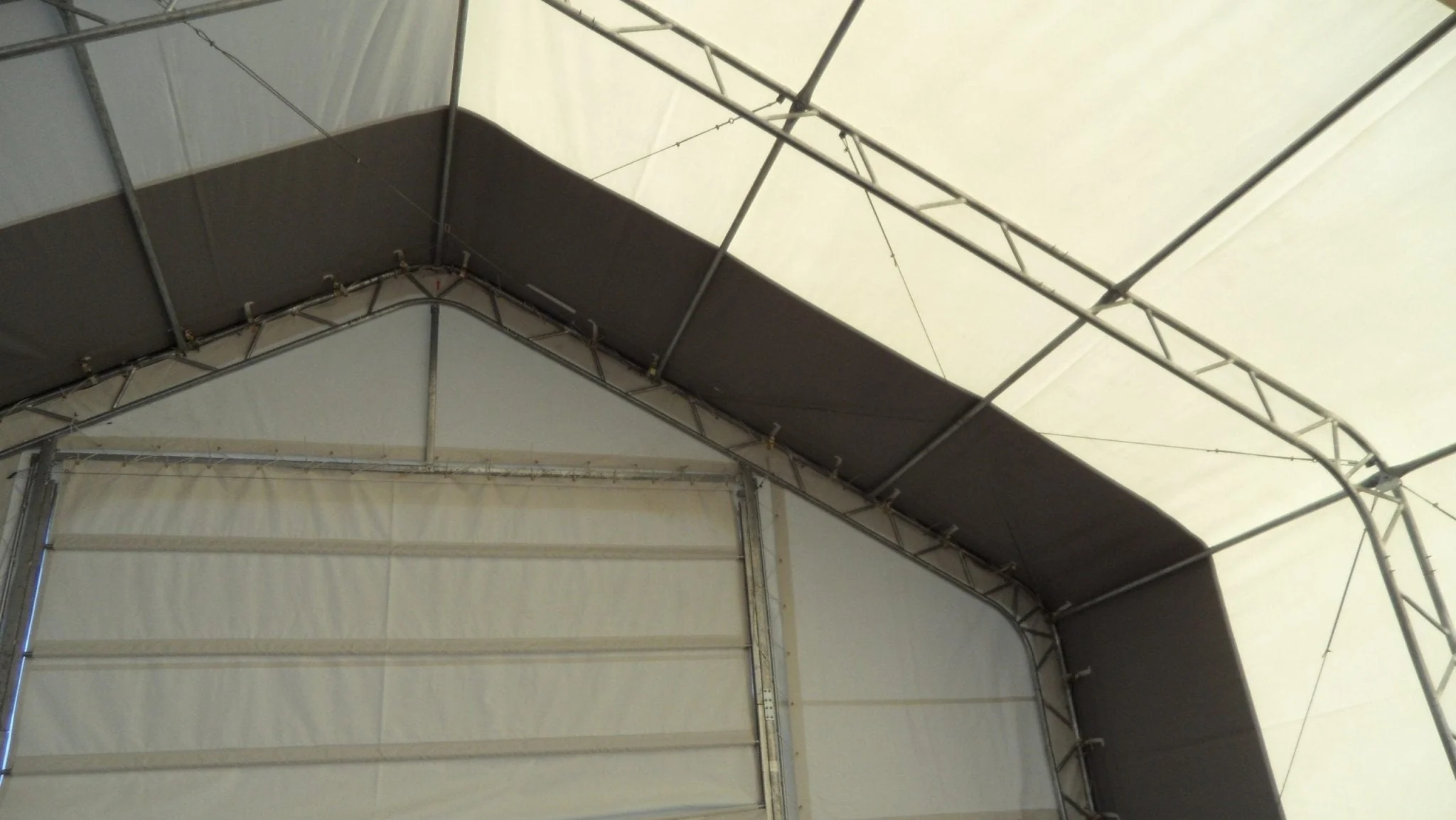

• Reinforced Double Truss Frame: Constructed with 60 mm (2 3/8”) hot-dip galvanized steel pipes in a double-truss configuration to eliminate structural flex and ensure stability under heavy snow accumulation.

• High-Density PVC Membrane: Available in standard 22.5 oz or Extreme-Duty 26.5 oz (All White) PVC, providing superior tear resistance, cold-crack protection, and flame retardancy.

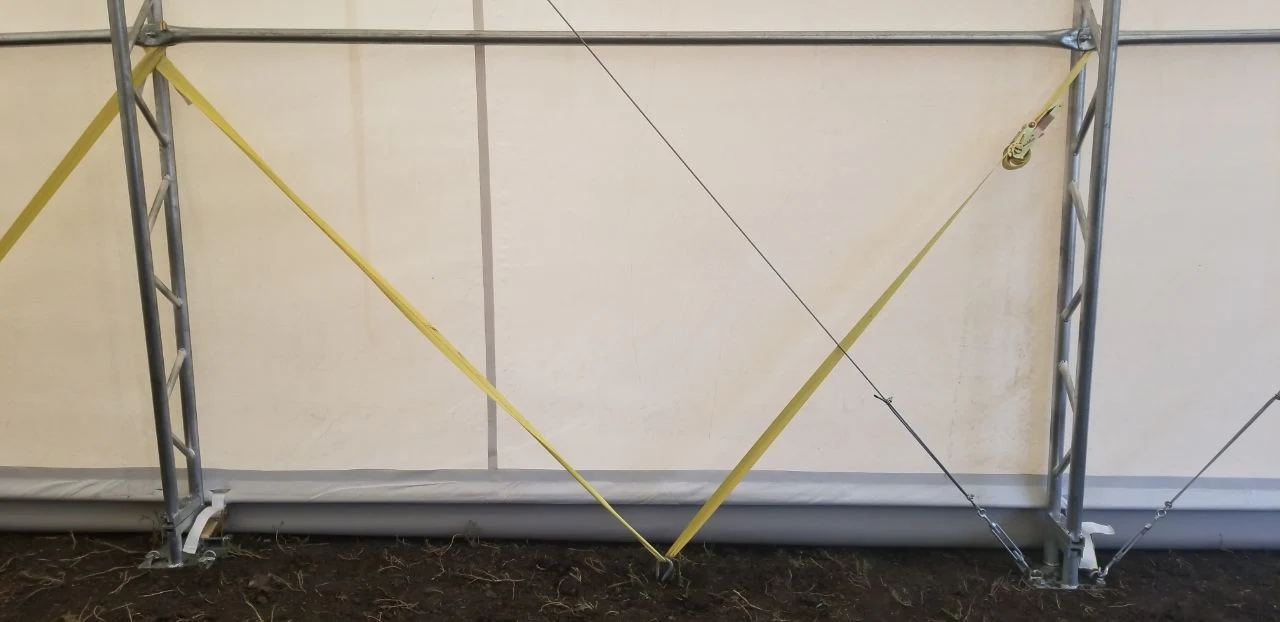

• Quad Tension Cable System: Features an integrated cable tensioning network that keeps the fabric cover taut, preventing "pocketing" from rain or snow and extending the life of the cover.

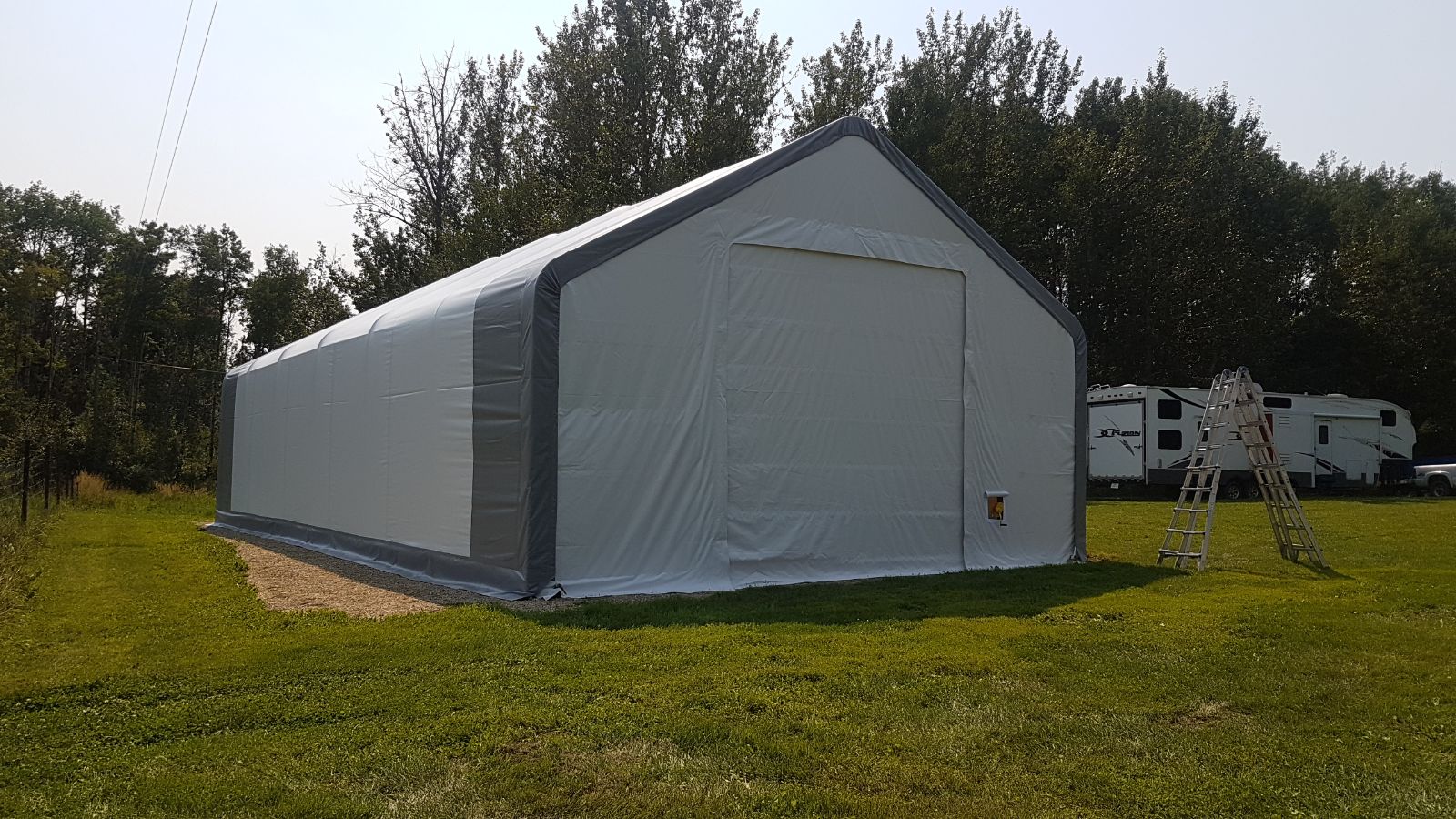

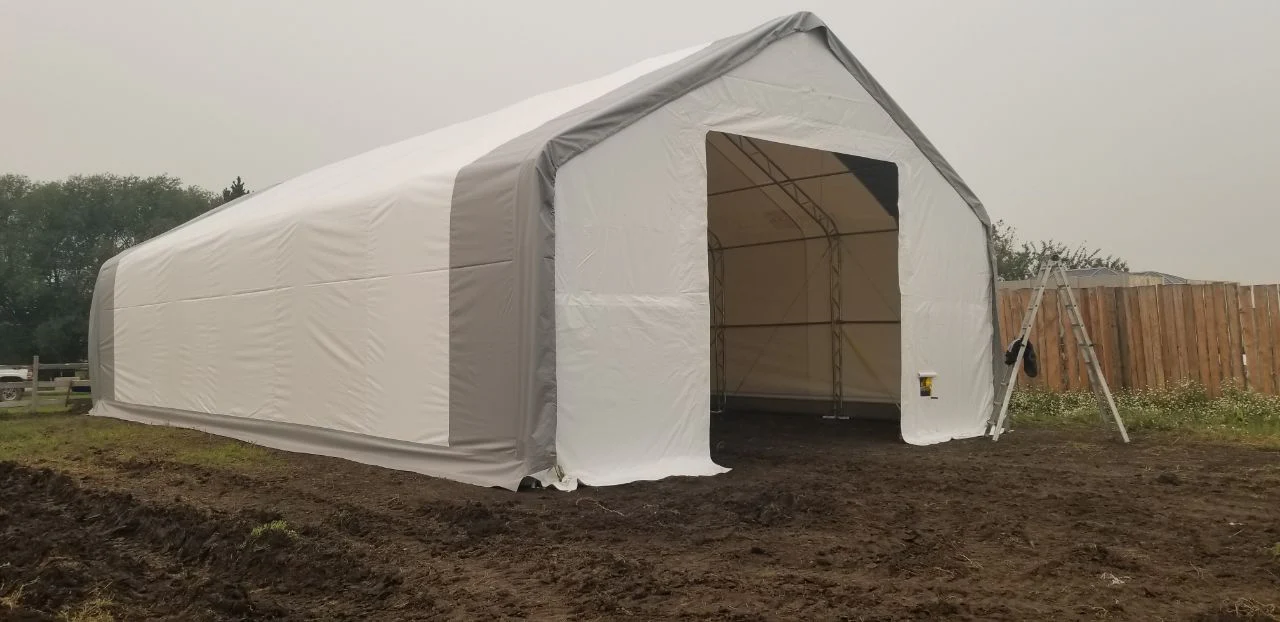

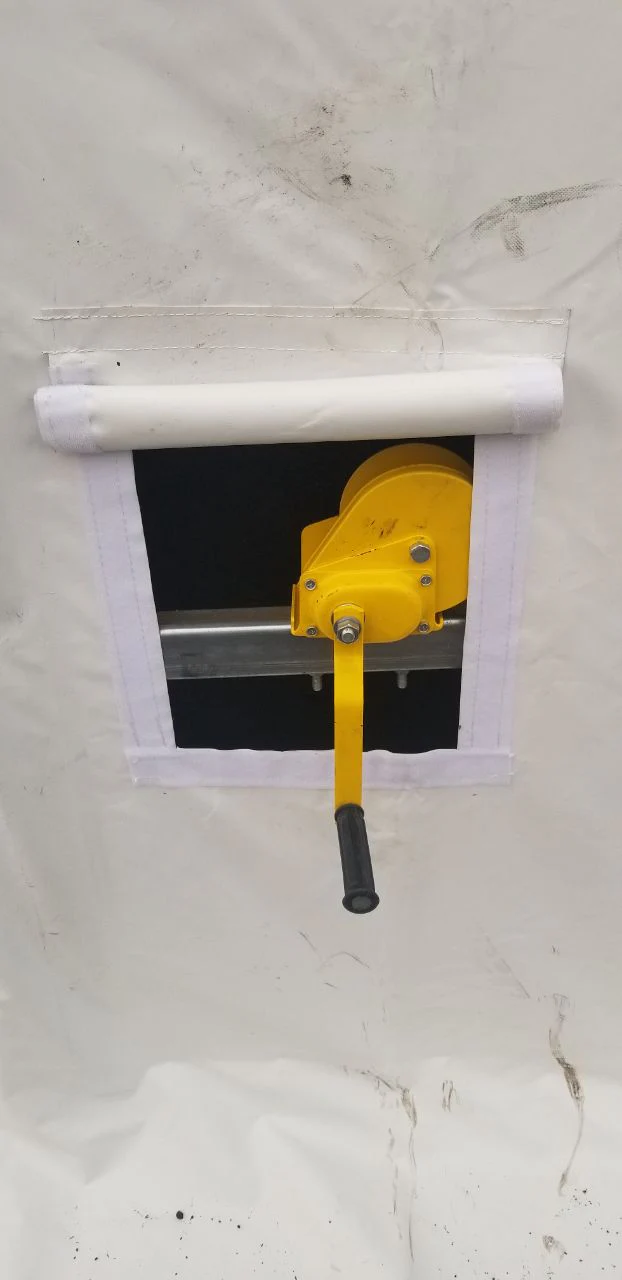

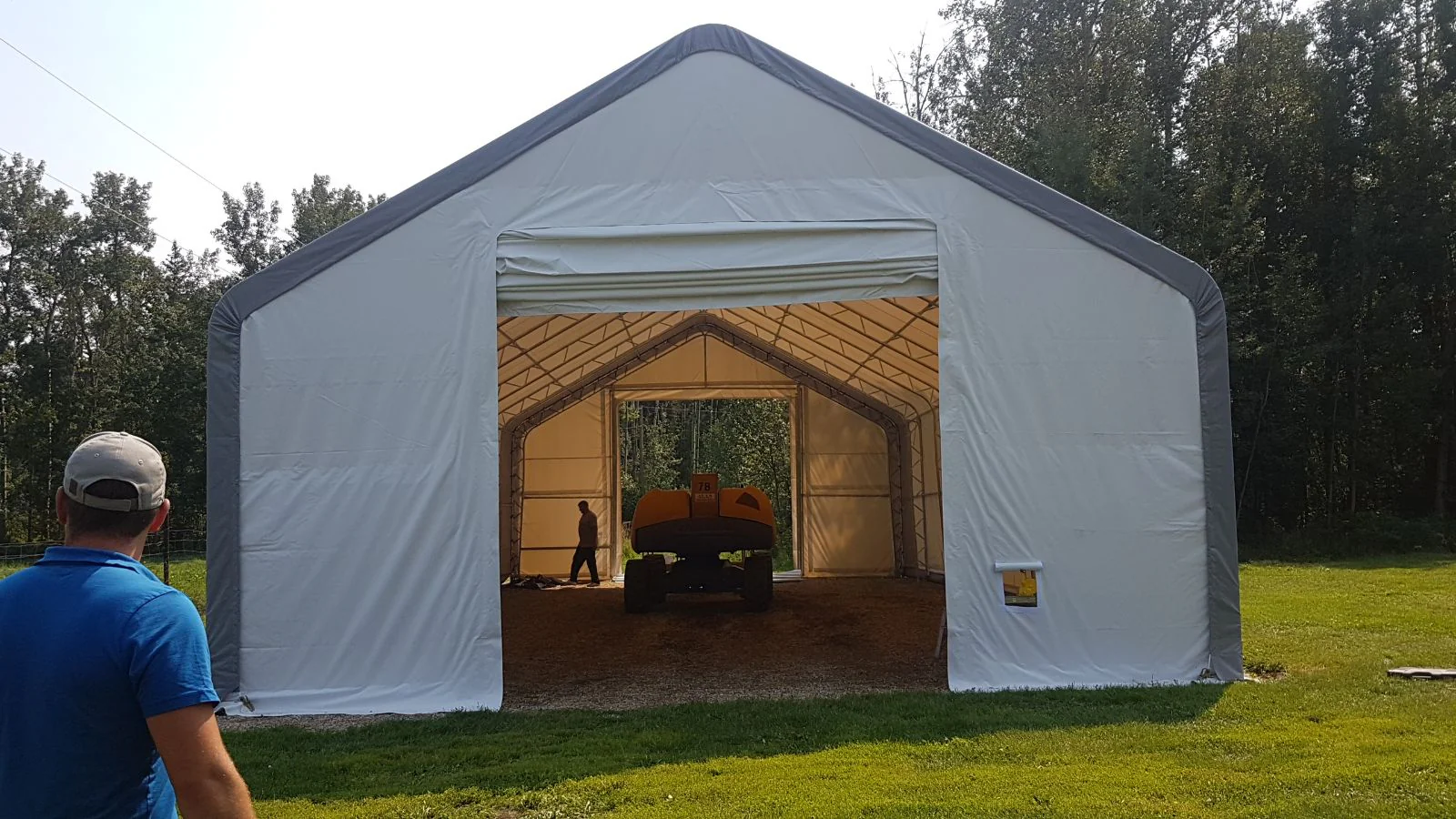

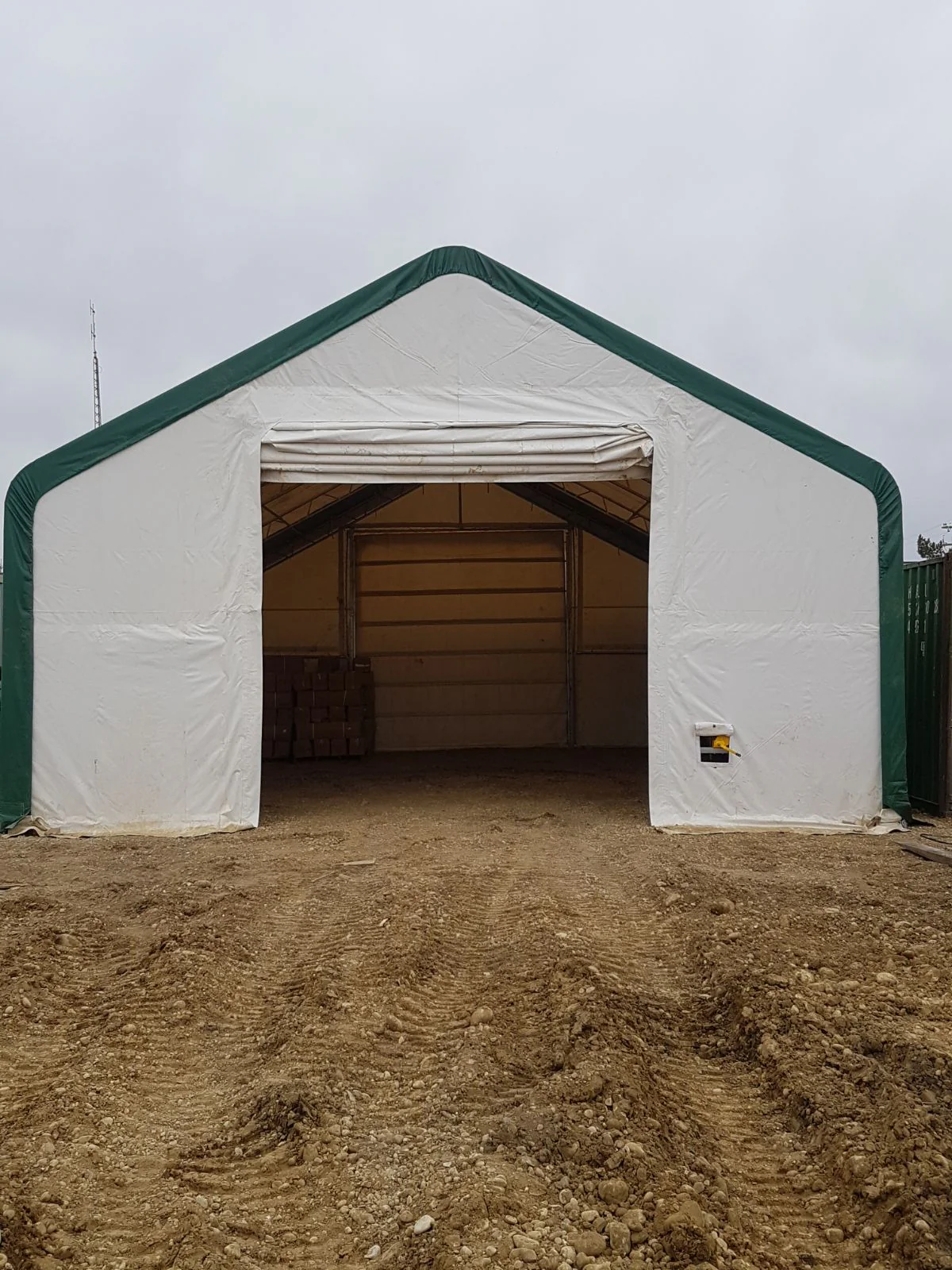

• Dual Roll-Up Drive-Through Access: Equipped with high-clearance mechanical roll-up doors (4.27 m x 3.96 m) on both the front and rear panels for seamless machinery entry and exit.

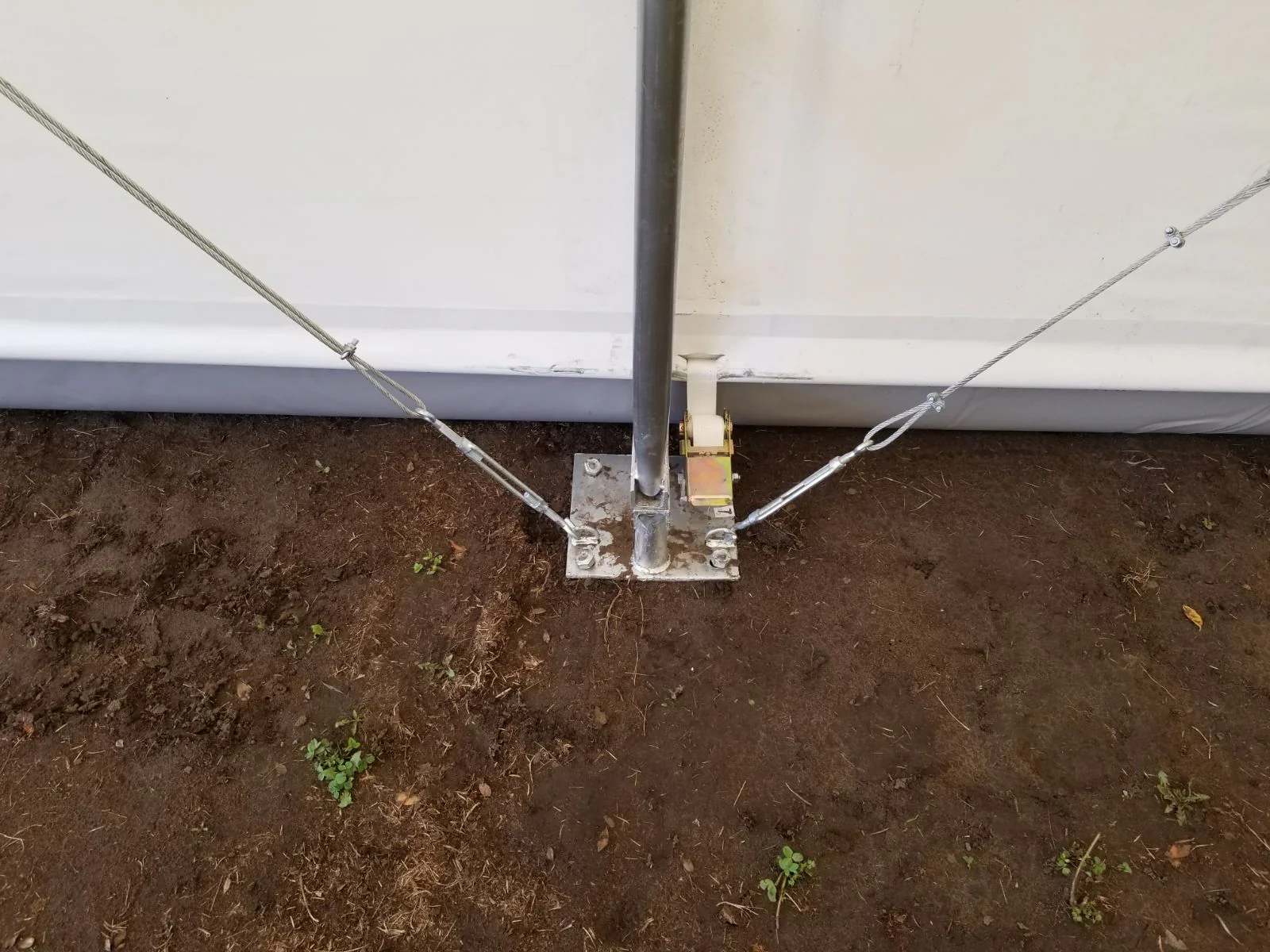

• Modular Bolt-Together Assembly: Precision-engineered arches allow for efficient on-site setup, while heavy-duty steel base plates ensure secure anchoring to dirt, gravel, or concrete.

• All-Season Structural Integrity: Designed for four-season performance, the double truss system is optimized for high-wind exposure and heavy-duty commercial service.

SPECIFICATIONS BY VARIANT

Grade	Arch Spacing	Fabric Weight	Size (Metric: L x W x H)	Size (Imperial: L x W x H)	SKU
Standard	3.05 m (10')	22.5 oz PVC	12.19 x 9.14 x 6.1 m	40 x 30 x 20 ft	P304020P
Standard	3.05 m (10')	22.5 oz PVC	18.29 x 9.14 x 6.1 m	60 x 30 x 20 ft	P306020P
Standard	3.05 m (10')	22.5 oz PVC	24.38 x 9.14 x 6.1 m	80 x 30 x 20 ft	P308020P

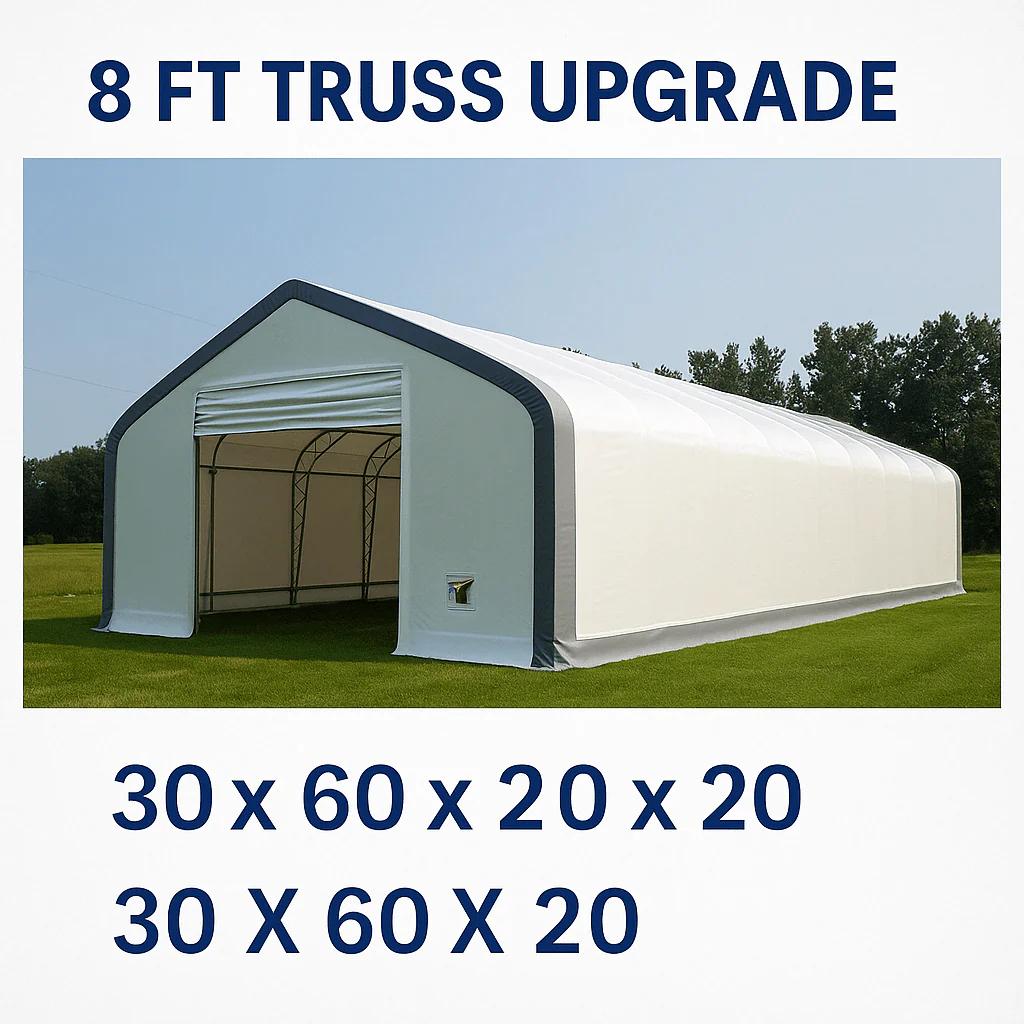

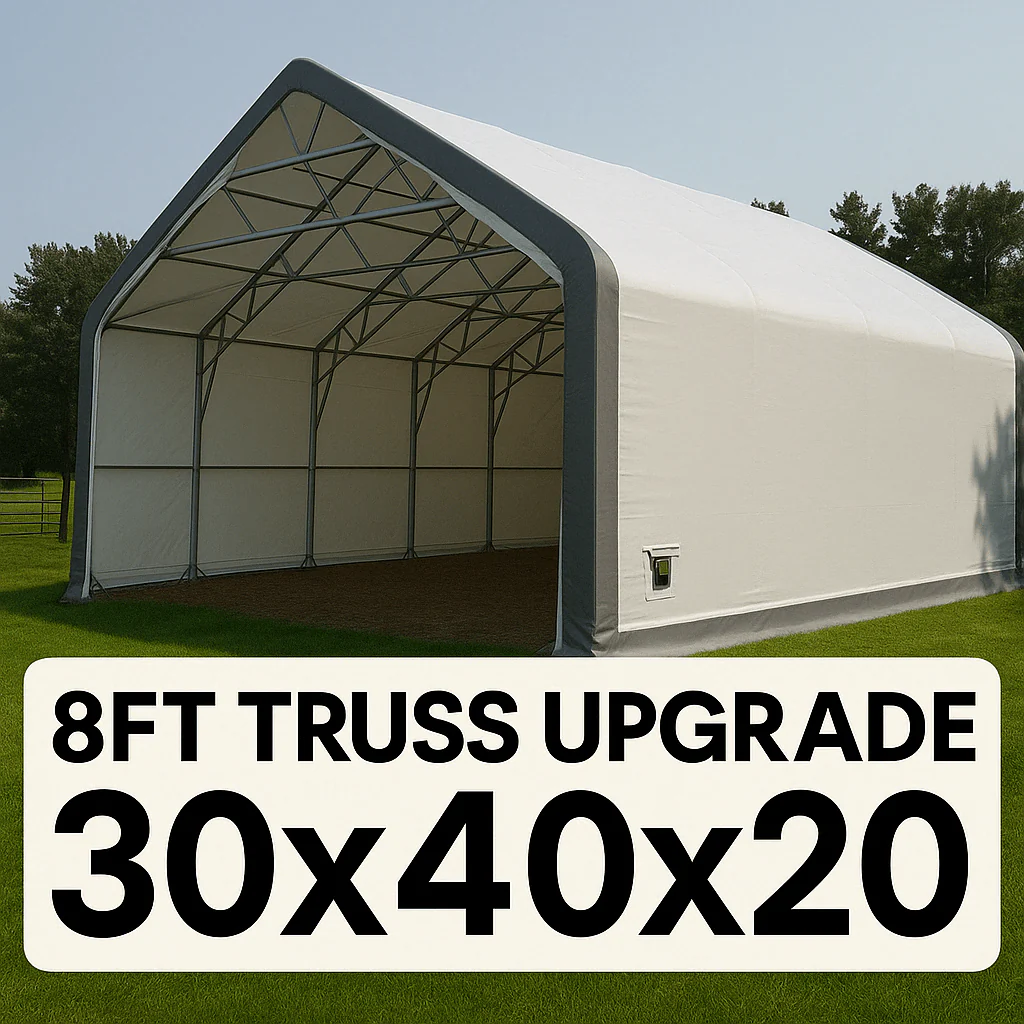

HD Upgrade	2.44 m (8')	22.5 oz PVC	12.19 x 9.14 x 6.1 m	40 x 30 x 20 ft	HD304020P
Elite HD	2.44 m (8')	26.5 oz PVC	12.19 x 9.14 x 6.1 m	40 x 30 x 20 ft	HD304020P750
Elite HD	2.44 m (8')	26.5 oz PVC	19.51 x 9.14 x 6.1 m	64 x 30 x 20 ft	HD306420P750
Elite HD	2.44 m (8')	26.5 oz PVC	24.38 x 9.14 x 6.1 m	80 x 30 x 20 ft	HD308020P750

TECHNICAL DATA

• Frame Material: 60 mm (2 3/8") Hot-dip galvanized double-truss steel

• Peak Height: 6.1 m (20')

• Door Dimensions: 4.27 m W x 3.96 m H (14' x 13')

• Fabric Properties: 100% Waterproof, UV-resistant, Frost-proof, Flame-Retardant

• Packaging (Model P308020P): 3124 x 1118 x 1422 mm (123" L x 44" W x 56" H) | Weight: ~2,000 kg (4,410 lbs)

IDEAL APPLICATIONS

• Heavy Machinery Garages – High-clearance storage for tractors, combines, and construction loaders.

• Industrial Fabrication Workshops – Creating a dry, protected environment for on-site manufacturing and assembly.

• Agricultural Supply Hubs – Storing large-scale hay volumes, feed supplies, and fertilizer.

• Commercial Fleet Logistics – Drive-through depots for trucks, trailers, and transportation equipment.
