50x40 & 50x80 FT Double Truss Fabric Storage Buildings – Heavy-Duty PVC Container Shelters

50ft Wide Double Truss Fabric Storage Buildings – Heavy-Duty PVC Container Shelters (40ft & 80ft Lengths)

OVERVIEW

Maximize your industrial storage capacity with our commercial-grade 50ft Wide PVC Container Shelters. Engineered for durability and rapid deployment, these structures feature a reinforced double truss frame and heavy-duty PVC fabric. Designed to mount directly onto standard high-cube containers (up to 6.40m / 21ft clearance), they provide a spacious, secure, and weather-resistant environment for large-scale operations in logistics, construction, and agriculture.

SYSTEM HIGHLIGHTS

• Reinforced Double Truss Frame: Built with 60mm (2 3/8") diameter, 2mm (14-gauge) galvanized steel tubing for superior wind and snow load resistance.

• Heavy-Duty 650g/m² (22oz) PVC Fabric: UV-resistant, 100% waterproof, and flame-retardant material designed to withstand extreme temperatures from -50°C to +50°C.

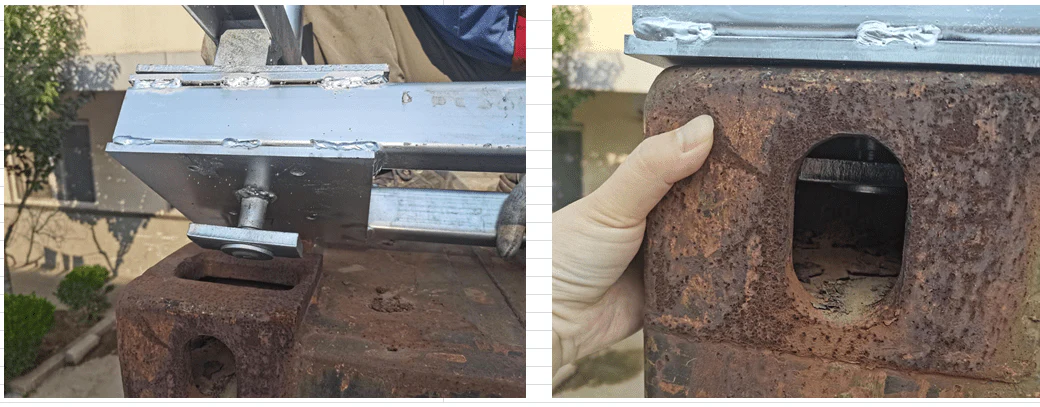

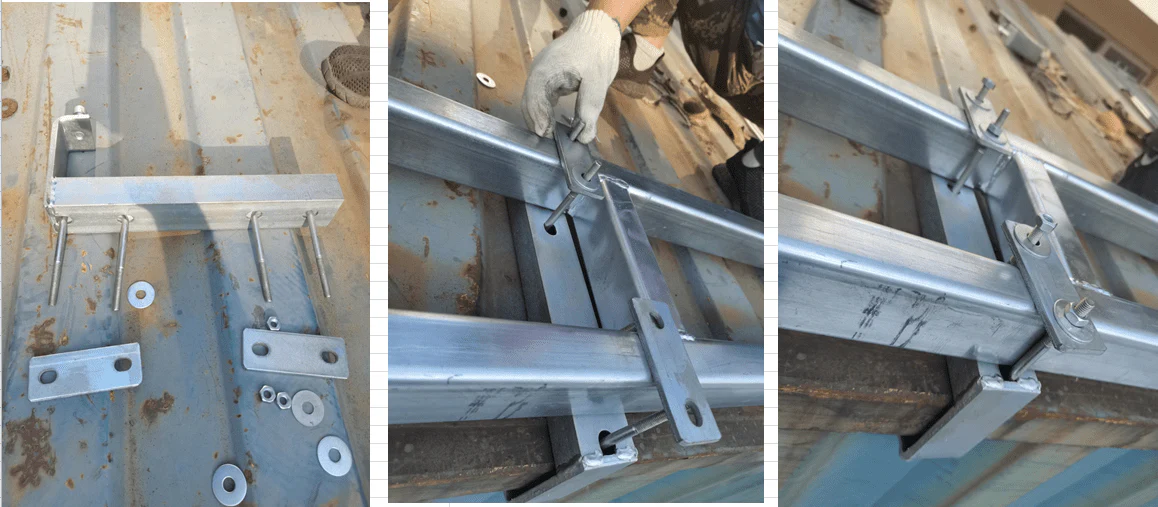

• Patented No-Weld Clamping System: Enables fast, tool-free installation directly onto shipping containers without the need for drilling or welding.

• Quad Tensioning Technology: Ensures the fabric remains taut and stable year-round, preventing water pooling and reducing wind noise.

• Scalable Storage Solution: Creates massive clear-span interiors ideal for heavy machinery, bulk materials, or vehicle fleets.

SPECIFICATIONS & DIMENSIONS

Feature	40ft Length Model	80ft Length Model
Dimensions (W x L x H)	15.24 x 12.19 x 3.66 m (50x40x12 ft)	15.24 x 24.38 x 3.66 m (50x80x12 ft)
Max Clearance (on Containers)	Approx. 6.40 m (21 ft)	Approx. 6.40 m (21 ft)
Frame Type	Double Truss Galvanized Steel	Double Truss Galvanized Steel
Fabric Weight	650g/m² (22oz) PVC	650g/m² (22oz) PVC
Tube Diameter	60 mm (2 3/8")	60 mm (2 3/8")
Installation Method	Clamp-on (No Welding Required)	Clamp-on (No Welding Required)

IDEAL APPLICATIONS

• Construction Sites – On-site equipment workshops and material storage.

• Agricultural Operations – Hay storage, livestock shelters, or machinery housing.

• Logistics & Warehousing – Rapid expansion of covered pallet and inventory space.

• Marine & Industrial – Temporary shipyards or vehicle maintenance bays.
