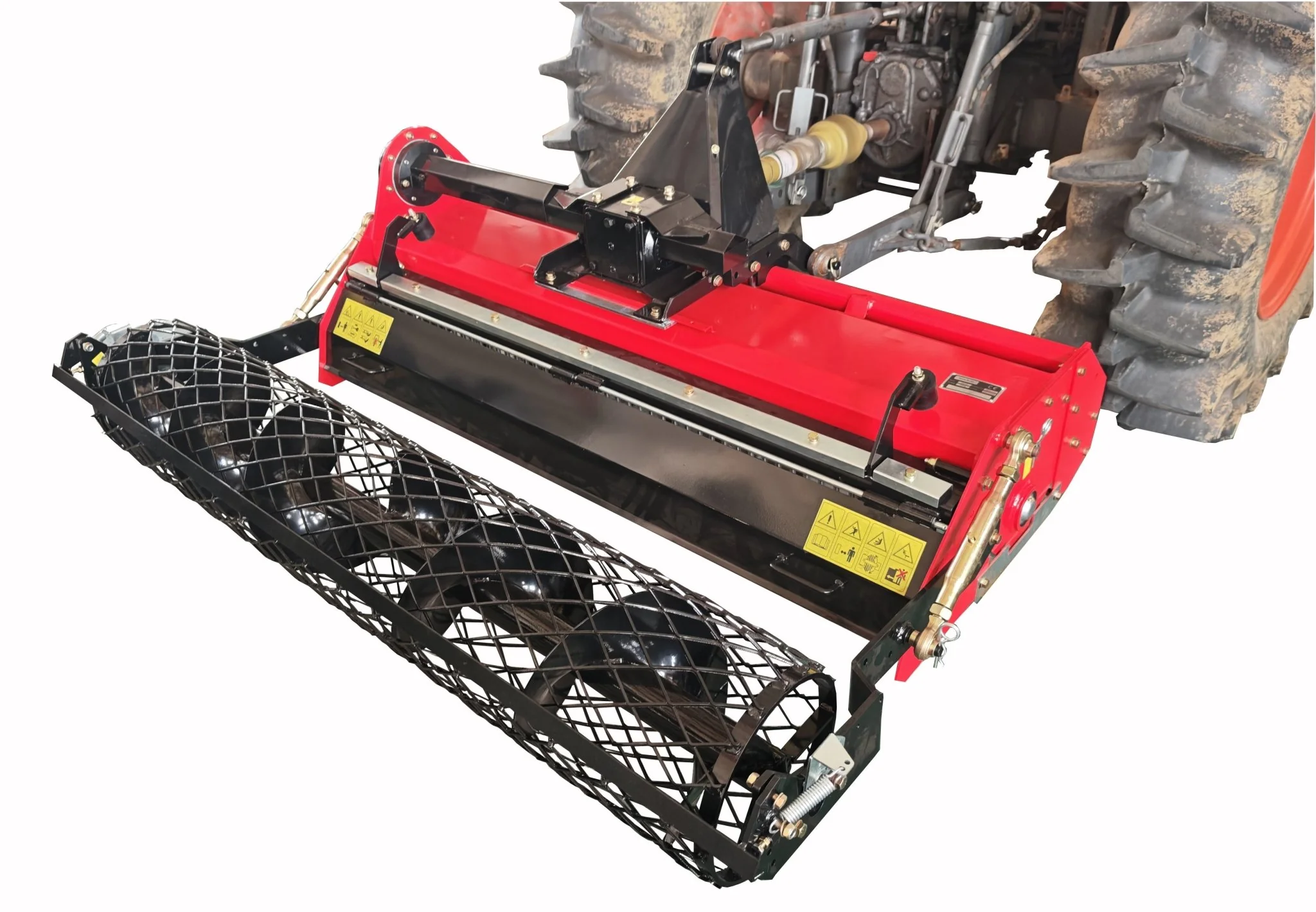

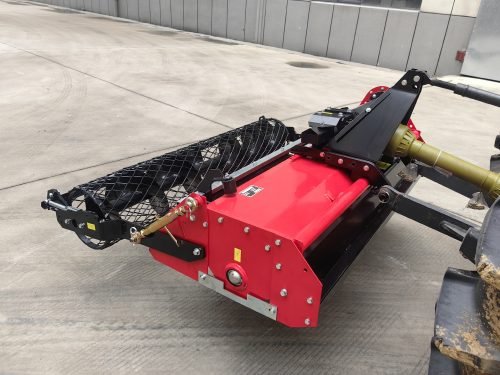

Rotary Stone Burier Tiller – 45" & 60" Models with Optional Seeding Box (SB125115 / SB165115)

SB125115 / SB165115 Rotary Stone Burier Tiller – 45" & 60" Models with Optional Seeding Box

OVERVIEW

Prepare your soil like a pro with the Rotary Stone Burier Tiller, the ultimate solution for high-performance landscaping, horticulture, and seedbed preparation. This heavy-duty attachment is designed to bury rocks, debris, and soil clumps beneath a finely tilled layer of topsoil, leaving a perfectly smooth surface ready for immediate planting or sod installation. For maximum efficiency, equip the optional Precision Seeding Box to combine tilling, leveling, and seeding into a single, time-saving pass.

SYSTEM HIGHLIGHTS

• Rock Burial Technology: Specialized rotor rotation buries stones and heavy debris deep into the ground while filtering fine, clean soil to the surface.

• Integrated Rear Roller: A heavy mesh roller stabilizes the machine, providing immediate leveling and compaction for a professional, seed-ready finish.

• One-Pass Seeding (Optional): The integrated seeding box allows for precise seed distribution directly behind the tilling rotor, doubling productivity and ensuring perfect soil-to-seed contact.

• Industrial Durability: Features a reinforced steel frame and robust L-shaped blades (up to 32 units) engineered for consistent performance in compacted and demanding soils.

• Precision Depth Control: Easily adjust tilling depth up to 127mm (5") via the integrated side skid shoes to suit specific project requirements.

TILLER SPECIFICATIONS

Feature	SB125115 (45" Model)	SB165115 (60" Model)
Working Width	1143mm (45")	1524mm (60")
Tilling Depth	Up to 120mm (4.7")	Up to 127mm (5")
Tractor Requirement	25–30HP	35–50HP
Blade Count	20 L-Shaped Blades	32 L-Shaped Blades
Weight	311kg (685lbs)	~340kg (750lbs)

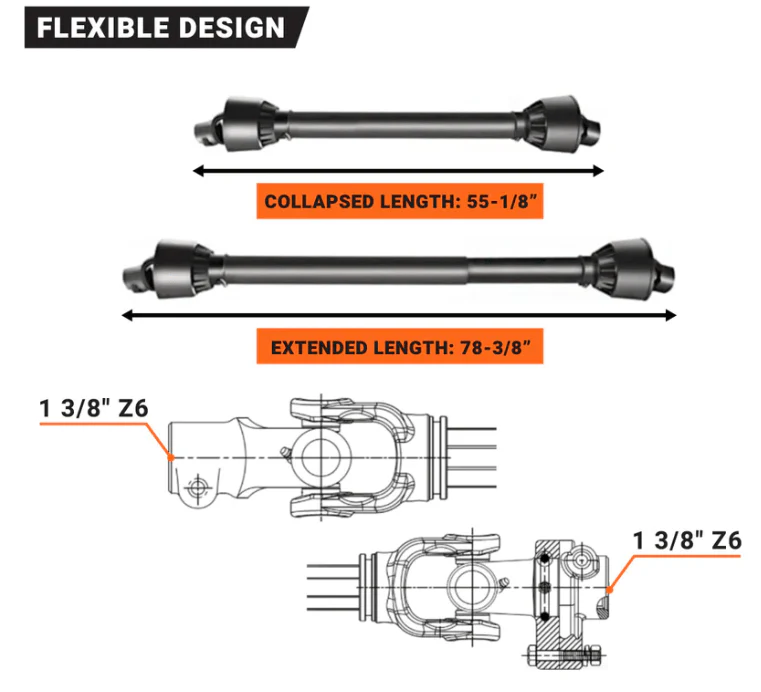

PTO Speed	540RPM (Cat 1 Hitch)	540RPM (Cat 1 Hitch)

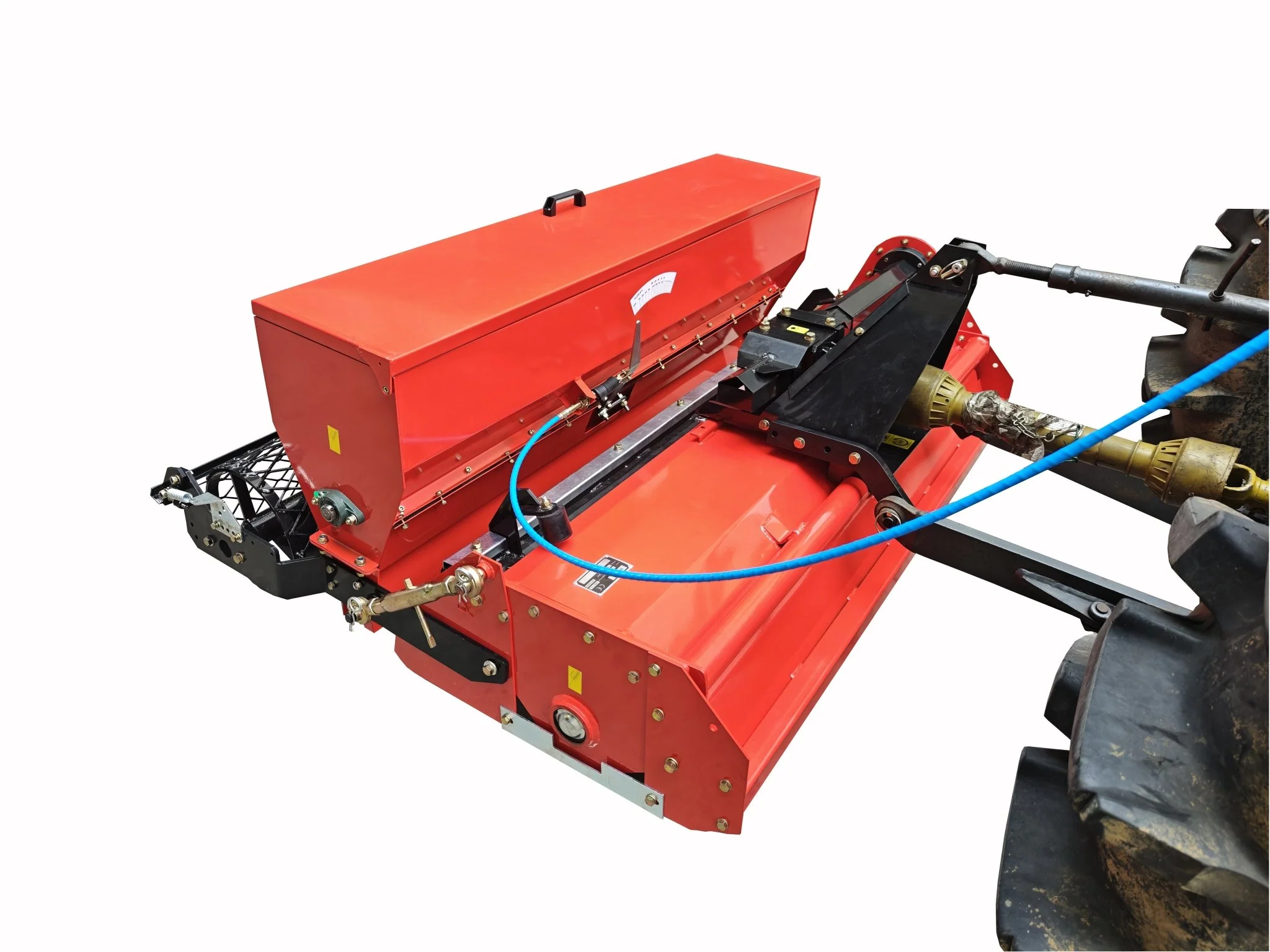

OPTIONAL SEEDING BOX SPECIFICATIONS

Upgrade your tiller to a full-service seeder with these model-specific attachments:

• SBZ125 (for 45" Tiller): 125L (33gal) Volume | 1250mm (49") Seeding Width | 90kg (198lbs)

• SBZ165 (for 60" Tiller): 165L (44gal) Volume | 1650mm (65") Seeding Width | 111kg (245lbs)

• Features: Adjustable seed rates, heavy-duty hopper, and seamless integration with the main frame.

IDEAL APPLICATIONS

Sod Farming & Turf Installation - Nursery & Horticulture - Seedbed Preparation - Landscape Reclamation - Vineyard & Orchard Maintenance
