1.5 to 3.0 Cubic Yard Forklift Dump Hoppers – Standard & Heavy-Duty Tip Bin Models

Industrial Forklift Dump Hoppers – 1.15 to 2.29 m³ Standard & Heavy-Duty Tip Bins

Automated Bumper-Release Tipping with Reinforced All-Steel Construction

OVERVIEW

Streamline your material handling and waste management with our Professional Forklift Dump Hoppers. Engineered for the rigorous demands of industrial warehouses, construction sites, and recycling centers, these rugged hoppers feature a precision-engineered Auto-Reset Bumper System. Designed to trigger a controlled tip upon contact with the waste container and automatically reset to an upright, locked position, these units eliminate the need for manual intervention, maximizing operator safety and workflow efficiency.

SYSTEM HIGHLIGHTS

• Automated Bumper-Release Mechanism: Features a specialized bumper trigger that initiates the tipping cycle upon surface contact, allowing for hands-free dumping from the forklift seat.

• Integrated Auto-Upright Reset: Once emptied, the hopper’s geometry and balanced pivot points allow it to reset and lock into the upright position automatically.

• Heavy-Duty Reinforced Steel Frame: Constructed from high-strength industrial steel with precision welding and a durable powder-coated finish for maximum resistance to abrasion and impact.

• Standard vs. Heavy-Duty Variants:

  • Standard Duty (Black Finish): Optimized for general debris and lighter bulk materials using a 3 mm (10-gauge) tipping plate.

  • Heavy Duty (Red Finish): Engineered for high-volume scrap, metal, and heavy masonry with a reinforced 4.5 mm (7-gauge) tipping plate.

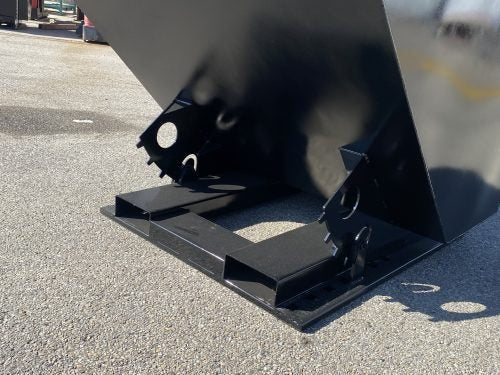

• Universal Forklift Compatibility: Equipped with standard integrated fork pockets measuring 241 mm x 91 mm (9.5" x 3.6"), ensuring a secure fit for most industrial lift trucks.

SPECIFICATIONS BY MODEL SIZE

Capacity (Metric)	Capacity (Imperial)	Duty Rating	Tipping Plate Thickness	Side Plate Thickness
1.15 m³	1.5 Cubic Yards	Standard / Heavy	3.0 / 4.5 mm	2.0 / 3.0 mm
1.53 m³	2.0 Cubic Yards	Standard / Heavy	3.0 / 4.5 mm	2.0 / 3.0 mm
1.91 m³	2.5 Cubic Yards	Standard / Heavy	3.0 / 4.5 mm	2.0 / 3.0 mm
2.29 m³	3.0 Cubic Yards	Standard / Heavy	3.0 / 4.5 mm	2.0 / 3.0 mm

TECHNICAL DATA

• Finish: High-visibility industrial powder coating (Red for HD / Black for SD)

• Mechanism: Bumper-triggered gravity tip with auto-lock reset

• Fork Pocket Dimensions: 241 mm x 91 mm (W x H)

• Build Material: Industrial-grade carbon steel

IDEAL APPLICATIONS

• Warehousing & Logistics – Efficient handling of bulk packaging and shipping waste.

• Construction & Demolition – Safe disposal of heavy debris, concrete, and structural scrap.

• Manufacturing & Scrap Yards – High-frequency dumping of metal shavings and industrial offcuts.

• Recycling Centers – Streamlined sorting and bulk transfer of paper, plastic, and glass.
