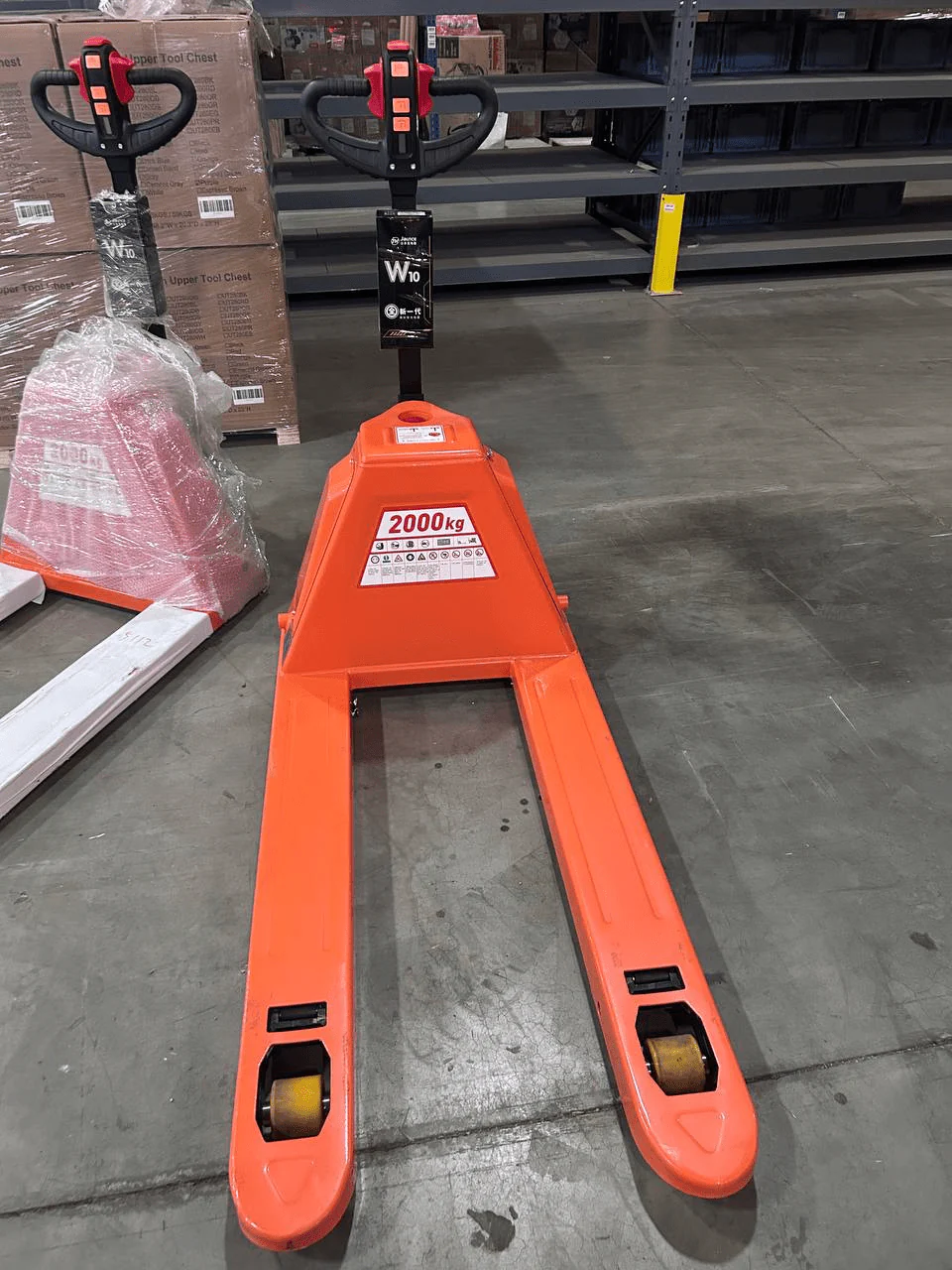

Full Electric Pallet Truck 2000kg Walkie Type 685mm Fork Width Warehouse Jack NPT20C

This full electric pallet truck is designed for efficient material handling in warehouses, distribution centers, and industrial facilities. With a 2000 kg (4,400 lb) rated capacity and 685 mm fork spacing, it is ideal for handling standard pallets with stability and precision.

Powered by a 48V electric system with brushless drive motor and electromagnetic braking, this walkie-style pallet jack delivers smooth operation, low noise, and reliable performance during extended work cycles.

Key Features

• 2000 kg / 4,400 lb Rated Capacity

• 685 mm Fork Outside Width – Fits standard pallets

• Full Electric Drive & Lift

• Walkie-Style Operation for tight warehouse aisles

• Brushless DC Drive Motor for efficiency and durability

• Electromagnetic Braking System for safe operation

• Low Noise Design (≤70 dB)

• PU Wheels for smooth indoor movement

Specifications

• Operation Type: Walkie style

• Rated Capacity: 2000 kg (4,400 lb)

• Load Center Distance: 500 mm

• Fork Outside Distance: 27 in (685 mm)

• Fork Size: 0.24 × 6.3 × 45.3 in (6 × 160 × 1150 mm)

• Lift Height: 4.1 in (105 mm)

• Lowered Fork Height: 3.2 in (82 ± 2 mm)

• Overall Length: 63.8 in (1620 mm)

• Turning Radius: 58.3 in (1480 mm)

• Driving Speed (Laden/Unladen): 2.5 / 2.8 mph (4 / 4.5 km/h)

• Lifting Speed (Laden/Unladen): 20 / 25 mm/s

• Lowering Speed (Laden/Unladen): 56 / 46 mm/s

• Wheel Material: PU

• Drive Motor: DC 48V / 1.0 kW (Brushless)

• Pump Motor: DC 48V / 0.8 kW

• Battery: 48V 25Ah lead-acid

• Continuous Work Time: ≥4 hours

• Noise Level: ≤70 dB

In The Box

• Full electric pallet truck (685 mm fork width)

• Integrated battery system

• Built-in charger

• Operator controls

Ideal For

• Warehouses

• Distribution centers

• Manufacturing facilities

• Retail backrooms

• Palletized material handling
