Professional Heavy-Duty UHMWPE Outrigger Pads – Square & Round Series

Ultra-High Molecular Weight Polyethylene Stabilizer Mats for Cranes, RVs, and Industrial Rigging

OVERVIEW

Maximize job site safety and equipment stability with our Professional Heavy-Duty UHMWPE Outrigger Pads. Engineered for extreme load-bearing applications, these stabilizer mats are manufactured from Ultra-High Molecular Weight Polyethylene (UHMWPE)—a high-tech polymer that delivers superior compressive strength while weighing a fraction of traditional steel or hardwood pads. Completely impervious to water, hydraulic oil, and corrosive chemicals, they will never splinter, rot, or delaminate under pressure. Available in both square and round configurations ranging from 381 mm (15") to 1067 mm (42"), these outrigger pads provide the essential ground-traction and load distribution required for commercial crane trucks, heavy utility vehicles, and Class-A RVs.

SYSTEM HIGHLIGHTS

• Premium UHMWPE Construction: Offers an unparalleled strength-to-weight ratio. It is significantly lighter than aluminum or steel while outperforming traditional wood pads in longevity and impact resistance.

• Anti-Slip Surface Texture: Engineered with a specialized friction surface to enhance ground traction, preventing hazardous equipment slippage on mud, gravel, or wet asphalt.

• Total Environmental Resistance: The closed-cell polymer structure absorbs zero moisture, meaning the pads will not crack in freezing temperatures, warp in extreme heat, or degrade when exposed to industrial chemicals and oils.

• Ergonomic Portability: Select models are equipped with integrated high-visibility rope handles or machined hand-holds, allowing operators to easily position and retrieve the pads without heavy lifting equipment.

• Memory Recovery: The flexible nature of UHMWPE allows the pad to slightly bow under extreme localized pressure and instantly return to its original flat shape once the load is removed.

SPECIFICATIONS BY VARIANT

SKU	Pad Shape	Dimensions (Metric)	Dimensions (Imperial)
15151	Square	381 x 381 x 25 mm	15" x 15" x 1"
CPR18S	Square	457 x 457 x 38 mm	18" x 18" x 1.5"
CP20R	Round	508 x 25 mm	20" x 1"
CP32R	Round	813 x 51 mm	32" x 2"
CP42R	Round	1067 x 51 mm	42" x 2"

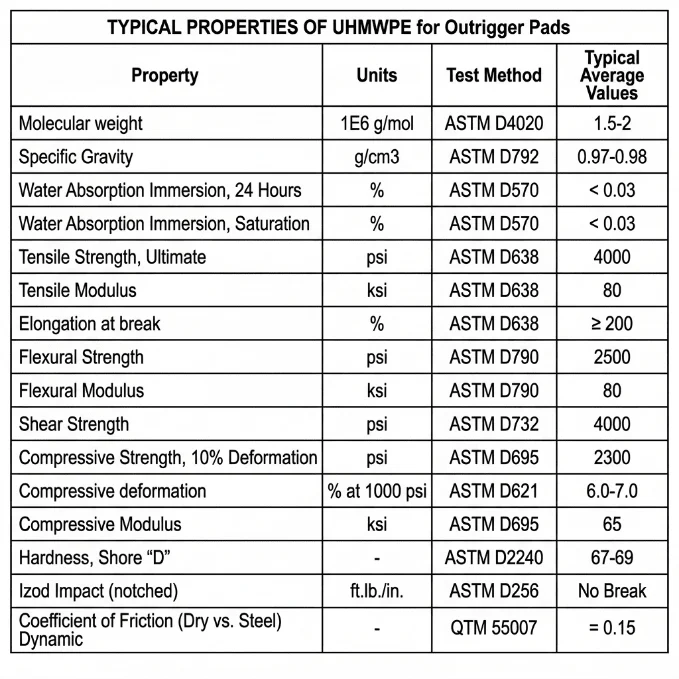

TECHNICAL DATA

• Material: Ultra-High Molecular Weight Polyethylene (UHMWPE)

• Chemical Resistance: Oil, Gas, Hydraulic Fluid, and Acid Resistant

• Water Absorption: 0% (Will not rot or waterlog)

• Mobility: Integrated Handling Loops / Cutouts

IDEAL APPLICATIONS

• Commercial Crane Operations – Providing a stable footprint and preventing outriggers from punching through soft soil or damaging finished asphalt.

• Utility & Bucket Trucks – Rapid deployment stabilization for electrical line workers and tree trimming services.

• RV & Motorhome Stabilization – Preventing leveling jacks from sinking into muddy campground pitches.

• Industrial Rigging & Dollies – Distributing the weight of heavy machinery transfers across fragile factory floors.
