Hydraulic Pipe & Tubing Bender – 12 & 16 Ton with 6 & 8 Dies | Heavy-Duty Exhaust Bender

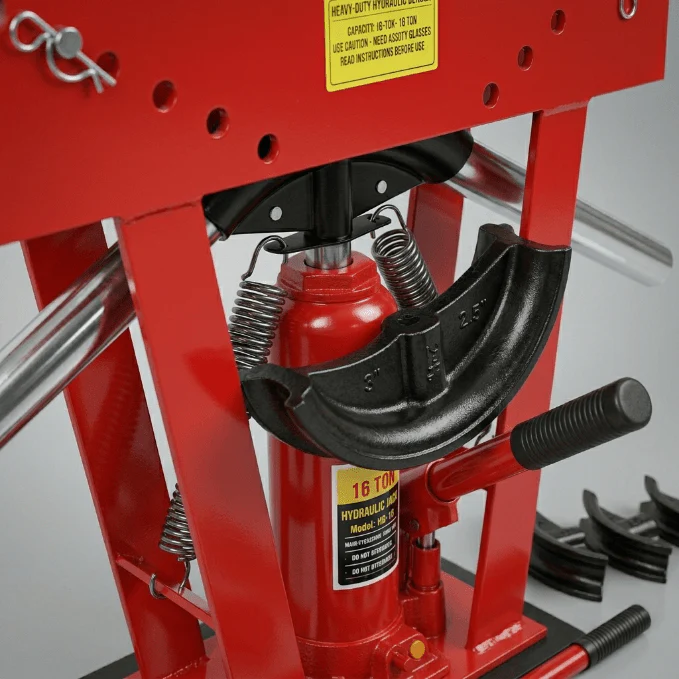

Heavy-Duty Hydraulic Pipe and Tubing Bender

Commercial Exhaust and Fabrication Bender - 10886.2 kg to 14515.0 kg Capacities

OVERVIEW

Tackle precision pipe bending and custom metal fabrication with our Professional Heavy-Duty Hydraulic Pipe and Tubing Bender. Engineered for automotive mechanics, industrial fabrication shops, and serious DIY metalworkers, this single-piston hydraulic system delivers smooth, controlled bends on steel exhaust tubing and black pipe. Available in two powerful configurations - a 10886.2 kg (12 Ton) model equipped with 6 precision dies, and a massive 14515.0 kg (16 Ton) model equipped with 8 precision dies for larger-diameter pipes. Constructed on a stable, powder-coated steel frame with built-in return springs for rapid ram retraction, this versatile bender operates effortlessly in both horizontal and vertical orientations to perfectly adapt to your workspace.

SYSTEM HIGHLIGHTS

• Smooth Hydraulic Force: Driven by a precision single-piston hydraulic ram that provides controlled, kink-free bending power for thick-walled steel and iron pipes.

• Comprehensive Die Matrix: Arrives complete with heavy-duty bending dies. The 12-Ton model includes 6 standard dies (up to 2"), while the 16-Ton model expands the kit to 8 dies (handling up to 3" diameter pipes).

• Rapid Ram Retraction: Features heavy-duty, built-in return springs that instantly retract the hydraulic piston once the pressure release valve is opened, drastically speeding up repetitive fabrication tasks.

• Dual-Orientation Capability: The rugged, wide-stance base is engineered to be used either vertically on the shop floor or horizontally on a sturdy workbench to accommodate long sections of exhaust piping.

• Powder-Coated Steel Architecture: Forged from impact-resistant steel and treated with a highly durable powder-coated finish to prevent rust and withstand abrasive industrial environments.

SPECIFICATIONS BY VARIANT

SKU	Model Designation	Included Dies	Max Capacity (Metric / Imperial)
HP9121	Hydraulic Pipe Bender (12 Ton)	6-Piece Set	10886.2 kg (12 Tons)
16HB	Hydraulic Pipe Bender (16 Ton)	8-Piece Set	14515.0 kg (16 Tons)

TECHNICAL DATA

• Operation Type: Single-Piston Hydraulic

• Frame Material: Powder-Coated Steel

• Working Orientations: Horizontal & Vertical

• Ram Retraction: Heavy-Duty Return Springs

• 12-Ton Die Sizes (6 Pieces): 12.7 mm (1/2"), 19.1 mm (3/4"), 25.4 mm (1"), 31.8 mm (1-1/4"), 38.1 mm (1-1/2"), 50.8 mm (2")

• 16-Ton Die Sizes (8 Pieces): Includes all 12-Ton sizes plus 63.5 mm (2-1/2") and 76.2 mm (3")

IDEAL APPLICATIONS

• Automotive Customization: Bending raw steel tubing to fabricate custom exhaust systems, headers, and catalytic converter routing.

• Off-Road Fabrication: Creating heavy-duty roll cages, brush guards, and rock sliders for 4x4 overland vehicles.

• Industrial Plumbing: Bending thick black iron pipe for commercial gas lines or high-pressure fluid transfer systems.
