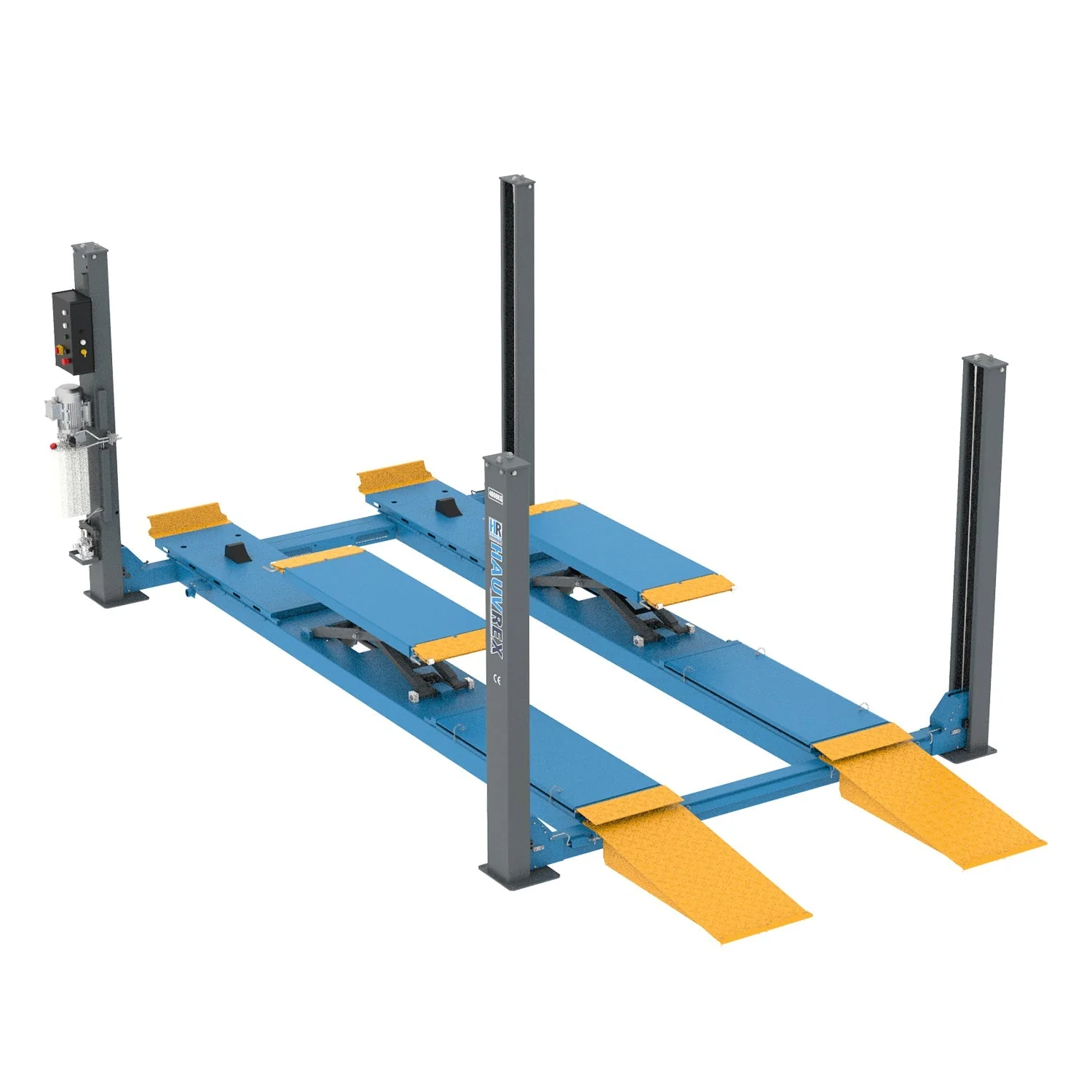

New 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control HTL4340X

New 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control HTL4340X

HFL 4340X 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control Car hoist Car lift Vehicle Lift

🧰 Technical Specifications:

  • Lifting Capacity: 4,000 kg (8,818 lbs)
  • Min. Height: 235 mm (9.25")
  • Max. Lifting Height: 1,900 mm (74.8")
  • Overall Length: 5,552 mm (218.7")
  • Overall Width: 3,422 mm (134.7")
  • Runway Length: 5,000 mm (196.9")
  • Runway Width: 560 mm (22")
  • Width Between Posts: 2,924 mm (115.1")
  • Width Between Platforms: 905 mm (35.6")
  • Lifting/Lowering Time: 55 sec / 45 sec
  • Motor Power: 2.2 kW (3 HP)
  • Power Supply: 220V / 60Hz / 1Ph

✔️ Technical Features:

  • Built-in wheel-free scissor lift for tire and brake access
  • Front recesses and side slip plates for precision alignment work

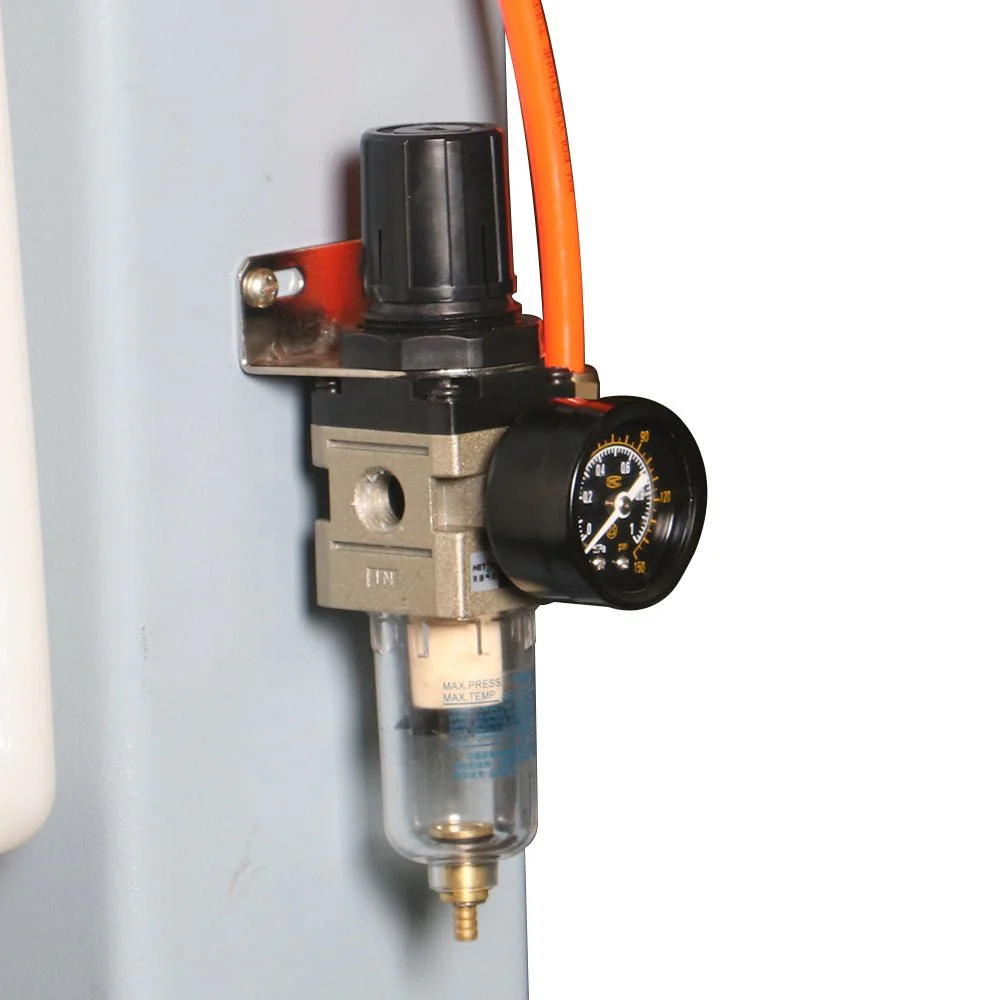

  • Pneumatic safety lock release for convenience and security
  • 24V low-voltage control system enhances operator safety

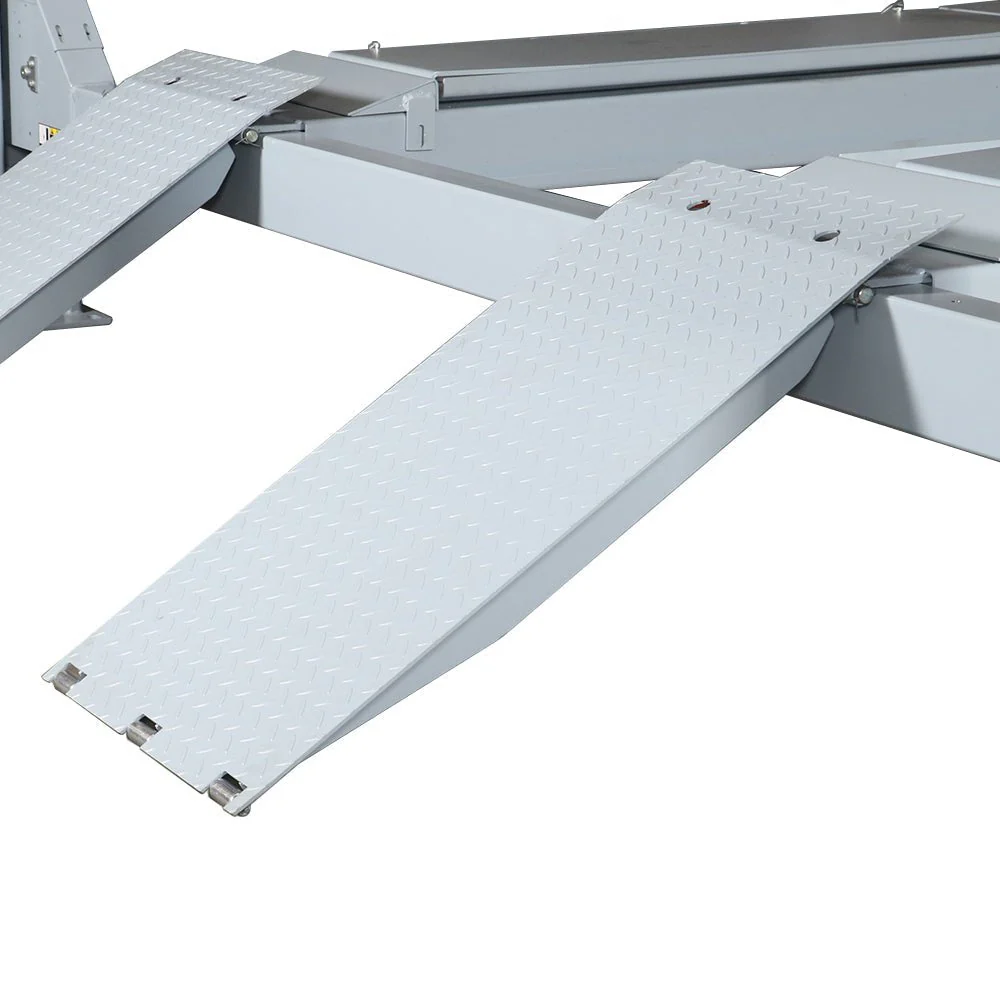

  • Non-skid drive-on ramps for added safety and stability

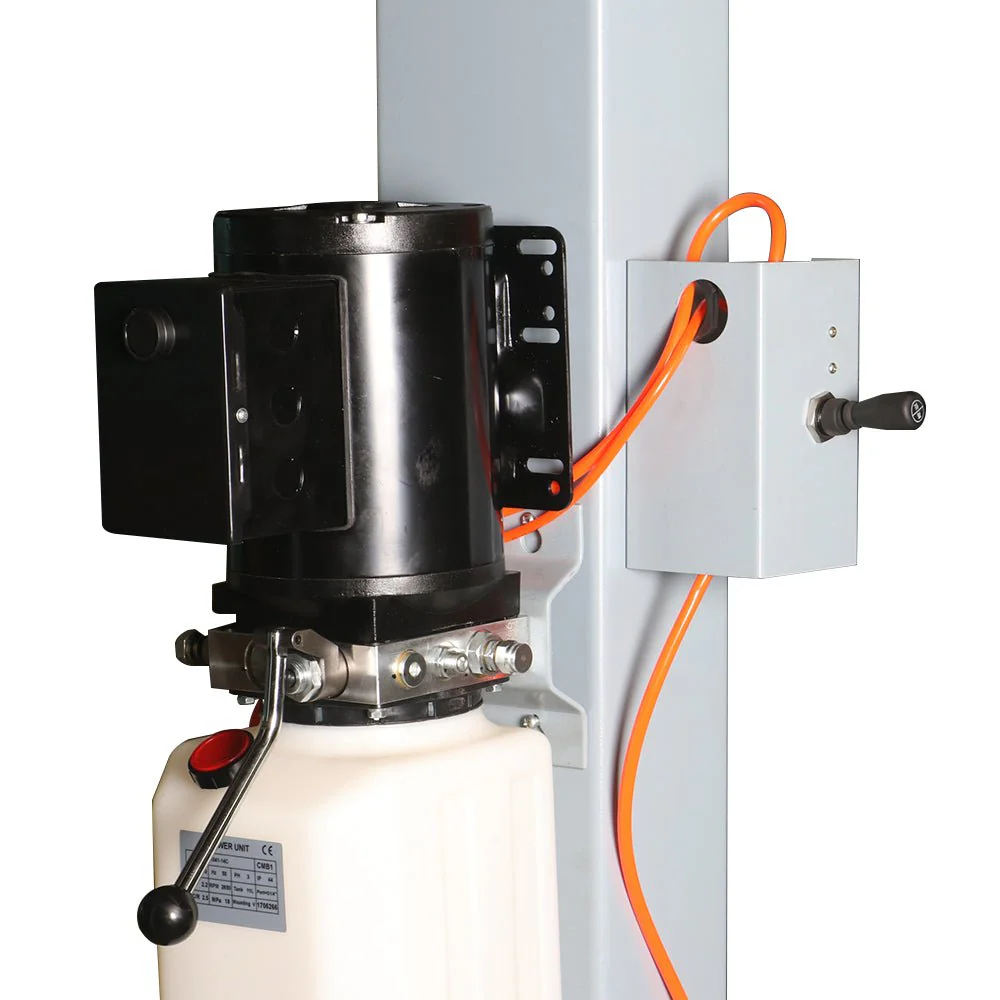

  • Aluminum motor power pack with efficient heat dissipation
  • Heavy-duty construction ideal for alignment bays and service shops



Manual
