Tractor PTO Drive Shaft Series 4 – Heavy-Duty Power Transmission for Farm Equipment
Series 4 Heavy-Duty Tractor PTO Drive Shaft - Adjustable Power Transmission
OVERVIEW
Power up your tractor implements with the Series 4 PTO Drive Shaft, engineered for smooth and efficient torque transfer across a wide range of agricultural attachments. Designed for reliability and operator safety, these shafts feature CE-certified components, high-strength Q345 steel tubing, and adjustable telescopic lengths to suit various equipment setups. Whether you are running a mower, tiller, or spreader, this Series 4 shaft provides the rugged durability required for demanding farm work.
SYSTEM HIGHLIGHTS
-
Industrial Construction: Manufactured with Q345 structural steel tubing for superior torque resistance and long-term durability.
-
CE-Certified Safety: Equipped with forged yokes and carburized steel U-joints, ensuring high-impact strength and reliable power delivery.
-
Universal 6-Spline Fit: Features standard 35mm (1-3/8") ends with a 6-spline configuration for seamless connection to most tractors and implements.
-

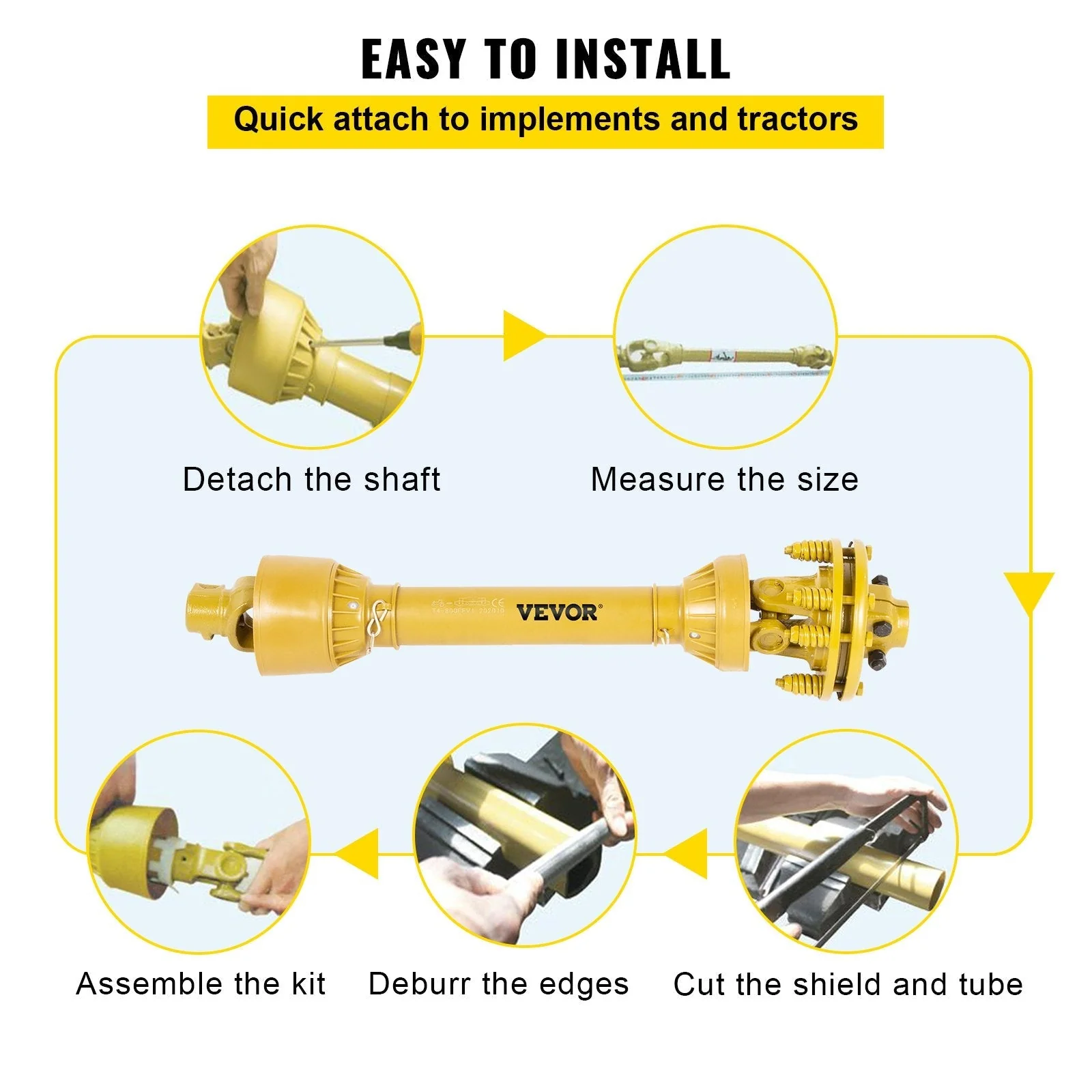

Telescopic Adjustability: Easy-to-adjust lengths allow for a custom fit across different machine reaches and working angles.
-
Full Protection: Every shaft includes a high-durability safety guard and safety chains to prevent accidental contact during operation.
SPECIFICATIONS & DIMENSIONS
| Feature | 43"- 61" Model (4361164) | 39"- 55" Model (3955164) | 31.5"- 41" Model (314164) |

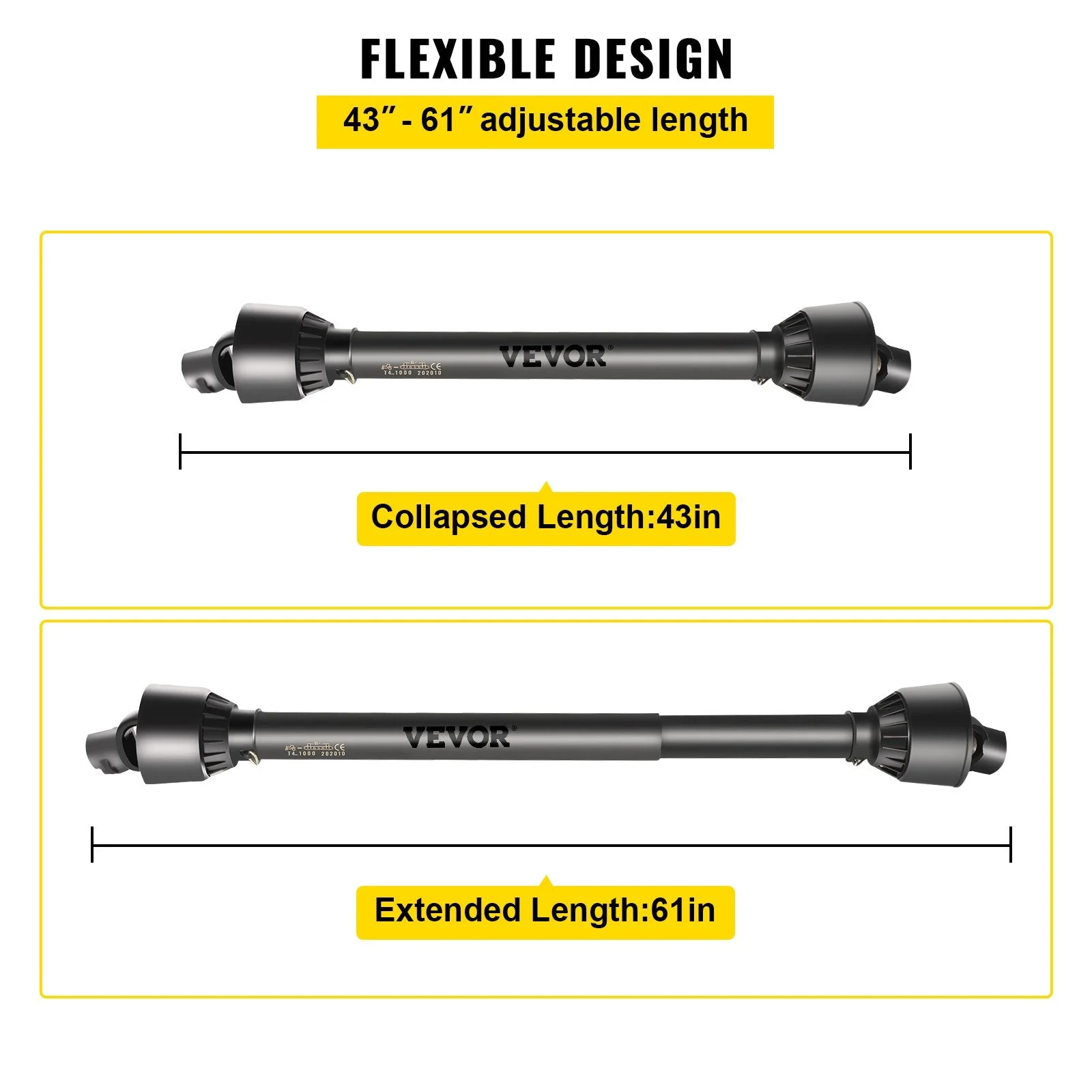

| Adjustable Length | 1100–1550mm (43"–61") | 990–1400mm (39"–55") | 800–1040mm (31.5"–41") |
| End Profile | 35mm (1-3/8") 6-Spline | 35mm (1-3/8") 6-Spline | 35mm (1-3/8") 6-Spline |
| Power Rating | 35–53HP (26–40kW) | 35–53HP (26–40kW) | 35–53HP (26–40kW) |
| Torque Rating | 360Nm at 1000RPM | 360Nm at 1000RPM | 360Nm at 1000RPM |
| Tube Material | Q345 Reinforced Steel | Q345 Reinforced Steel | Q345 Reinforced Steel |
| Certification | CE-Certified | CE-Certified | CE-Certified |
IDEAL APPLICATIONS
Rotary Tillers - Finishing Mowers - Fertilizer Spreaders - Post Hole Diggers - Wood Chippers - Small to Medium Tractors
