Skid Steer Trencher & Auger Discharge Attachment – TRENCHER

Skid Steer Trencher Attachment – 35.5" Depth with Auger Discharge (SKU: TRENCHER)

OVERVIEW

Tackle demanding trenching jobs with precision using this heavy-duty skid steer attachment, engineered for irrigation, utility lines, and sprinkler systems. Built with a robust welded steel frame and a high-efficiency 19" auger discharge chute, it delivers deep, clean cuts while moving spoil away from the trench to minimize mess. Designed for contractors, landscapers, and agricultural operations, this unit ensures professional-grade performance and fast workflow.

SYSTEM HIGHLIGHTS

• Industrial Construction: Reinforced steel frame and boom designed for maximum durability and long-term service life.

• Efficient Auger Ejection: Integrated 483mm (19") auger directs soil away from the trench for a cleaner finish and easier backfilling.

• Extreme Digging Depth: Capable of digging trenches up to 900mm (35.5") deep and 200mm (7.87") wide.

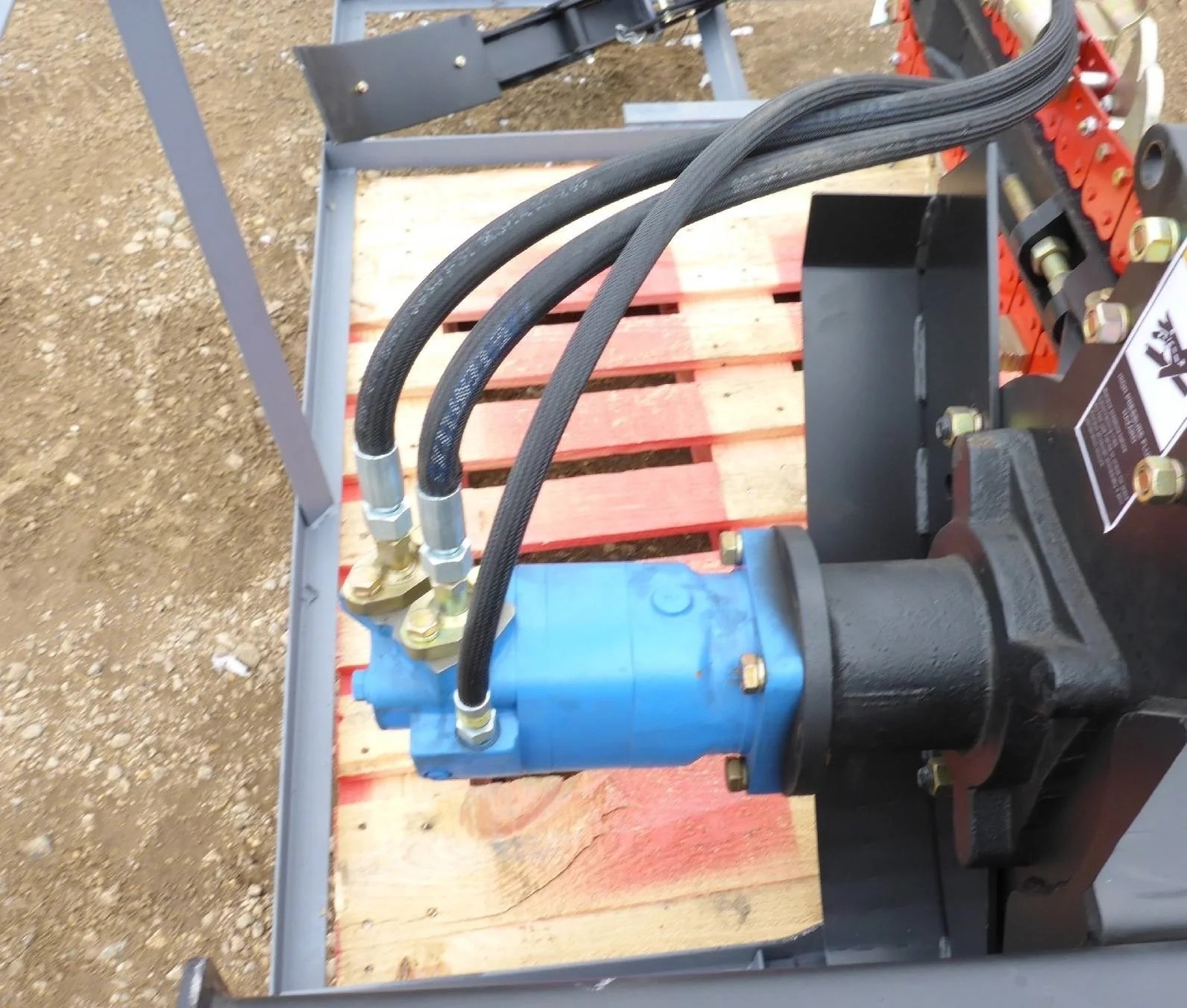

• High-Flow Performance: Optimized for hydraulic flows of 50-75LPM (13-20GPM) with an operating pressure of up to 16-21MPa (2320-3050PSI).

• Universal Quick Attach: Mounts securely to most skid steer loaders equipped with the standard universal quick-attach system.

SPECIFICATIONS & DIMENSIONS

• Model: TRENCHER

• Digging Width: 200mm (7.87")

• Digging Depth: 900mm (35.5")

• Flow Rating: 21-29GPM (80-110LPM) Range based on machine capacity

• Max Pressure: 3050PSI (21MPa)

• Recommended Power: 50-100HP Skid Steers

• Overall Size (L×W×H): 2007mm x 1245mm x 838mm (79" x 49" x 33")

IDEAL APPLICATIONS

Utility & Fiber Optic Line Installation - Irrigation & Sprinkler Systems - Agricultural Drainage - Landscaping & Trenching

RECOMMENDED ADD-ONS

• Replacement Blades: Trencher Blade Set Replacement (Full Set) - TRENCHERPTS
