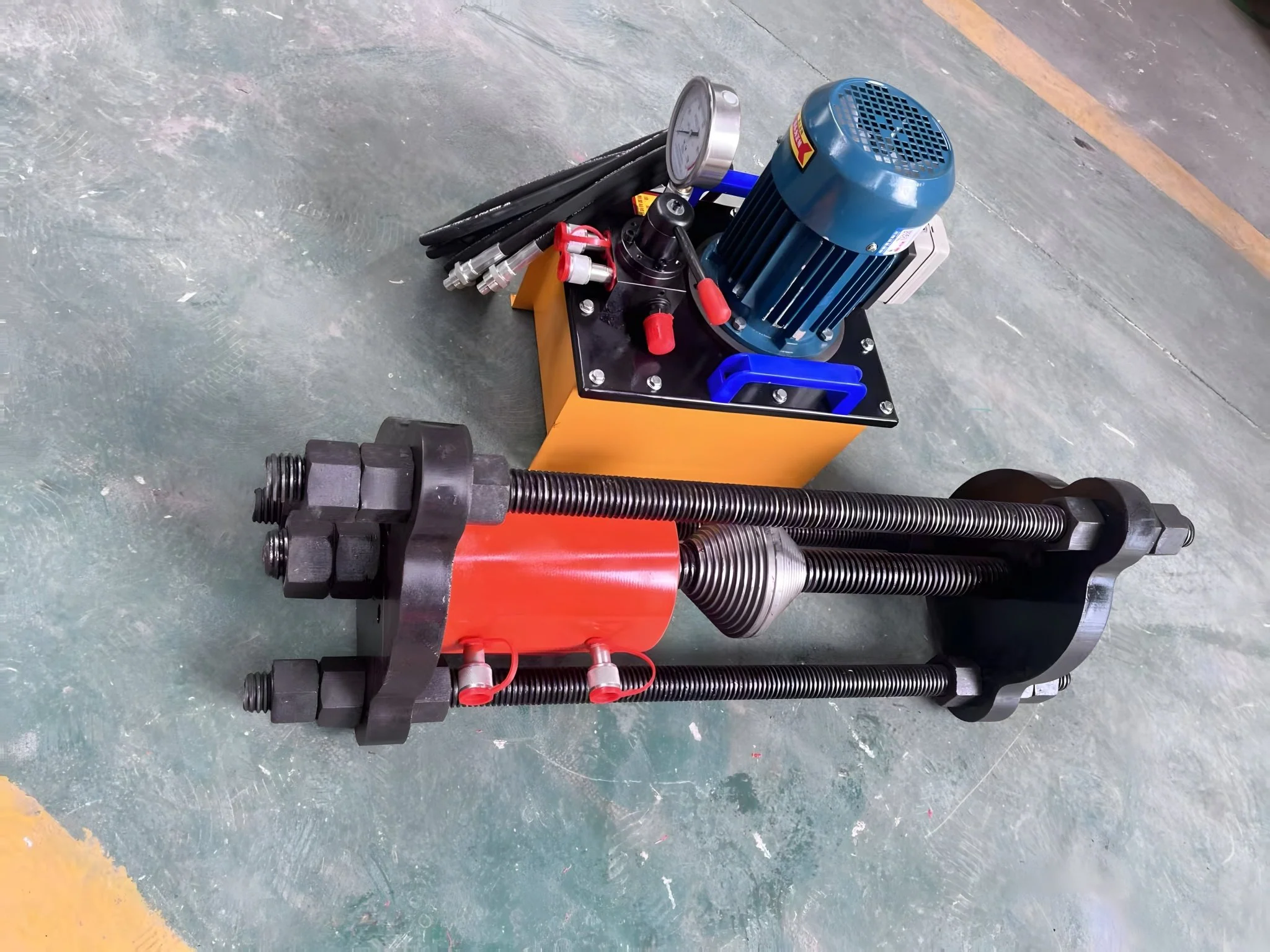

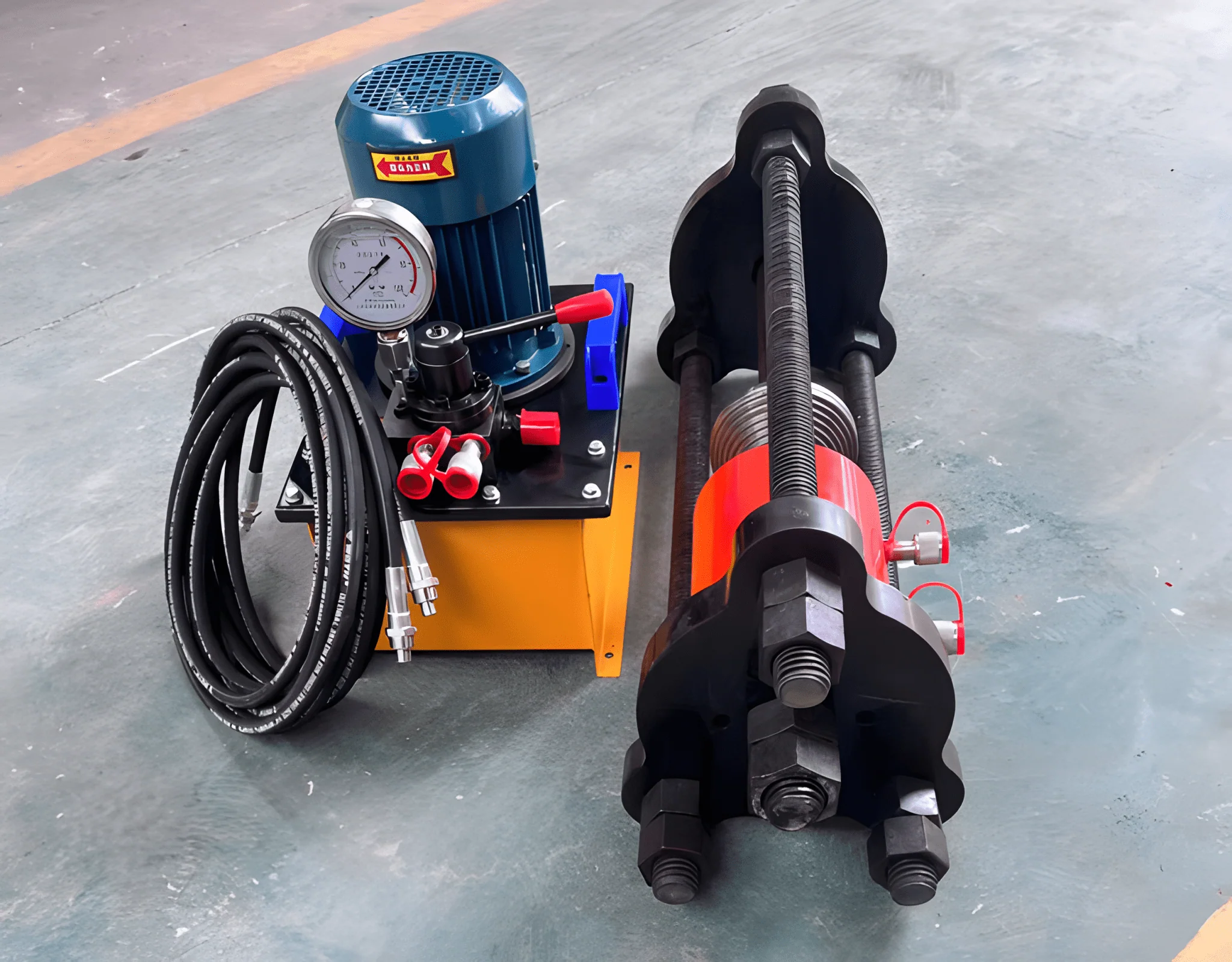

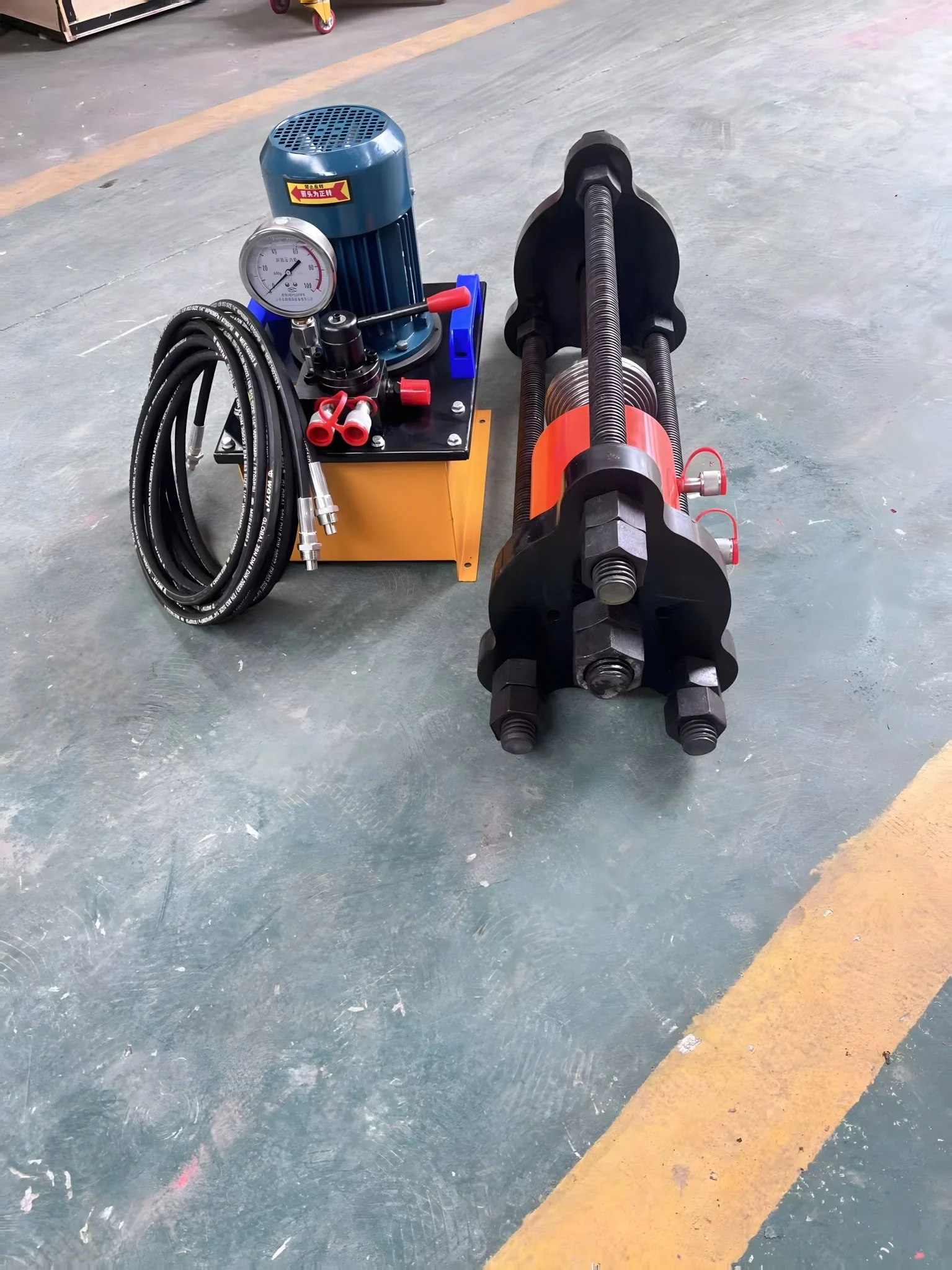

100 Ton Excavator Maintenance Pin Press Sleeve and Chain Press Machine 110V Hydraulic Integrated Unit 10055

Heavy-duty 100-ton hydraulic pressing machine designed for excavator maintenance, capable of pressing sleeves and chains with high precision. Integrated hydraulic system with 110V single-phase power for shop and field service use.

Key Features

• 100 Ton Pressing Capacity – Built for excavator and heavy equipment service
• Integrated Hydraulic System – Compact, efficient, and shop-ready
• Sleeve & Chain Pressing Capability – One machine for multiple tasks
• 110V Single-Phase Power – No industrial power required
• Precision Screw Shaft & Hydraulic Cylinder – Controlled pressing force

Specifications

• Pressing Capacity: 100 ton
• Power: 110V / 60Hz / 1.5 kW (≈2 HP), single phase
• Working Pressure: 63 MPa (≈9,135 PSI)
• Hydraulic Flow: 1 L/min (≈0.26 GPM)
• Pressing Sleeve Diameter Range: up to 5.9 inches (≤150 mm)
• Pressing Chain Diameter Range: up to 2 inches (≤50 mm)
• Hydraulic Cylinder Travel: 4 inches (100 mm)
• Screw Shaft Diameter: 2 inches (50 mm)
• Screw Shaft Length: 39 inches (100 cm)
• Machine Type: Integrated hydraulic pressing unit
• Manufacturer Model: PSPC010055

In The Box

• 1 × 100 Ton Hydraulic Pressing Machine
• Integrated hydraulic system
• Power cord (110V)

Ideal For

• Excavator maintenance and repair
• Heavy equipment service shops
• Pressing bushings, sleeves, and chains
• Field service technicians
• Construction and mining equipment maintenance
