40 ft Wide Double Truss Storage Buildings – Heavy-Duty Portable Shelters

Professional 12.19 m (40') Wide Double Truss Industrial Storage Building – Extreme-Duty PVC Shelter

Reinforced Structural Engineering for High-Volume Logistics, Heavy Equipment, and All-Season Asset Protection

OVERVIEW

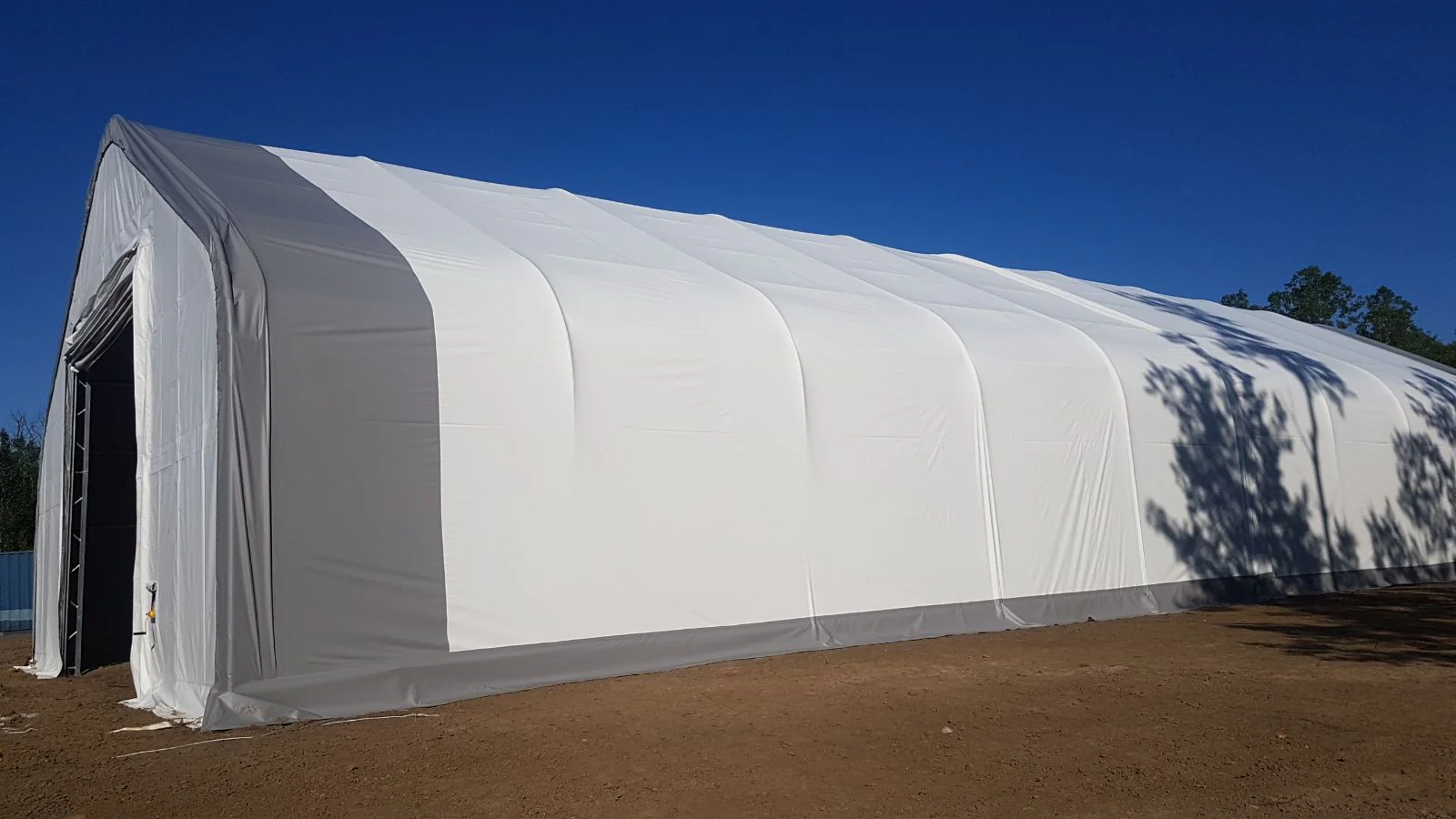

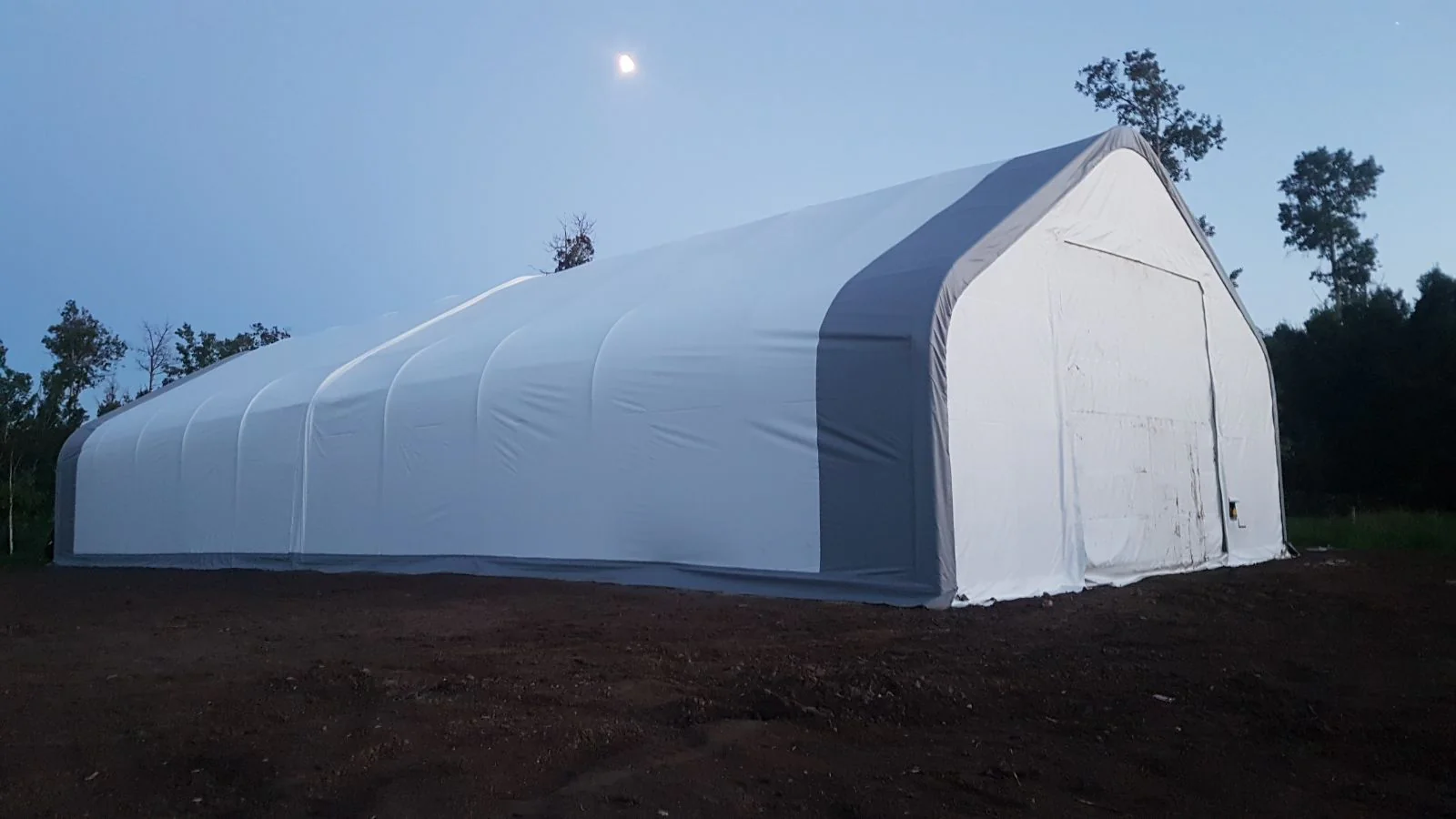

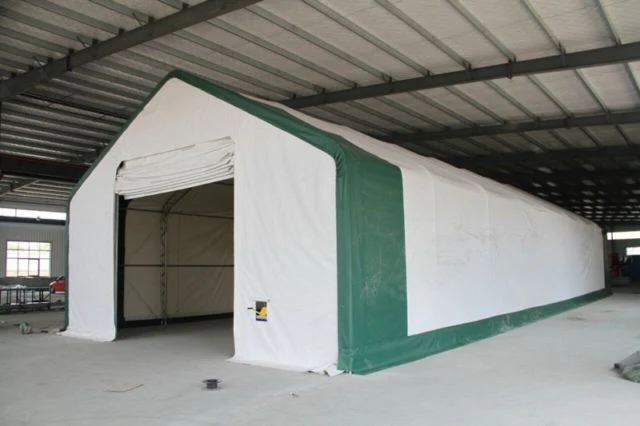

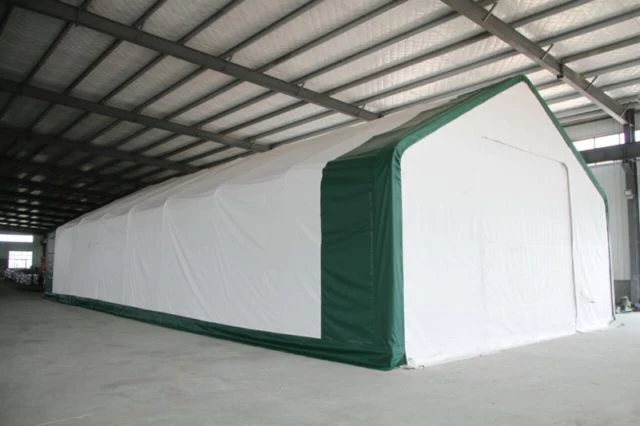

Dominate large-scale site logistics with the massive capacity and extreme durability of our Professional 12.19 m (40') Wide Double Truss Storage Building. Engineered for the most demanding commercial, industrial, and agricultural operations, this structure features a reinforced double-truss galvanized steel frame, offering significantly higher resistance to wind and snow loads than standard single-truss units. Clad in industrial-grade 22.5 oz (750 gsm) or premium 26.5 oz (900 gsm) PVC fabric, this shelter provides a 100% waterproof, UV-stabilized, and fire-retardant environment. With a towering 7.01 m (23') peak height, this series is the definitive choice for commercial fleet housing, bulk warehouse expansion, and heavy machinery workshops.

SYSTEM HIGHLIGHTS

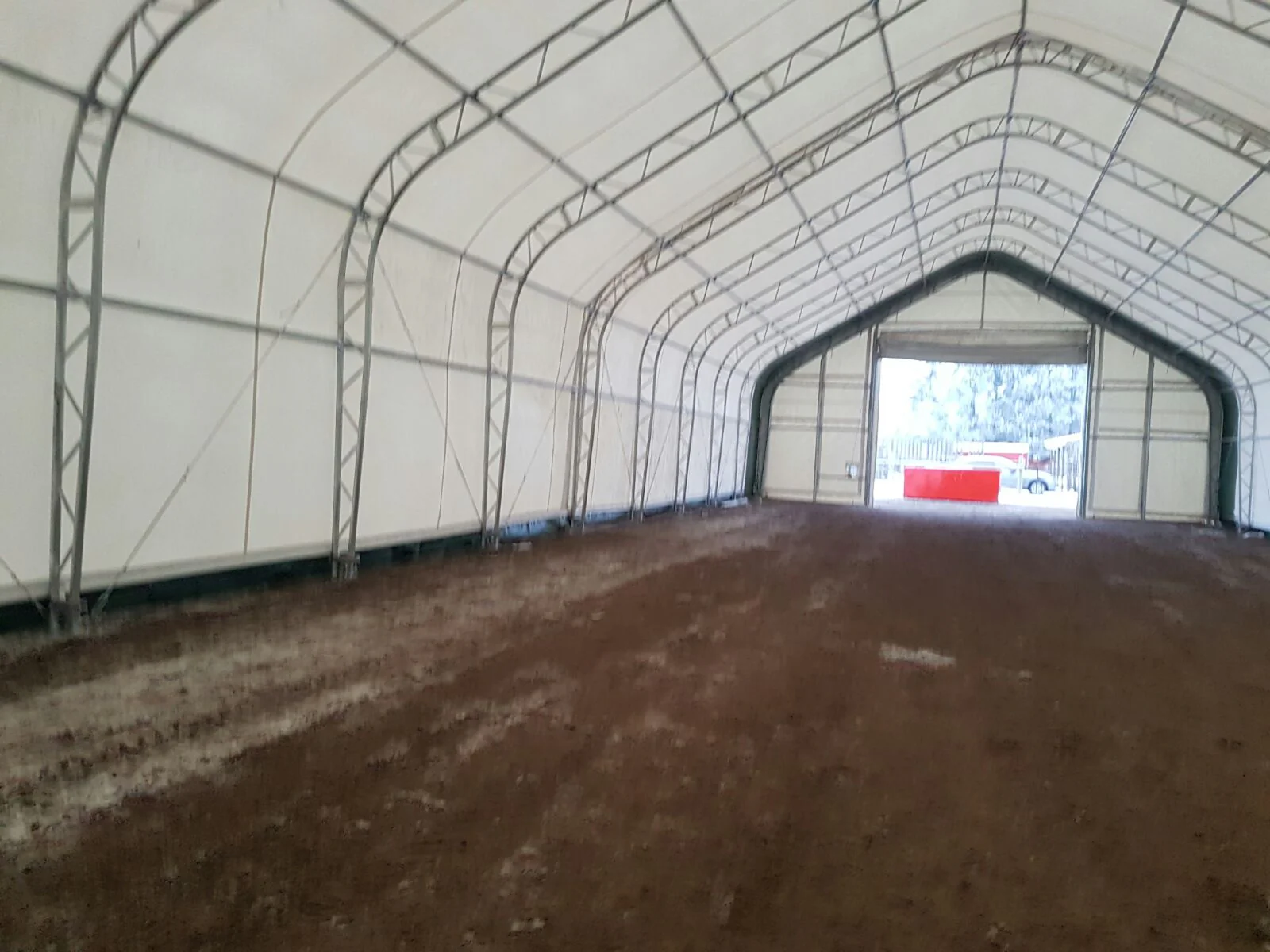

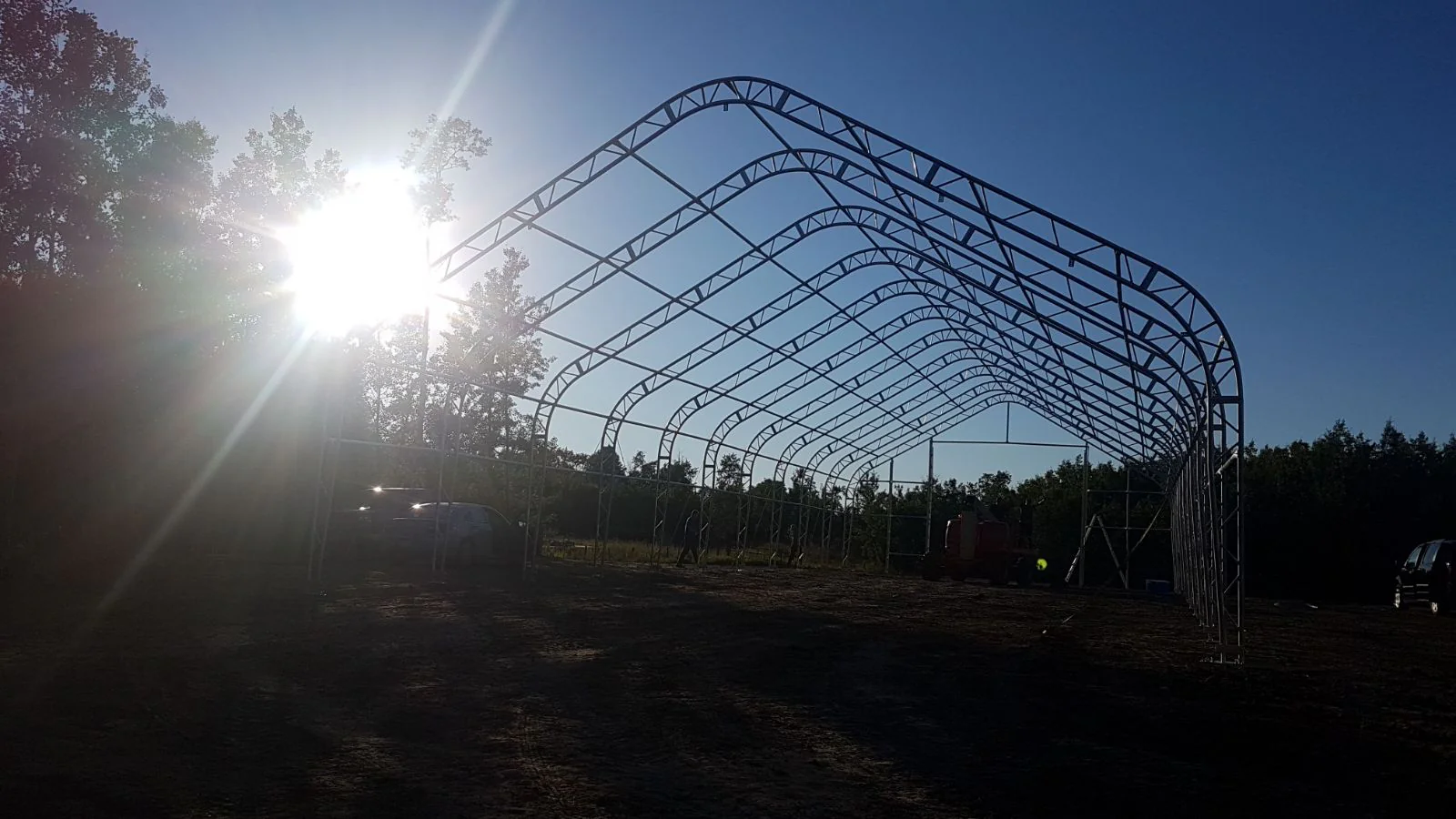

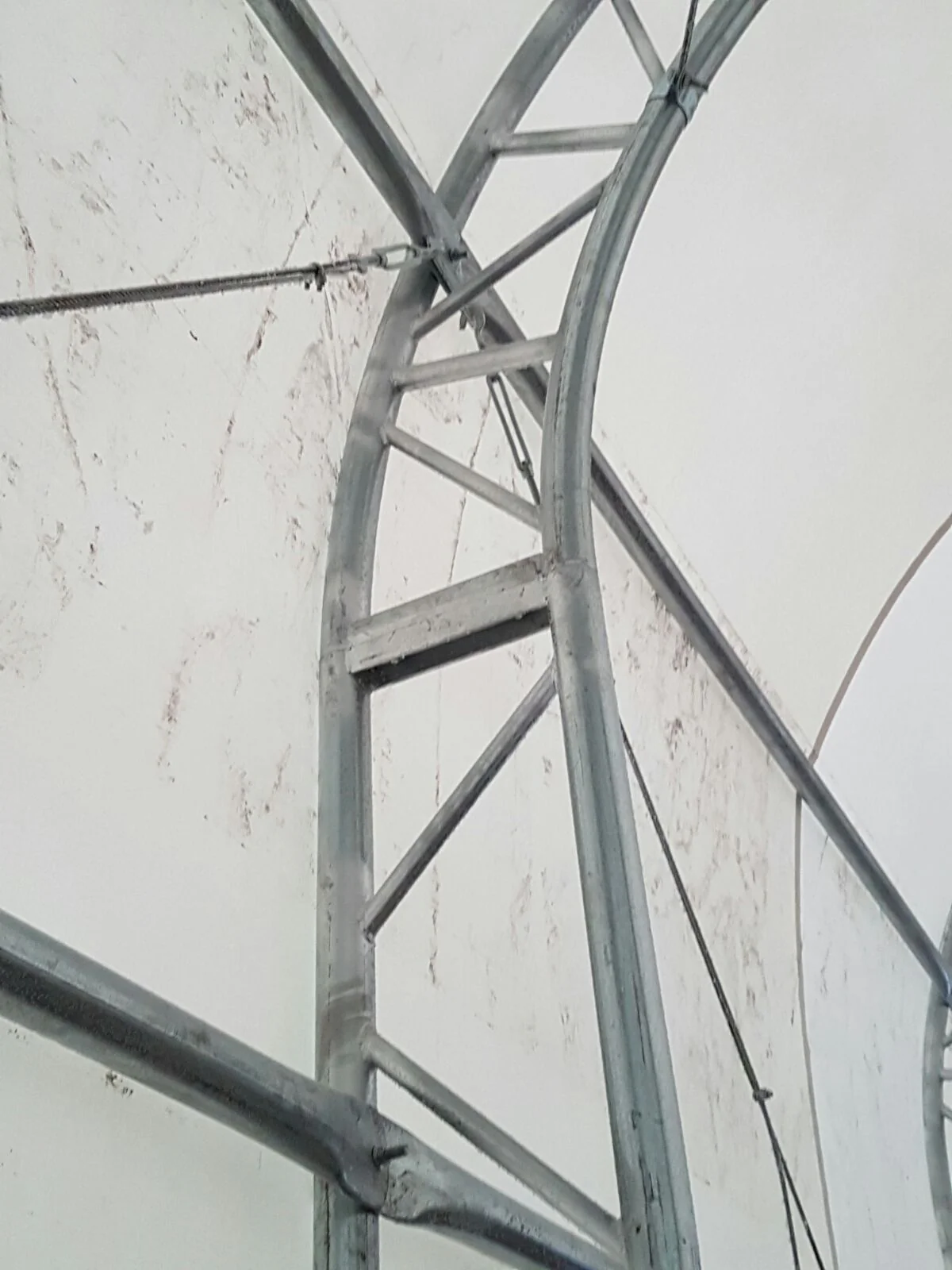

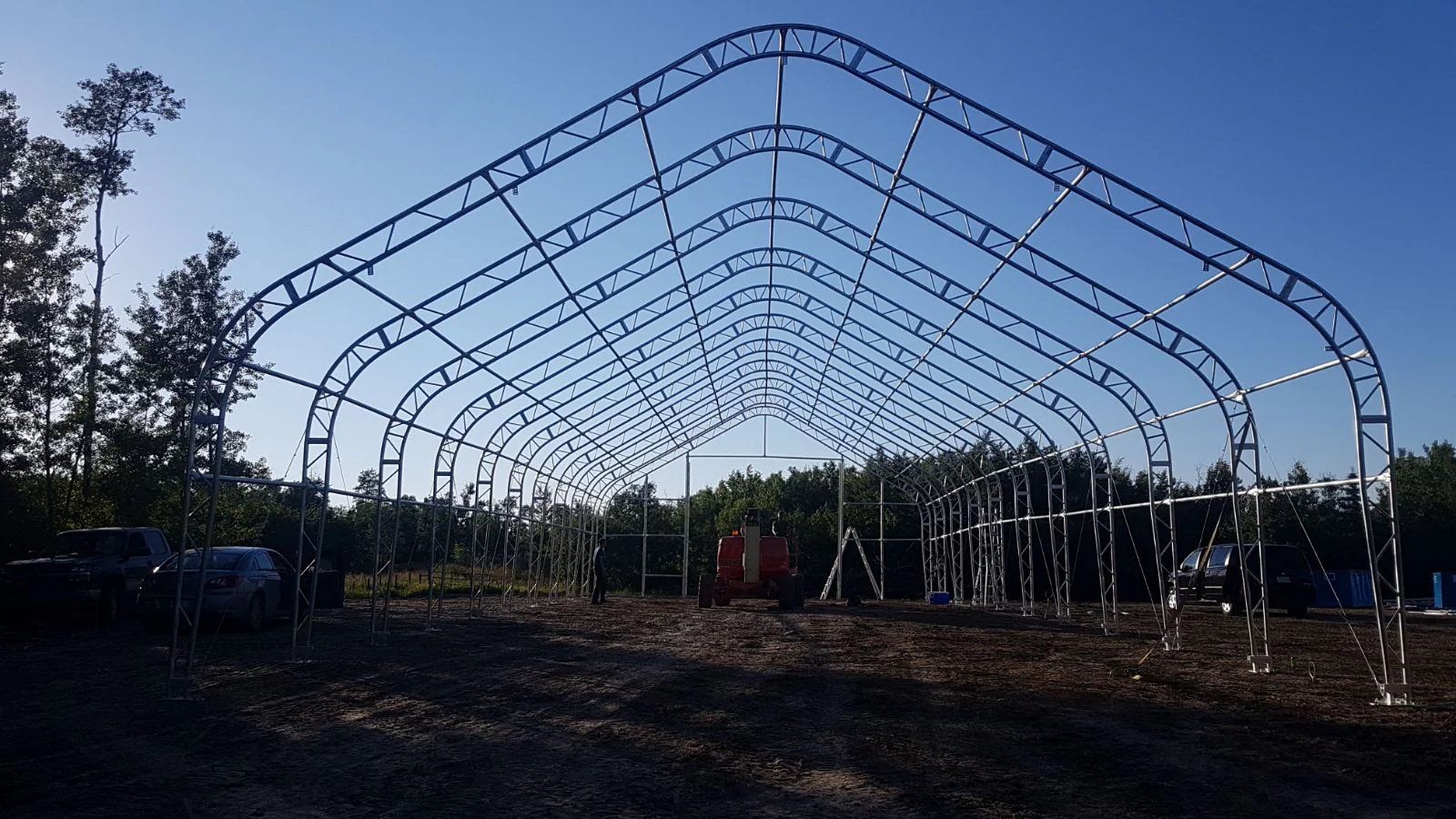

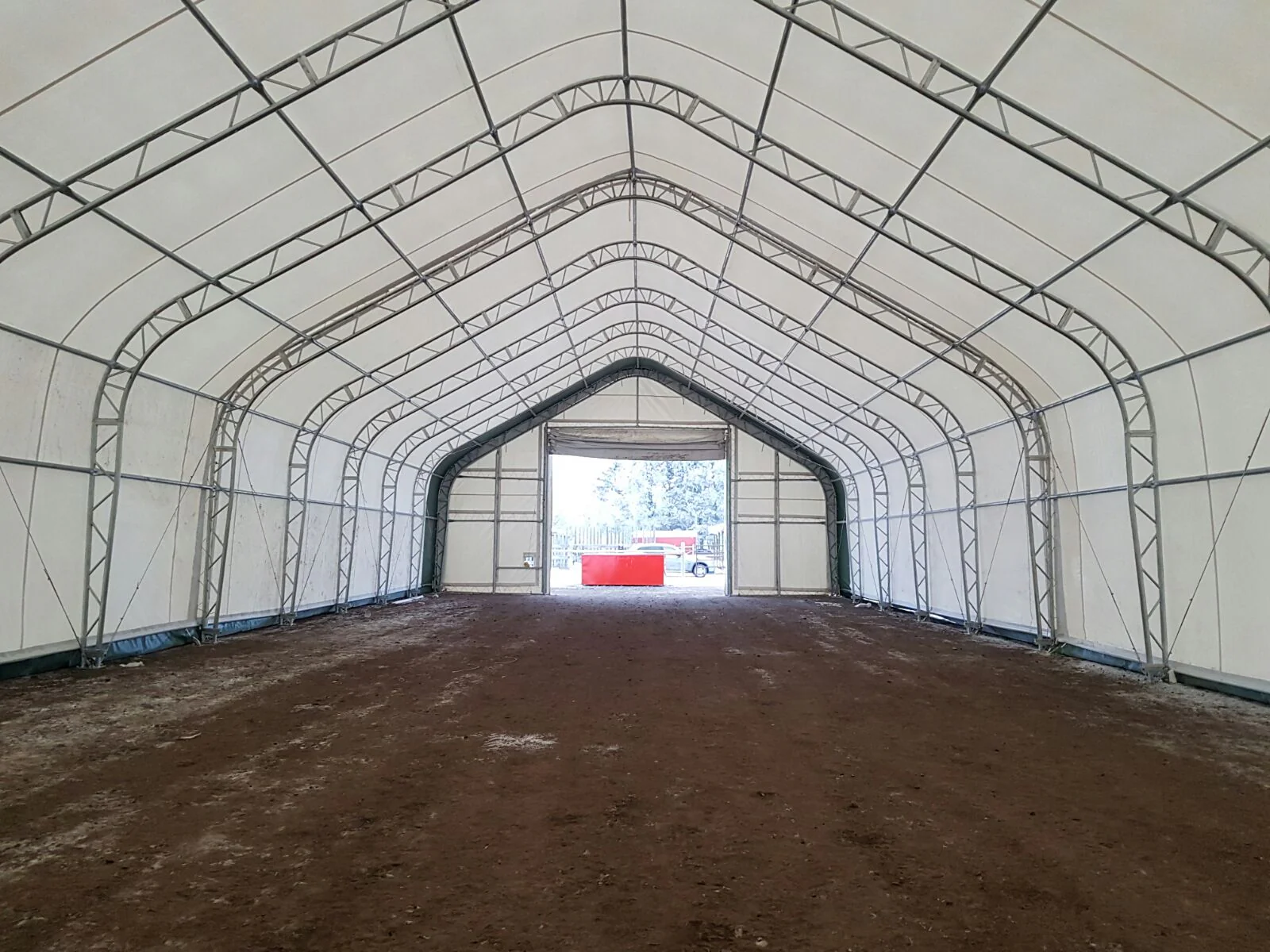

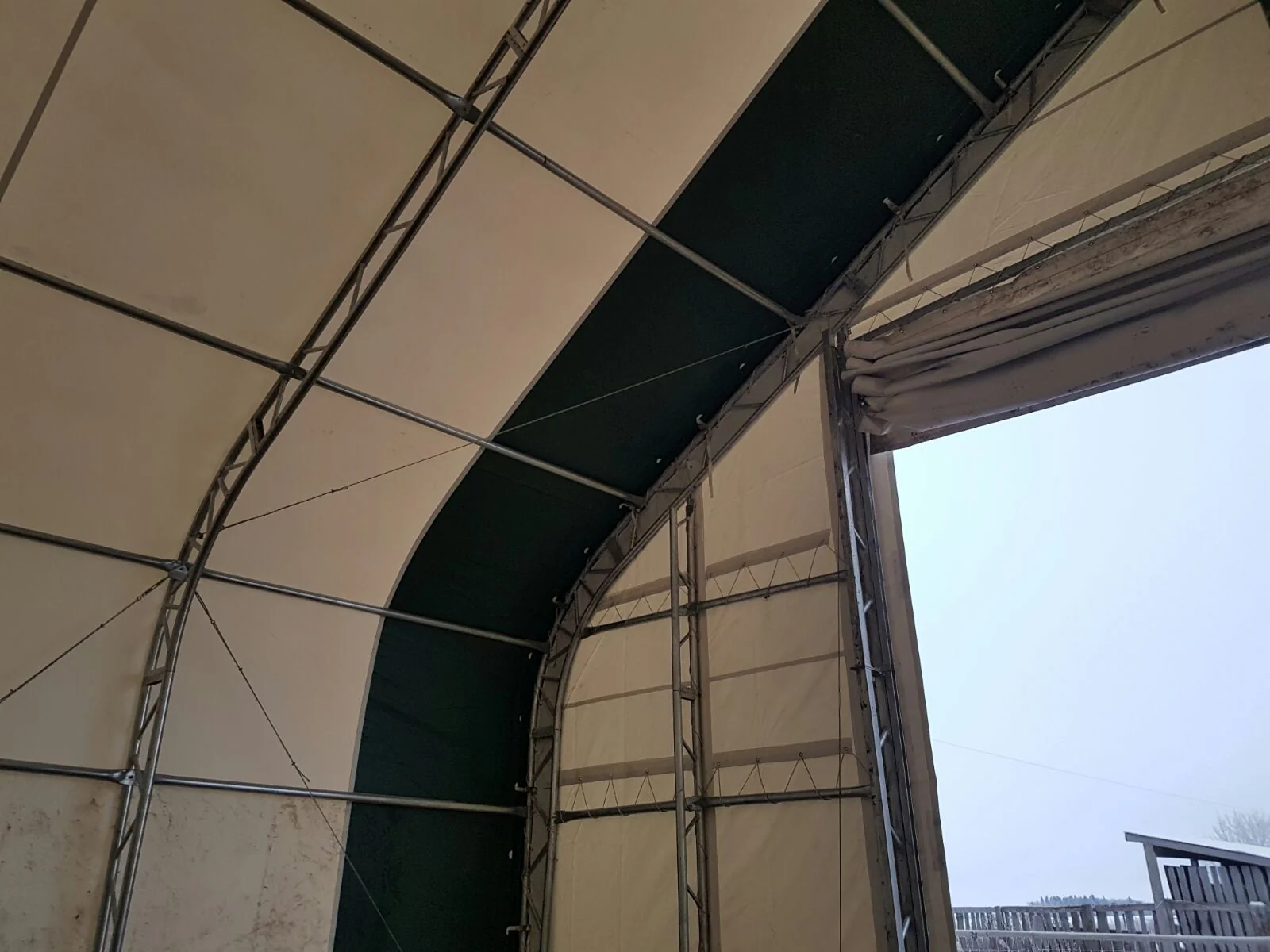

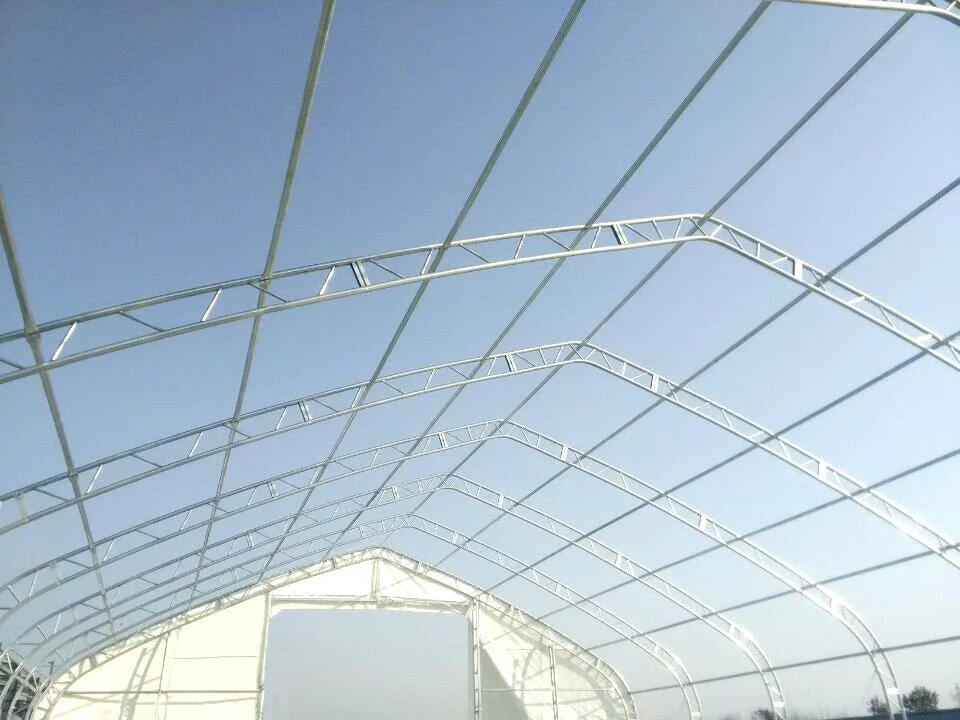

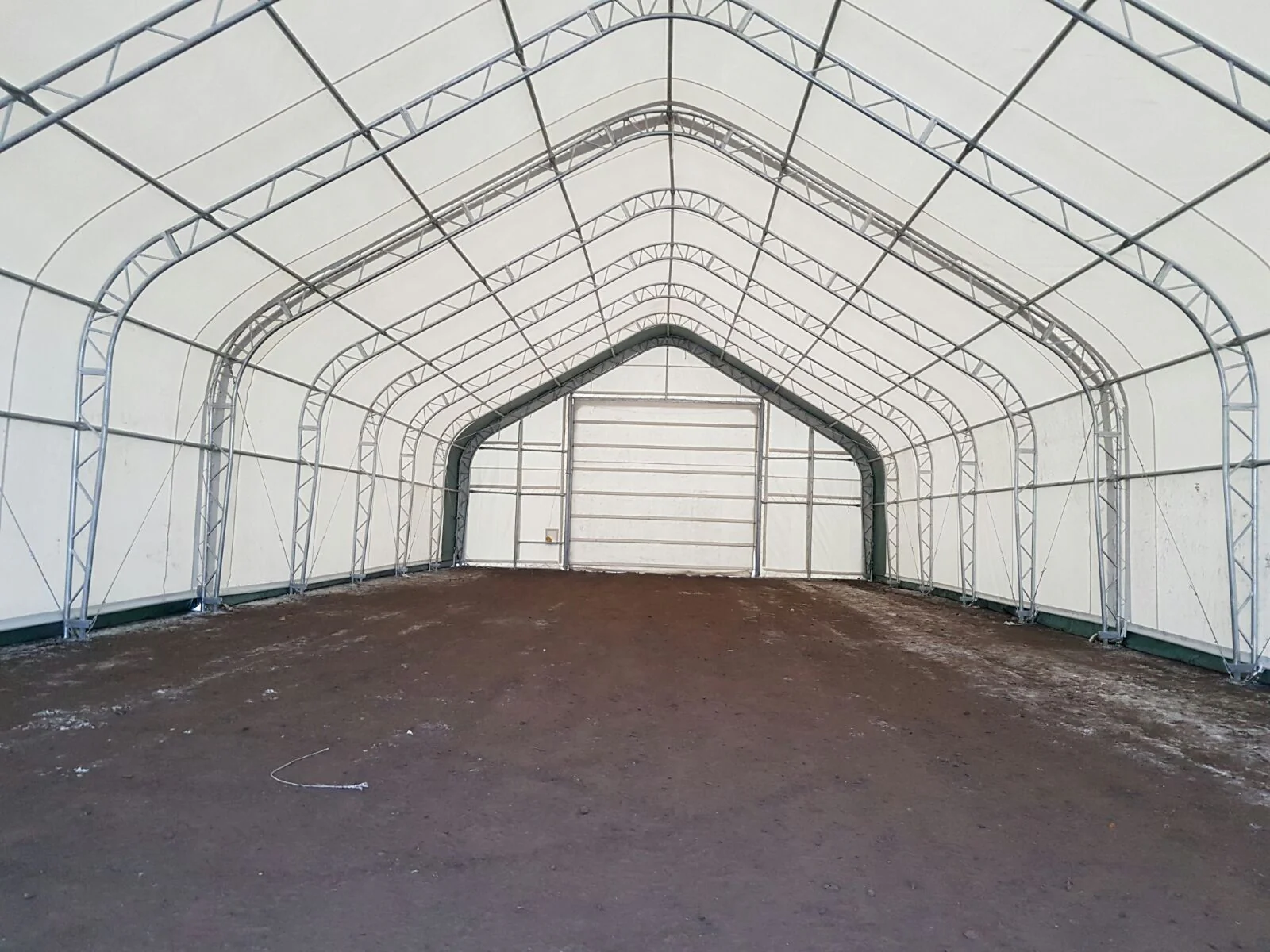

• Reinforced Double Truss Frame: Constructed with 60 mm (2 3/8”) 15-gauge hot-dip galvanized steel pipes in a double-truss configuration to eliminate structural flex and ensure maximum stability under severe weather events.

• High-Density PVC Membrane: Available in Standard 22.5 oz or Elite 26.5 oz (900 gsm) All-White PVC, providing superior tear resistance, cold-crack protection, and industrial-grade flame retardancy.

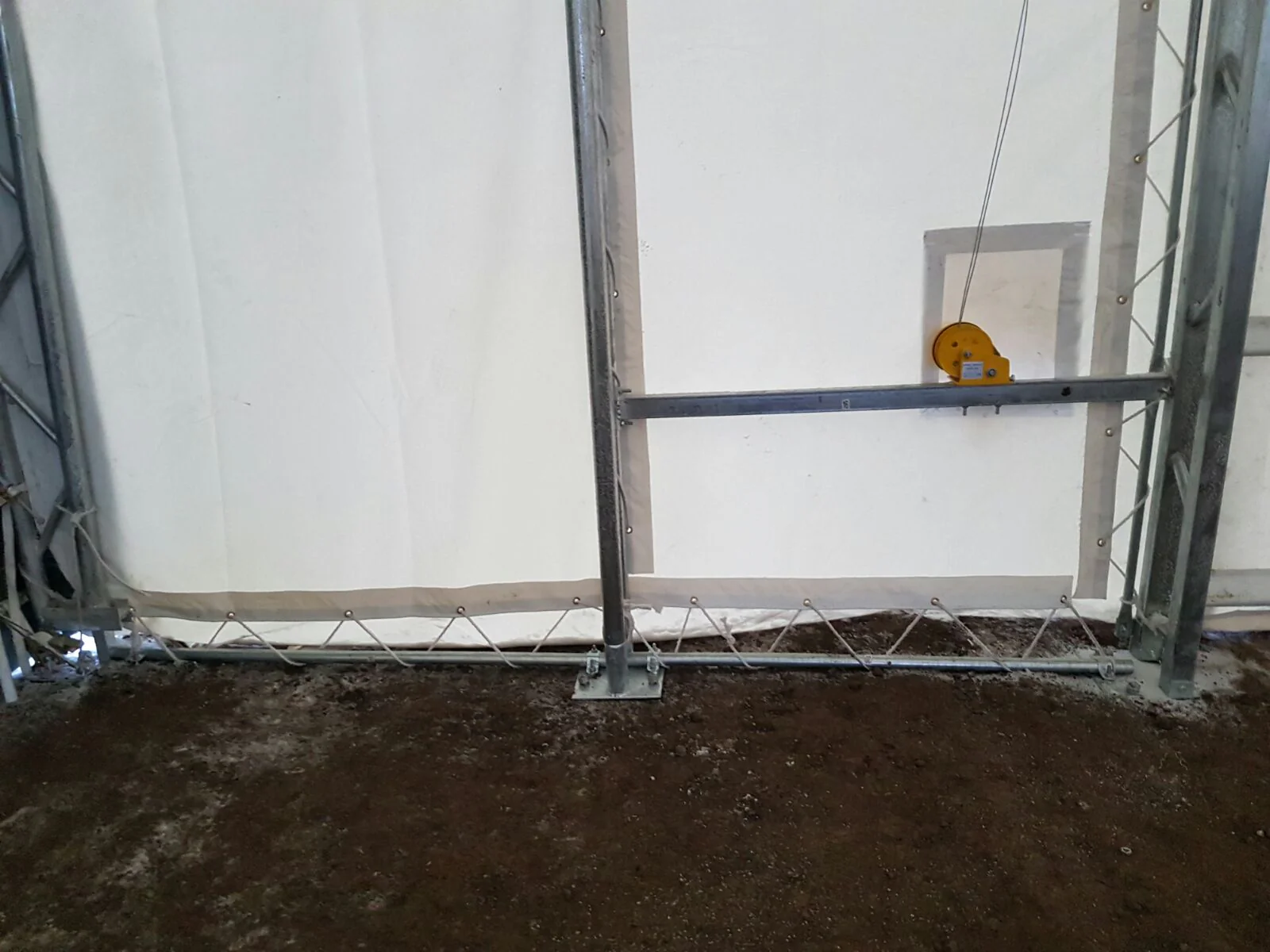

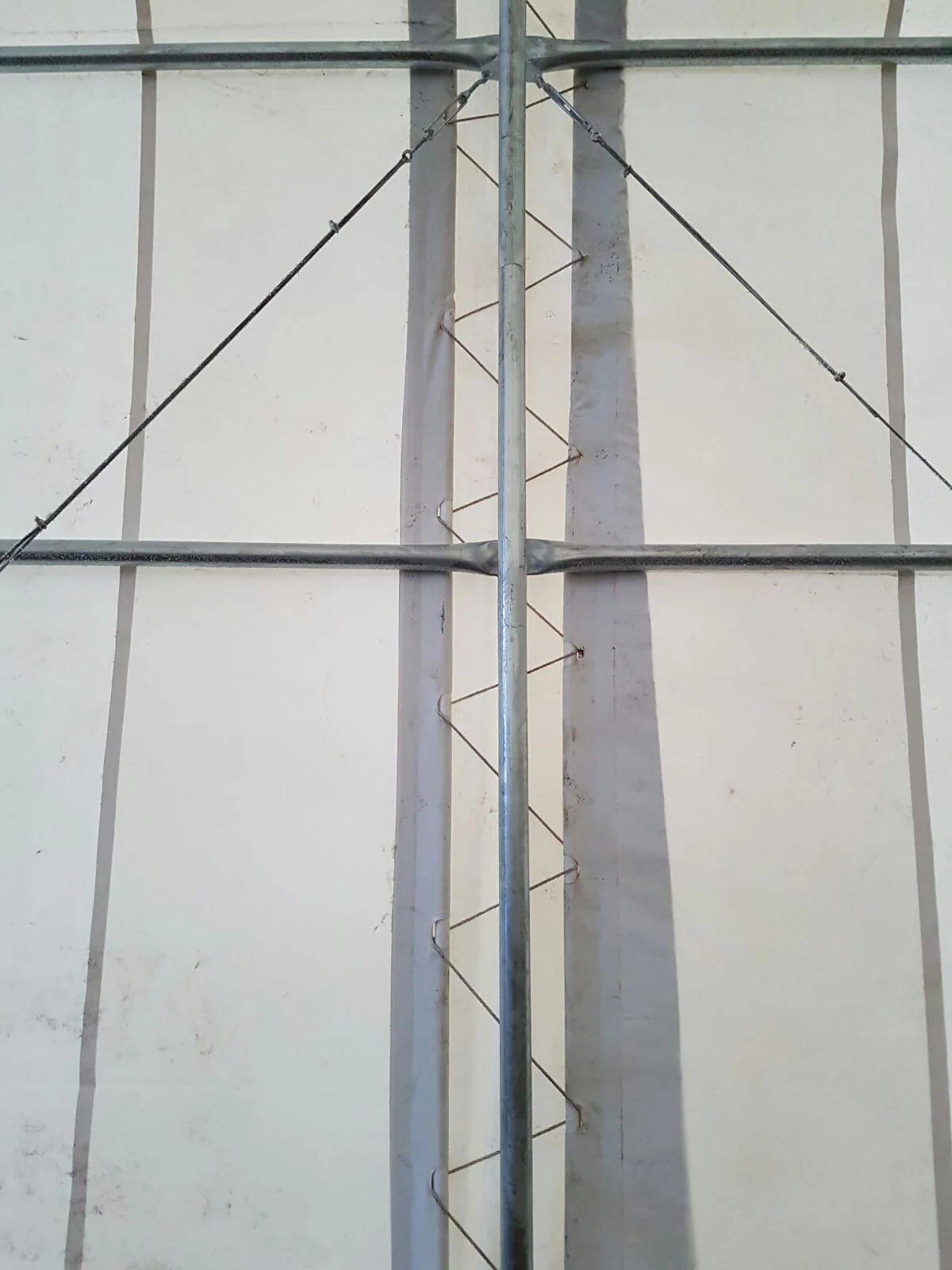

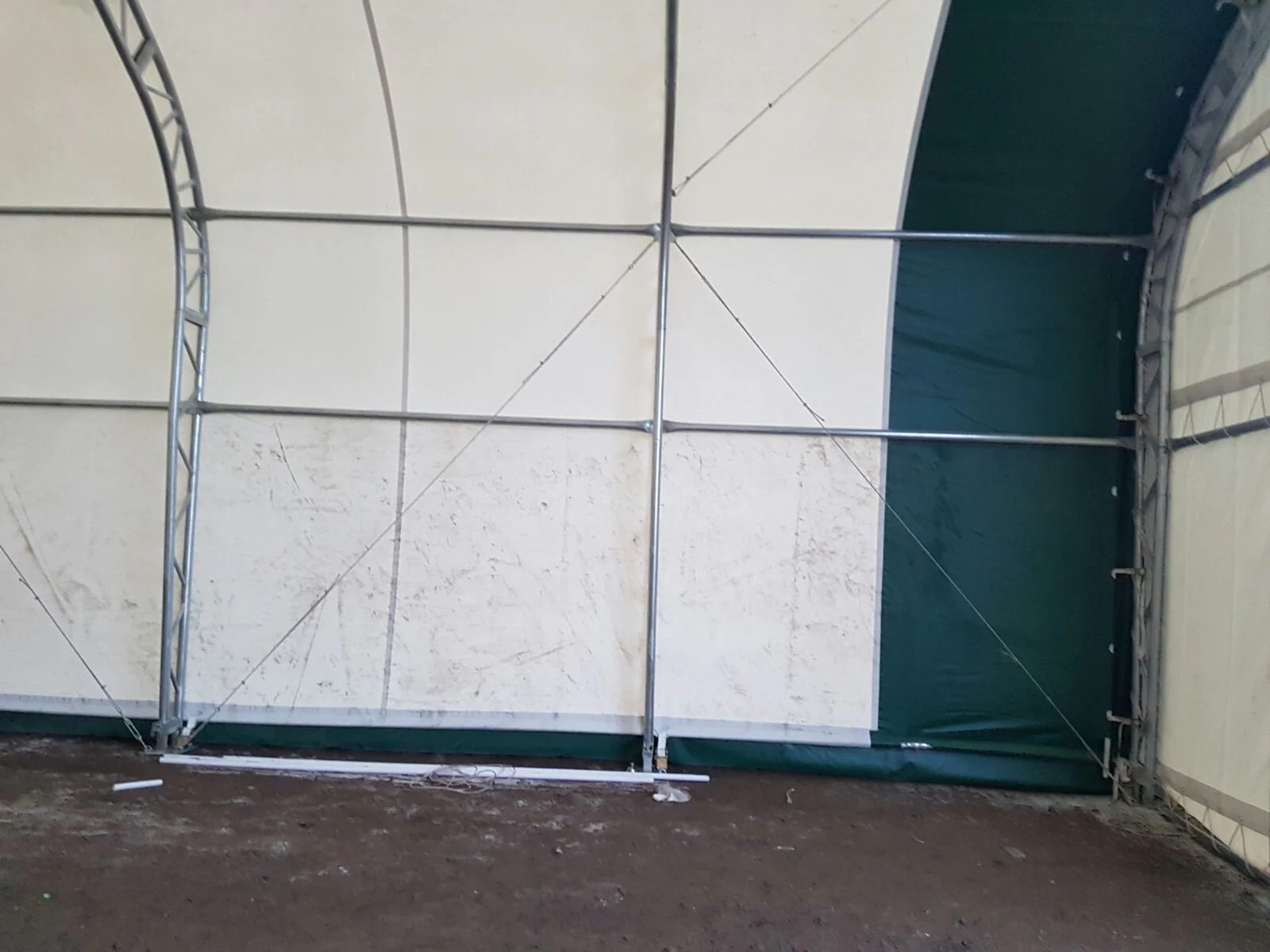

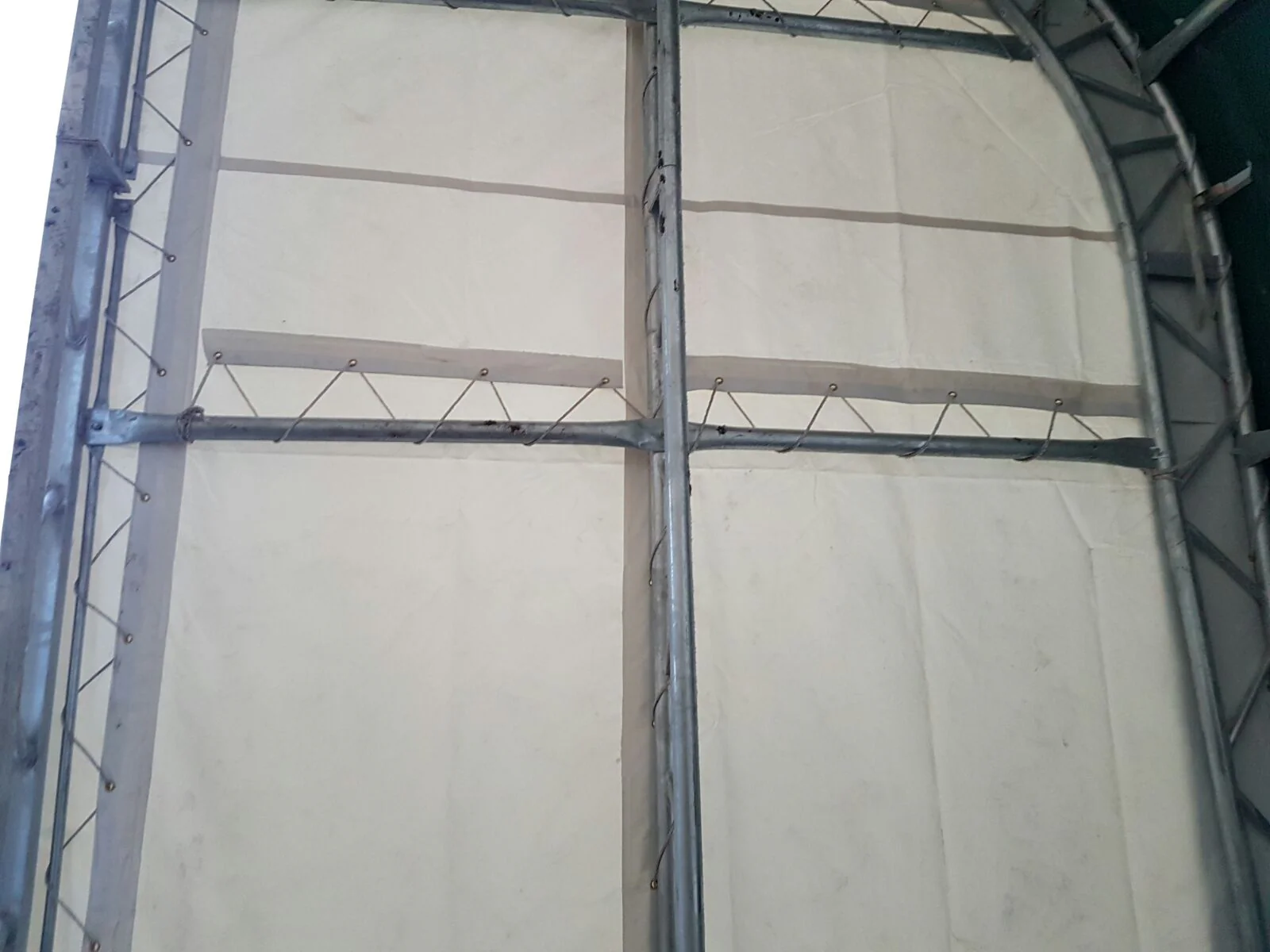

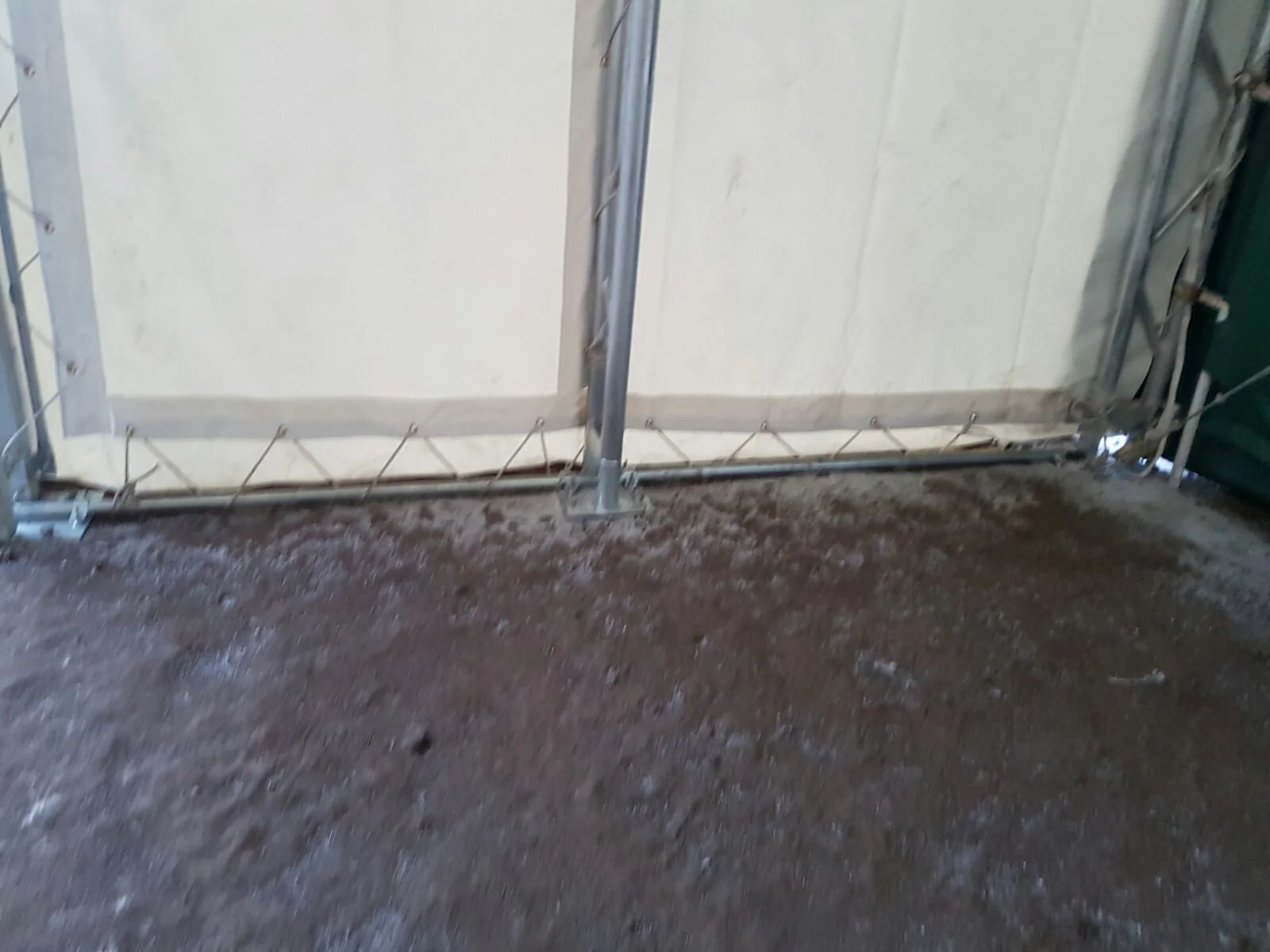

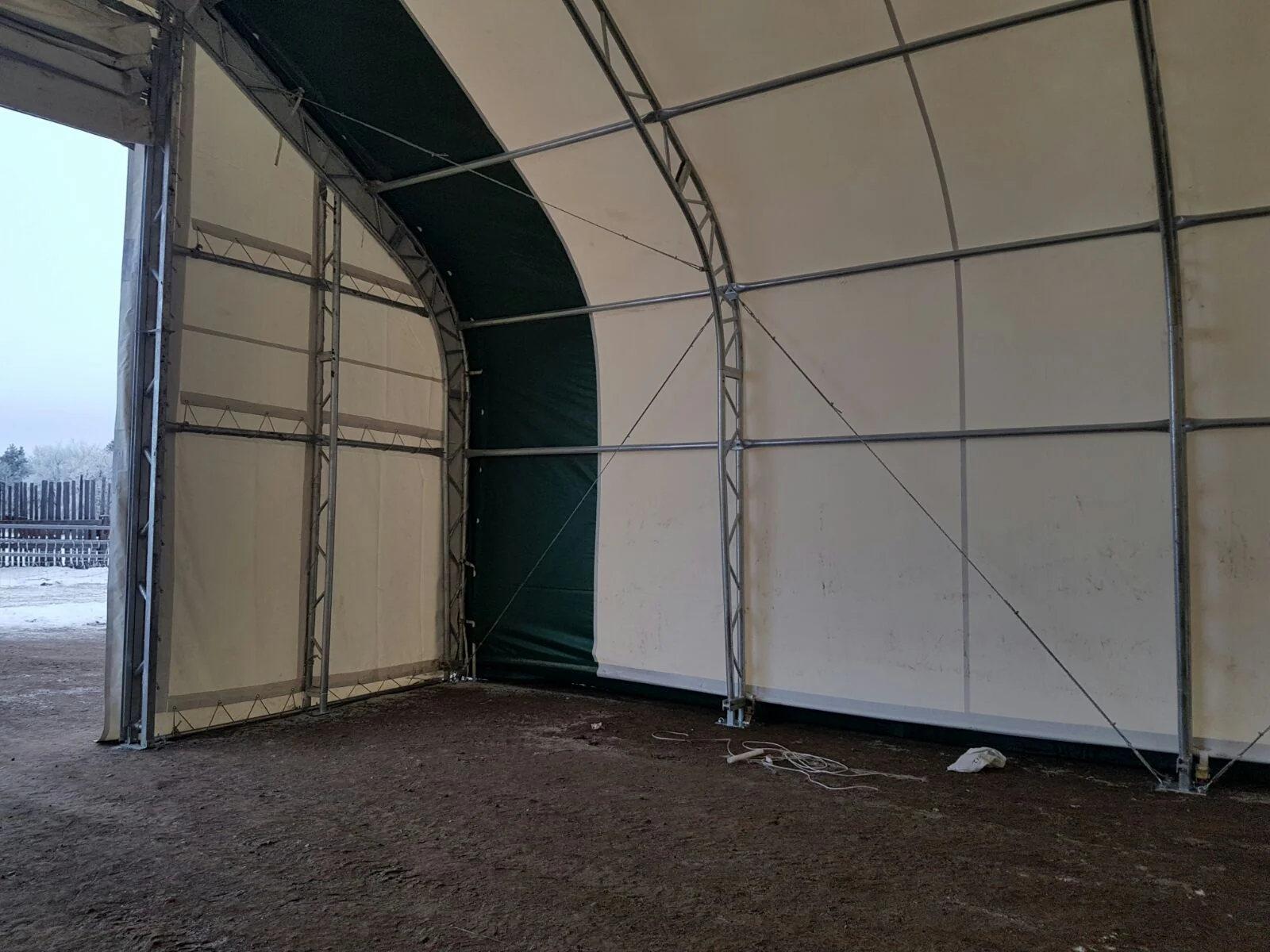

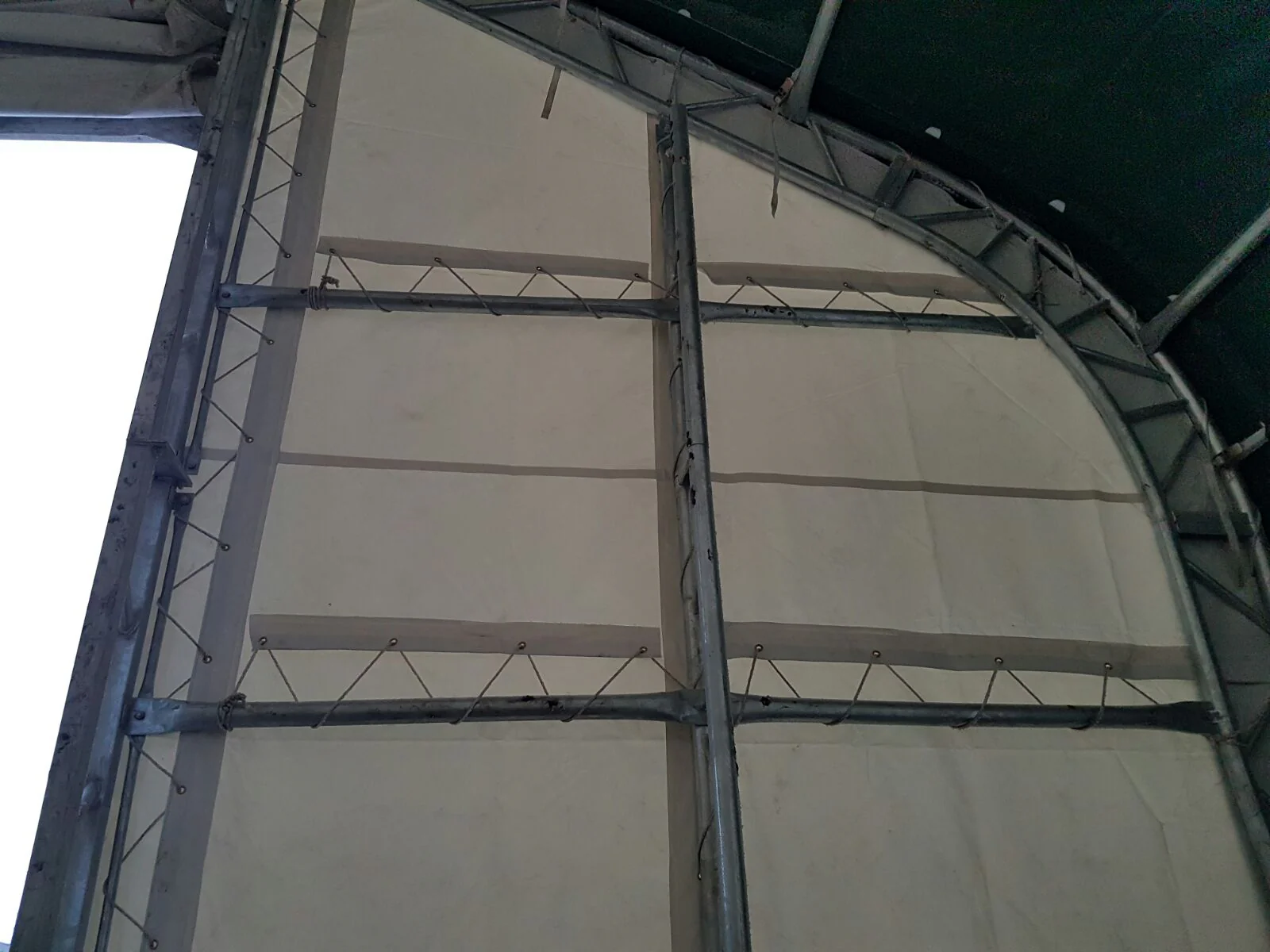

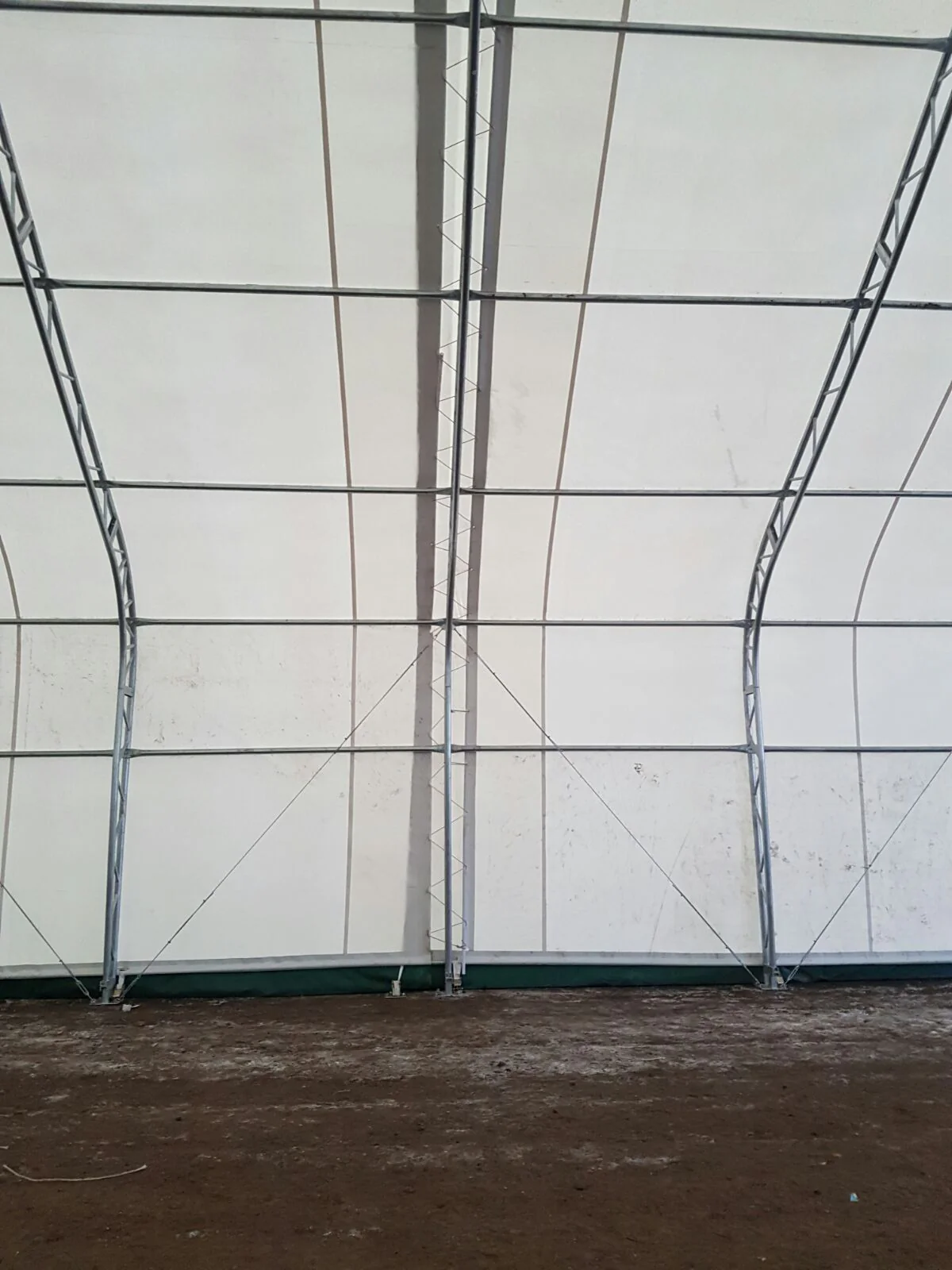

• Quad Tensioning System: Features an integrated internal cable network that keeps the fabric cover taut and wrinkle-free, preventing rain pocketing and extending the service life of the membrane.

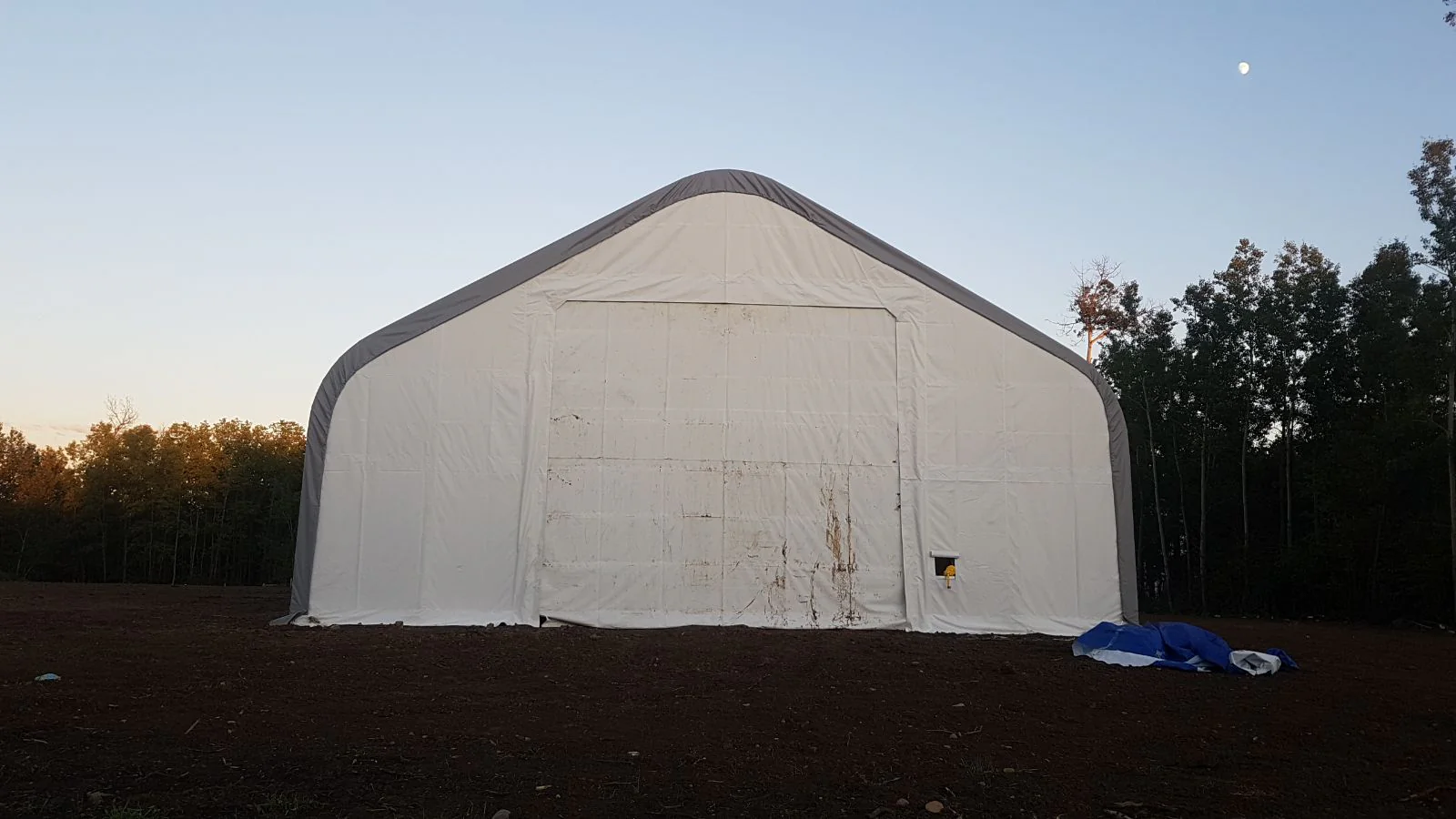

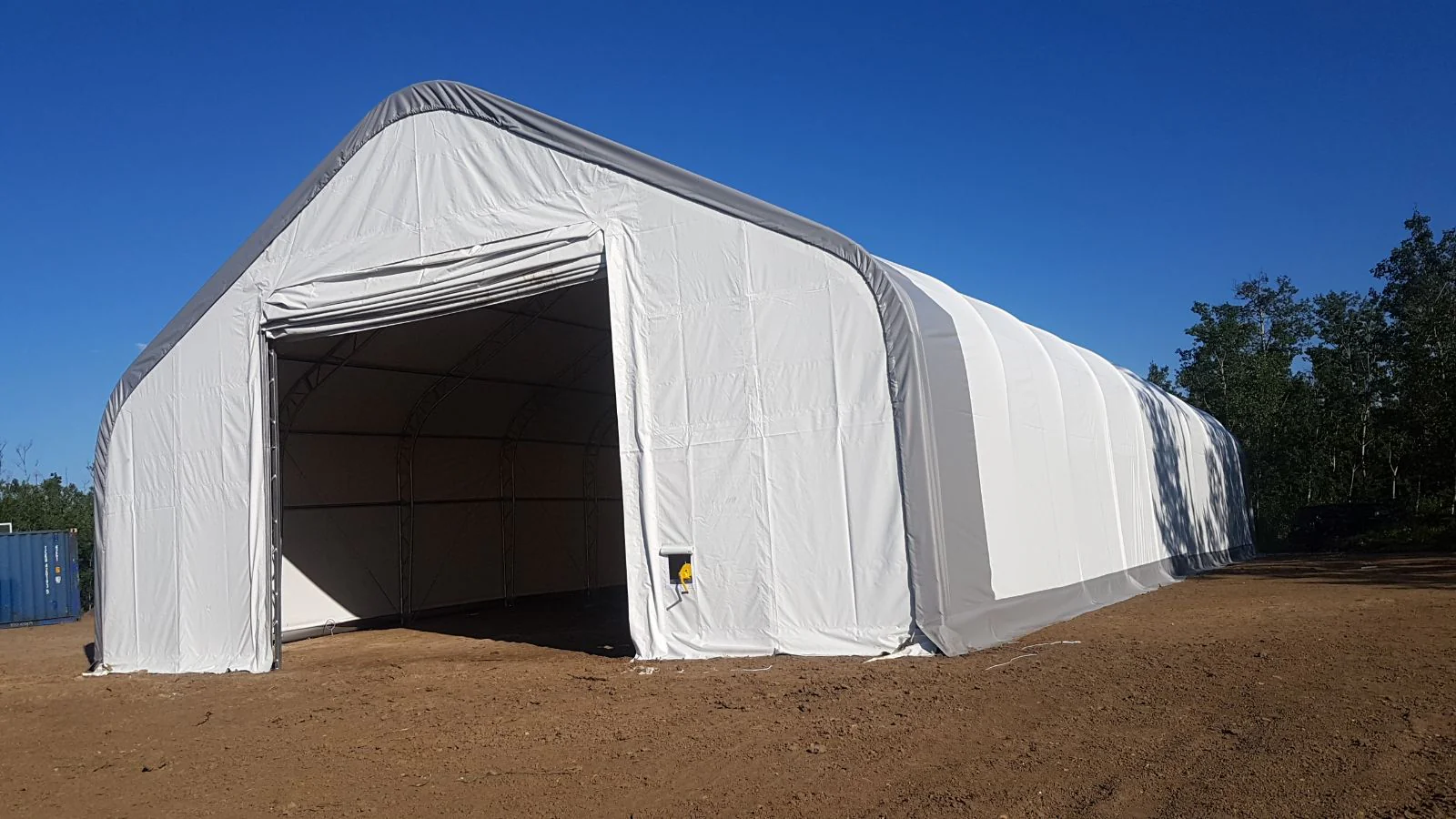

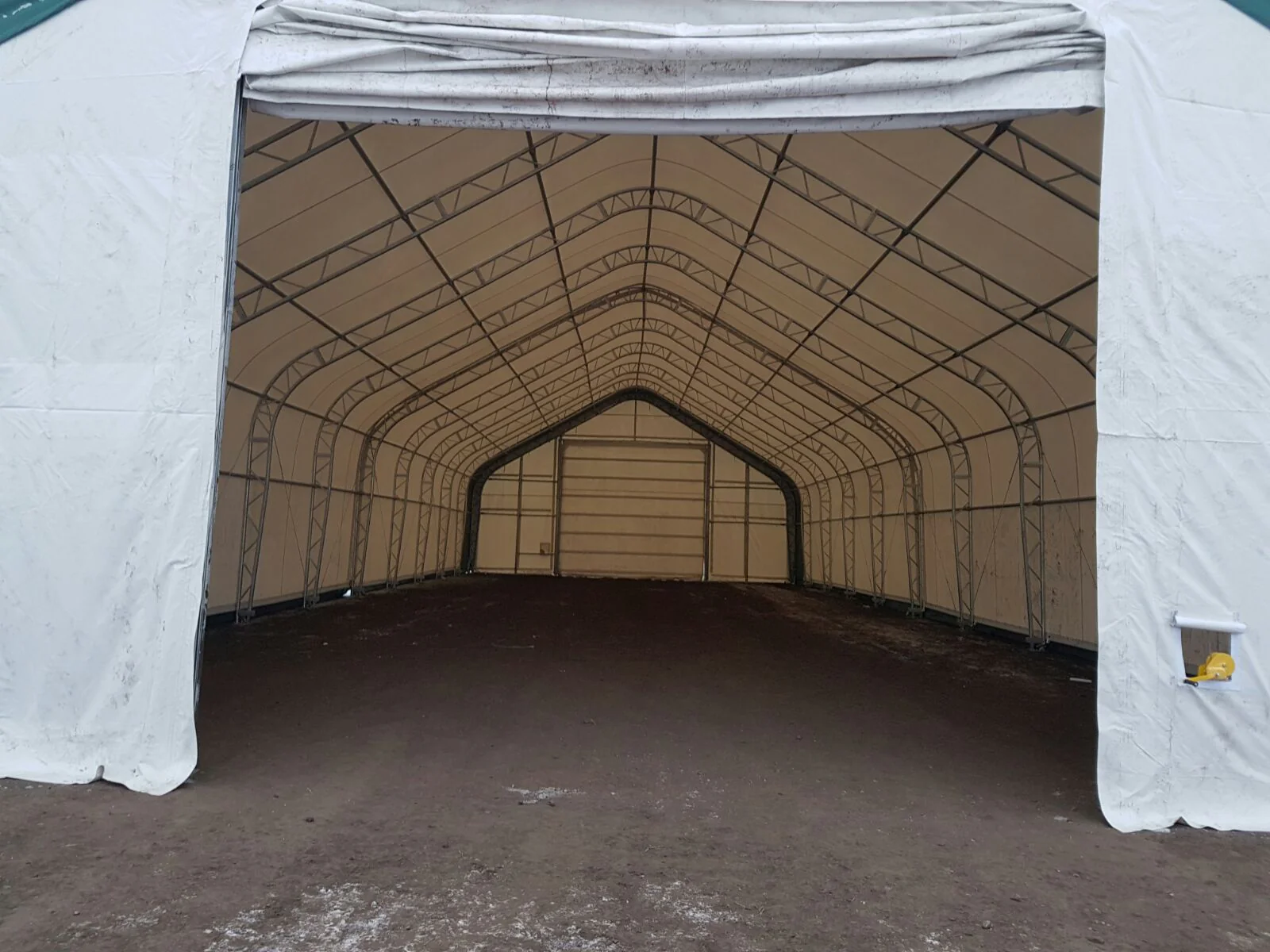

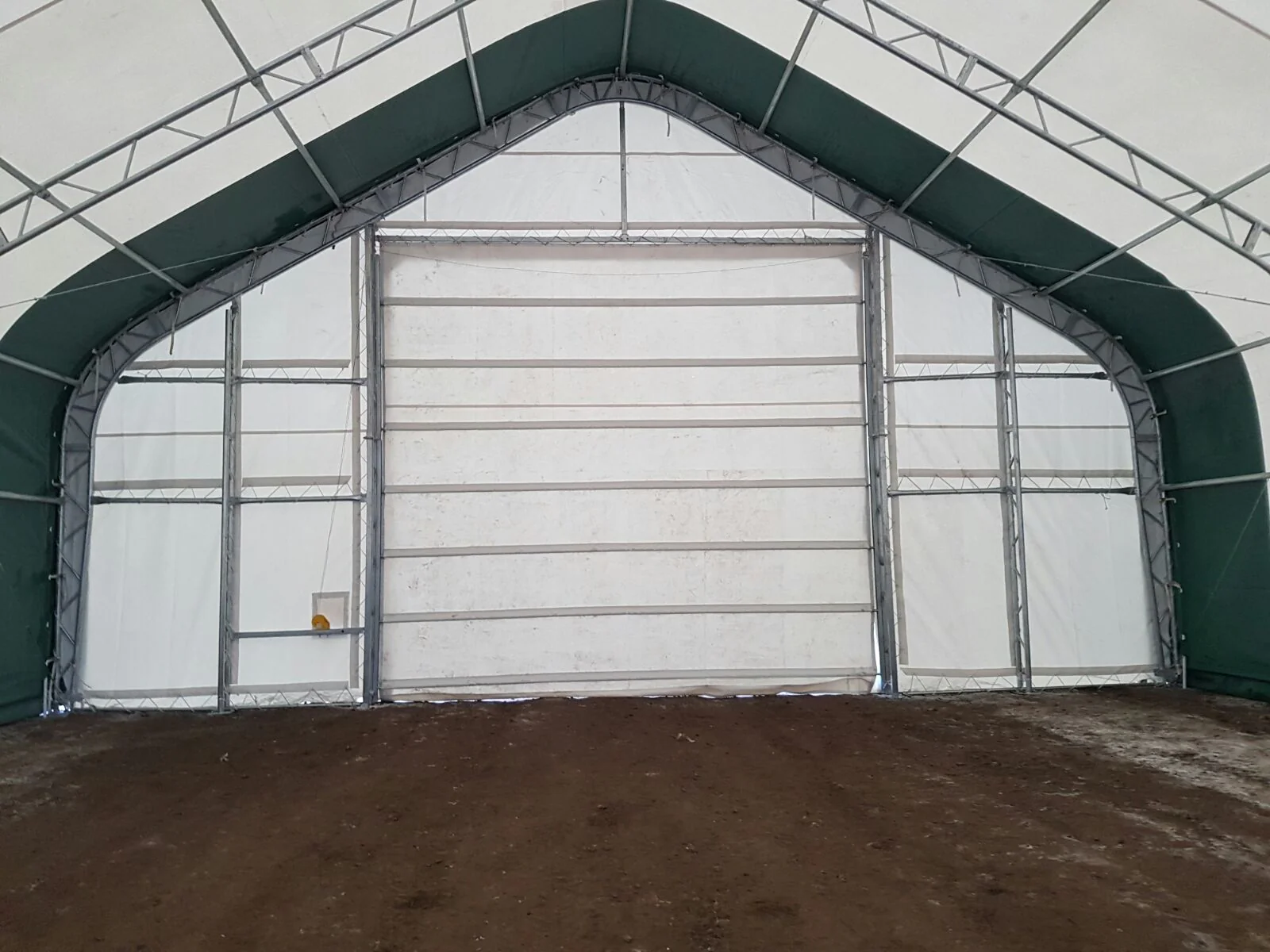

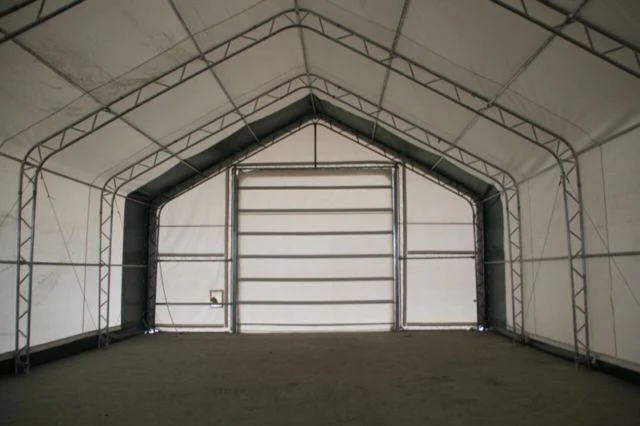

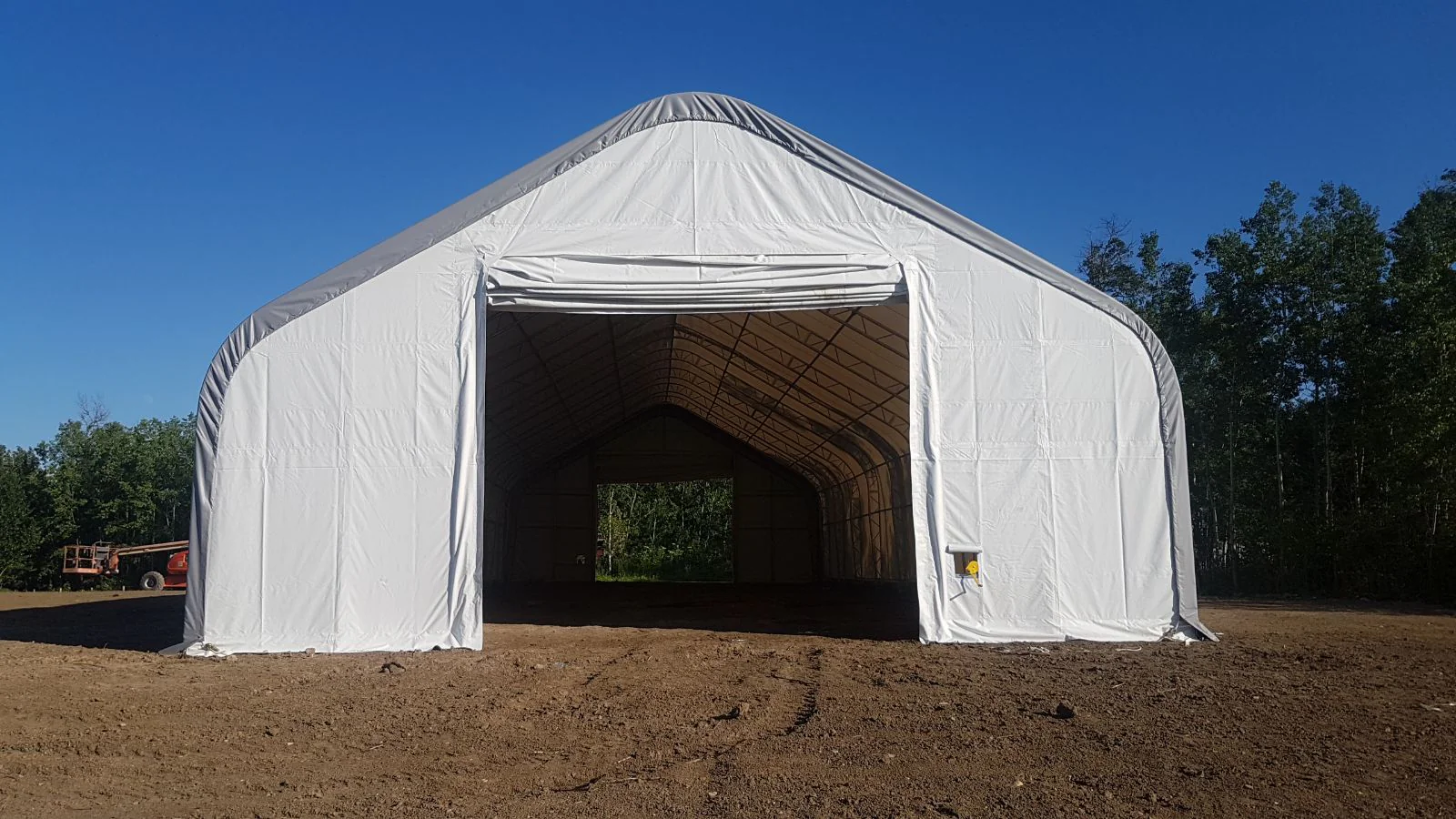

• Drive-Through Industrial Access: Features high-clearance mechanical roll-up doors designed for seamless entry and exit of semi-trucks, combines, and heavy loaders.

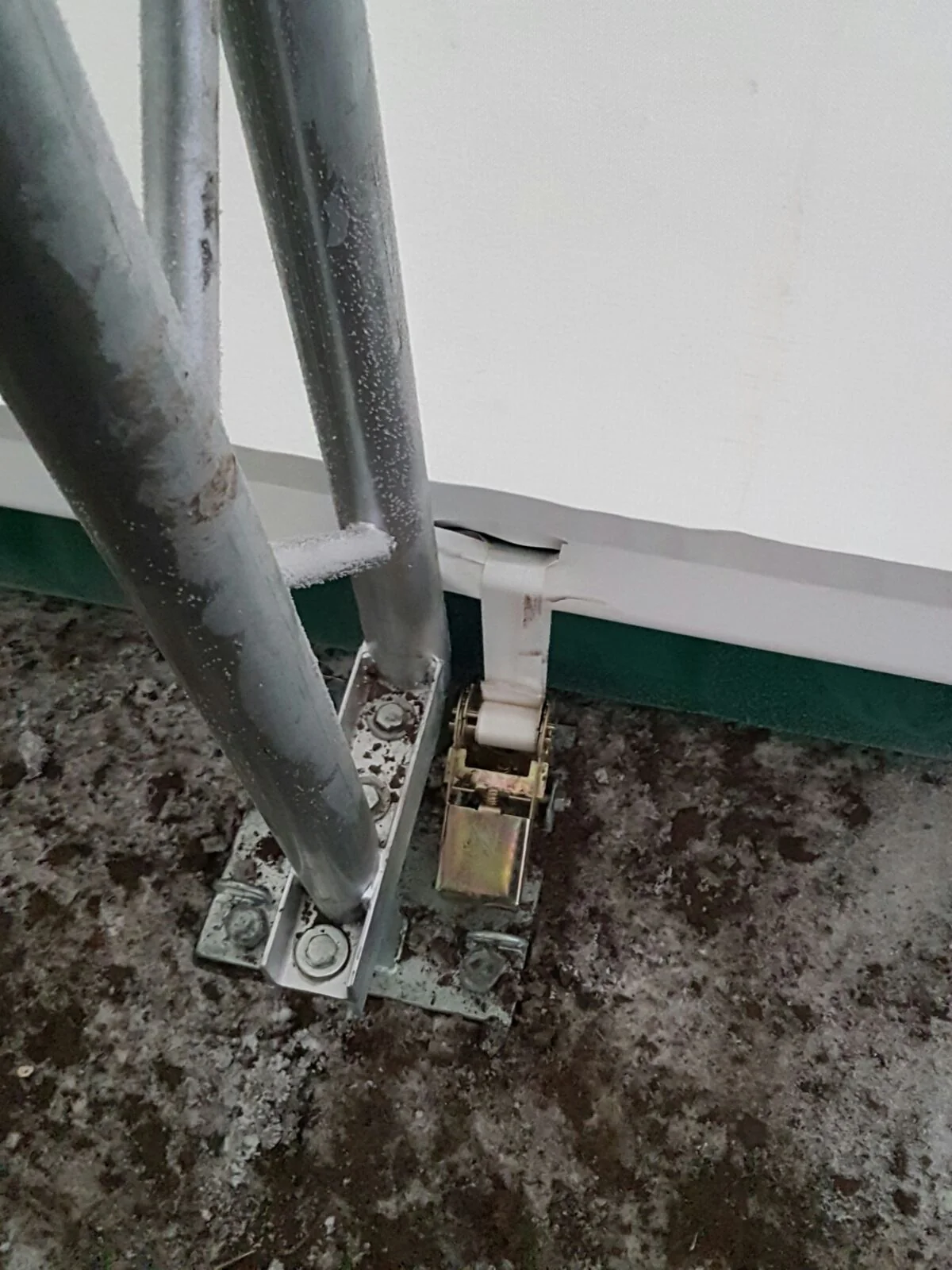

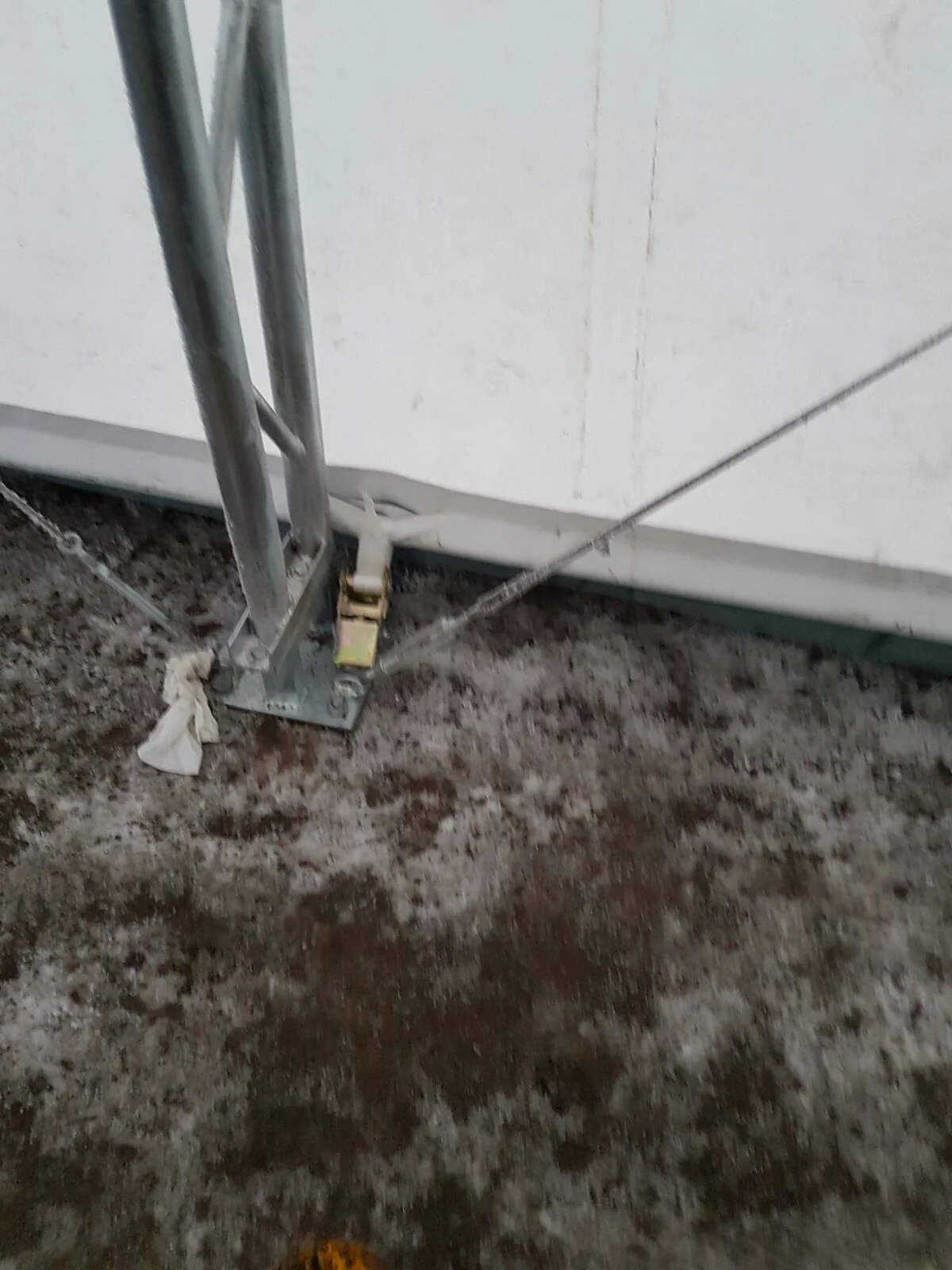

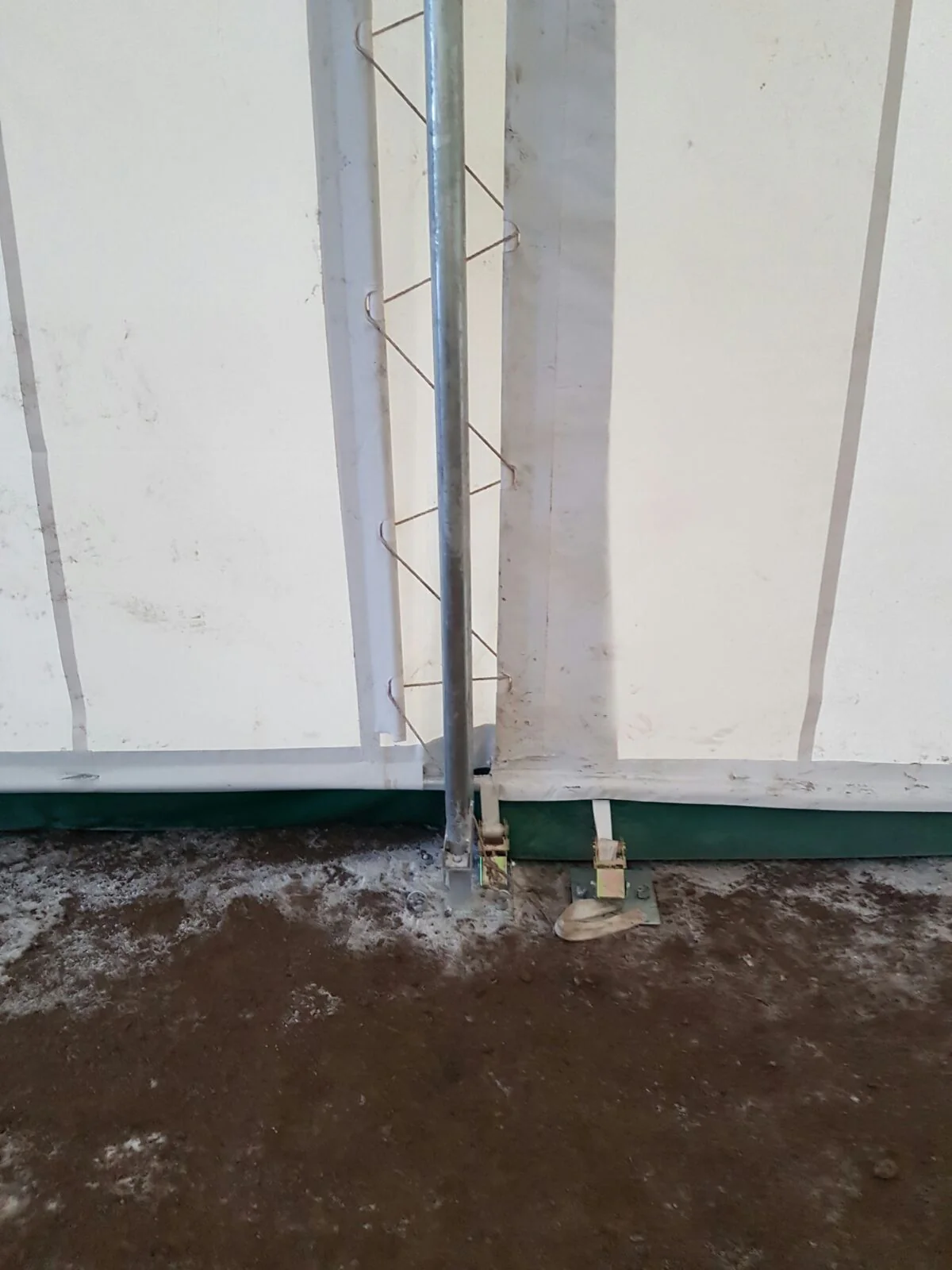

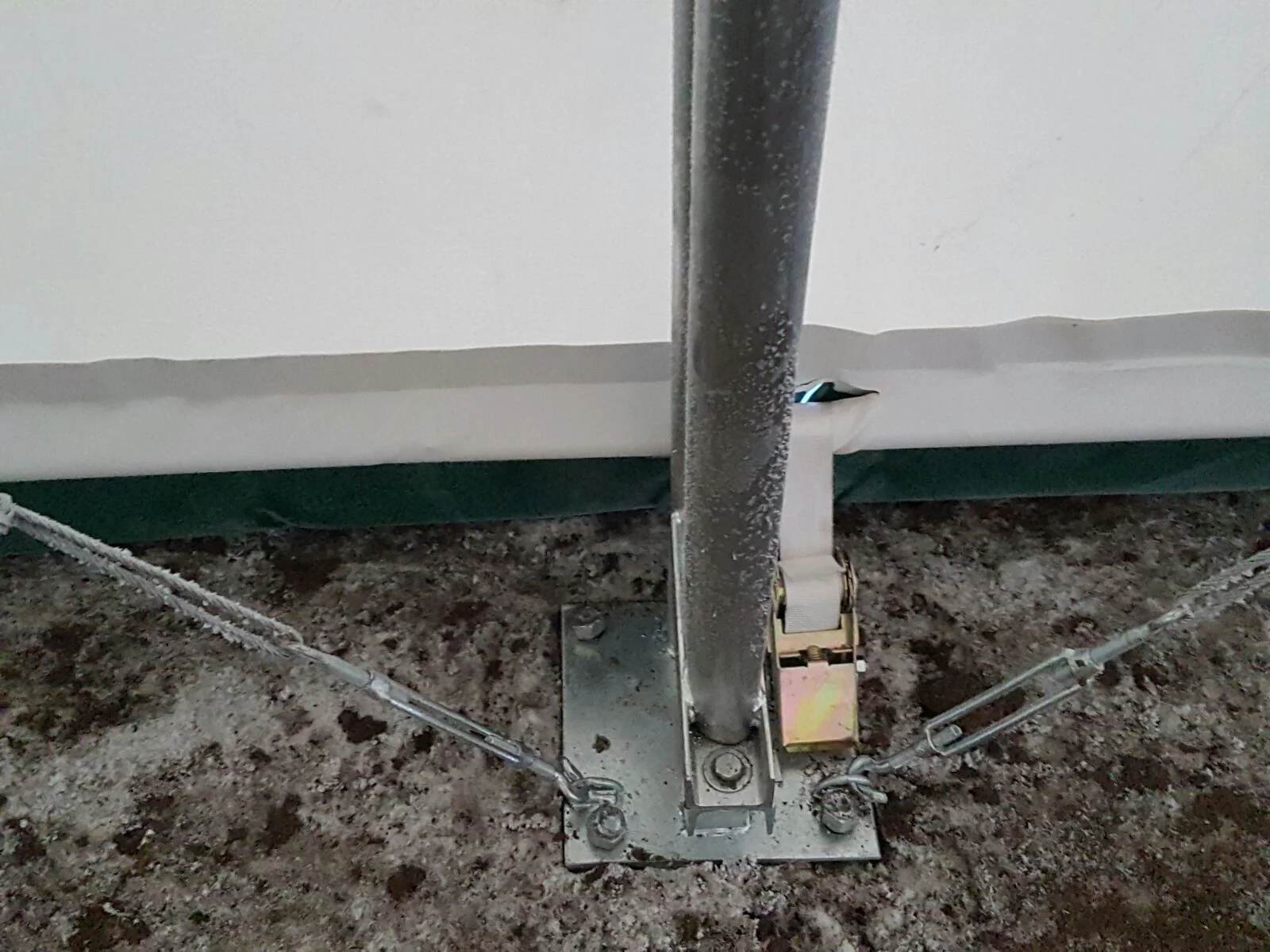

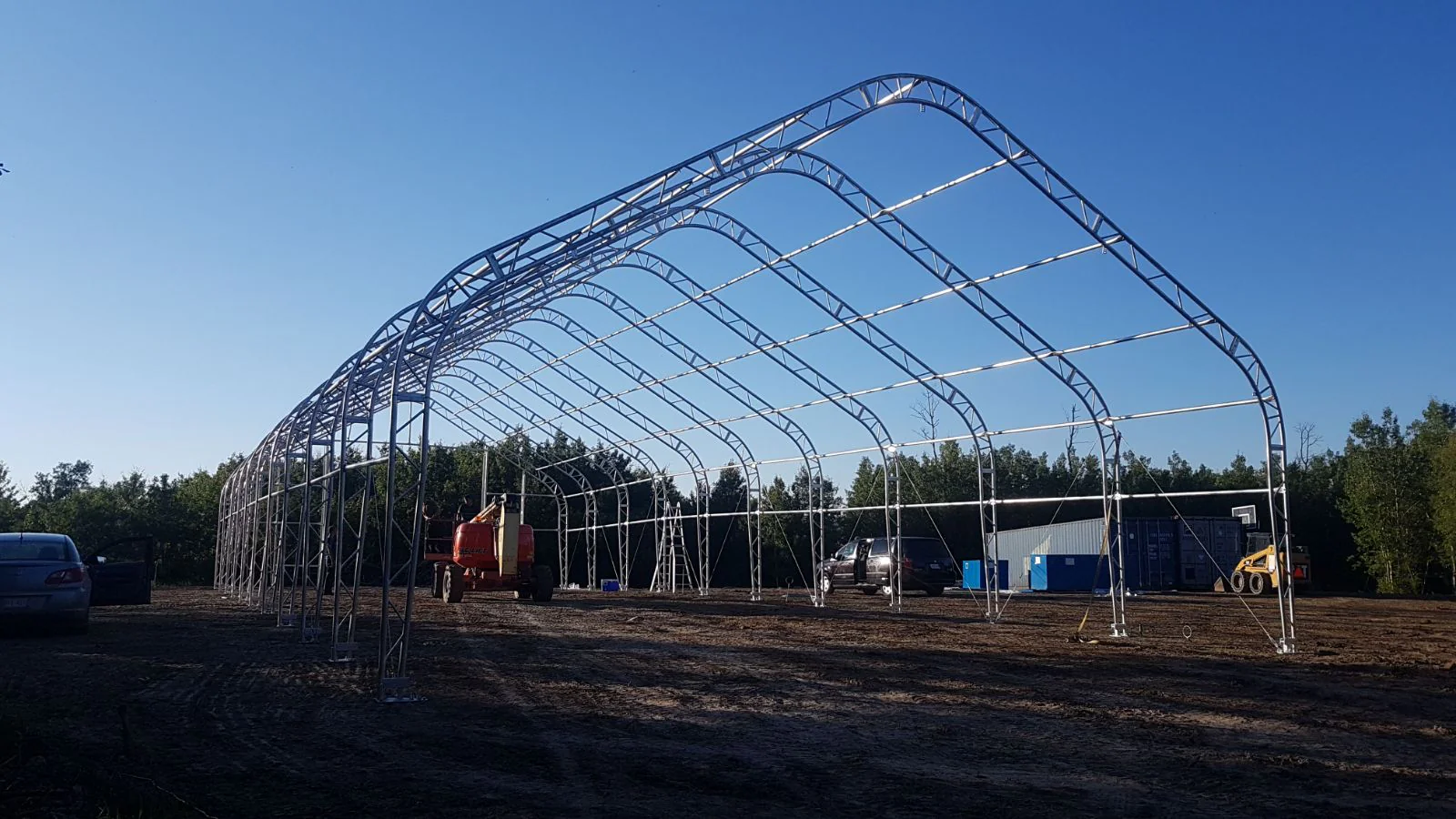

• Precision Bolt-Together Assembly: Arches are designed for efficient on-site setup without the need for welding, while heavy-duty steel base plates allow for secure anchoring to concrete or ground surfaces.

• Rapid Multi-Day Installation: Engineered for speed, with most models capable of being fully assembled in 4 days or less by a small professional crew.

SPECIFICATIONS BY VARIANT

SKU	Size (Metric: L x W x H)	Size (Imperial: L x W x H)	Fabric Weight
P406023P750	18.29 x 12.19 x 7.01 m	60 x 40 x 23 ft	26.5 oz PVC
P406023P650	18.29 x 12.19 x 7.01 m	60 x 40 x 23 ft	22.5 oz PVC
P408023P750	24.38 x 12.19 x 7.01 m	80 x 40 x 23 ft	22.5 oz PVC
P4010023P650	30.48 x 12.19 x 7.01 m	100 x 40 x 23 ft	22.5 oz PVC
HD406423P610	19.51 x 12.19 x 7.01 m	64 x 40 x 23 ft	22.5 oz PVC
HD408023P610	24.38 x 12.19 x 7.01 m	80 x 40 x 23 ft	22.5 oz PVC
HD4010423P610	31.70 x 12.19 x 7.01 m	104 x 40 x 23 ft	22.5 oz PVC

TECHNICAL DATA

• Frame Material: 60 mm (2 3/8") 15-Gauge Hot-dip galvanized double-truss steel

• Peak Height: 7.01 m (23')

• Fabric Properties: 100% Waterproof, UV-resistant, Frost-proof, Flame-Retardant

• Color Availability: All White or Gray Caps (Contact for current site availability)

• Assembly: Bolt-together arch design; No welding required

IDEAL APPLICATIONS

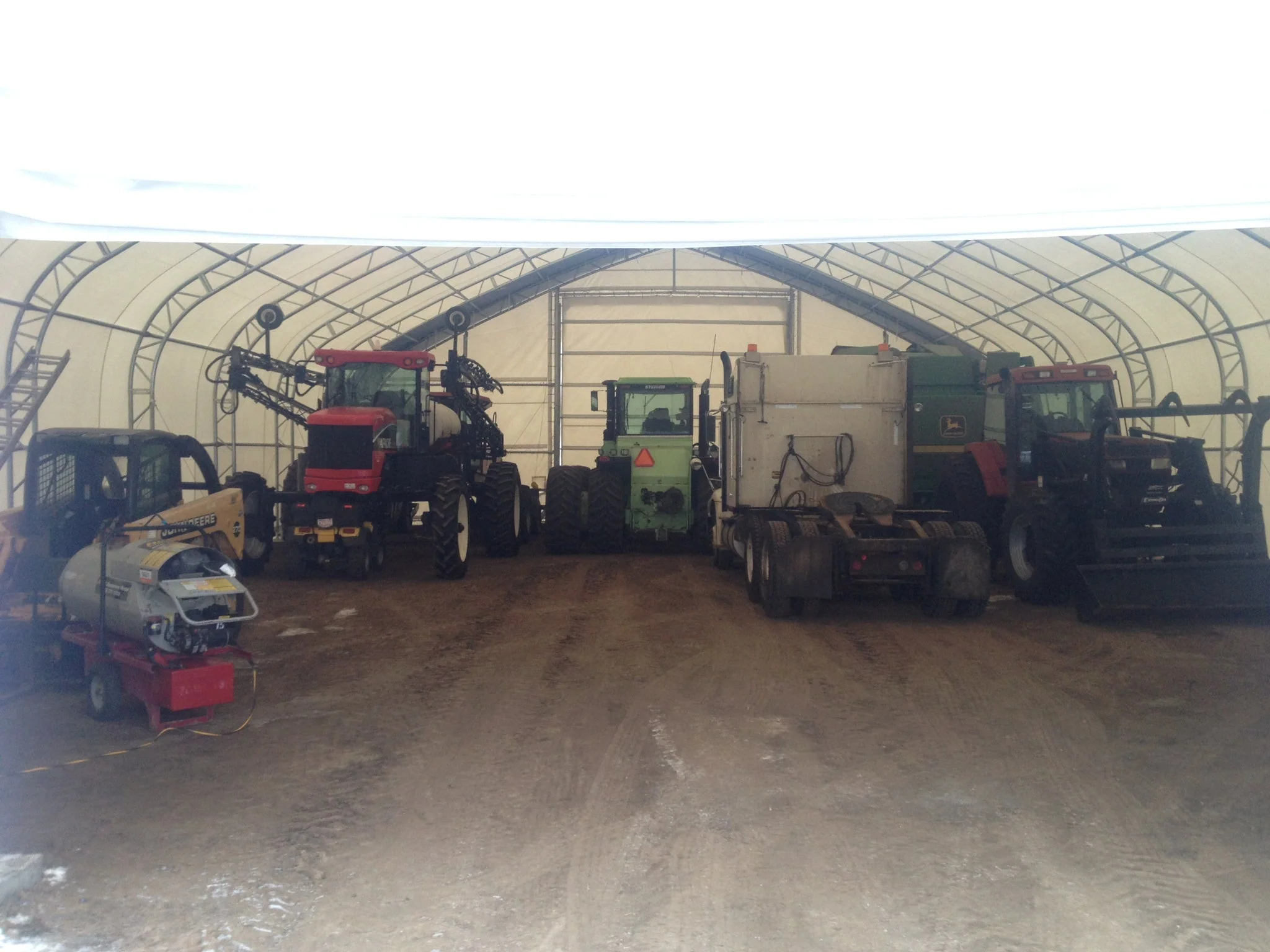

• Commercial Fleet Garages – High-clearance storage for semi-trucks, trailers, and logistics vehicles.

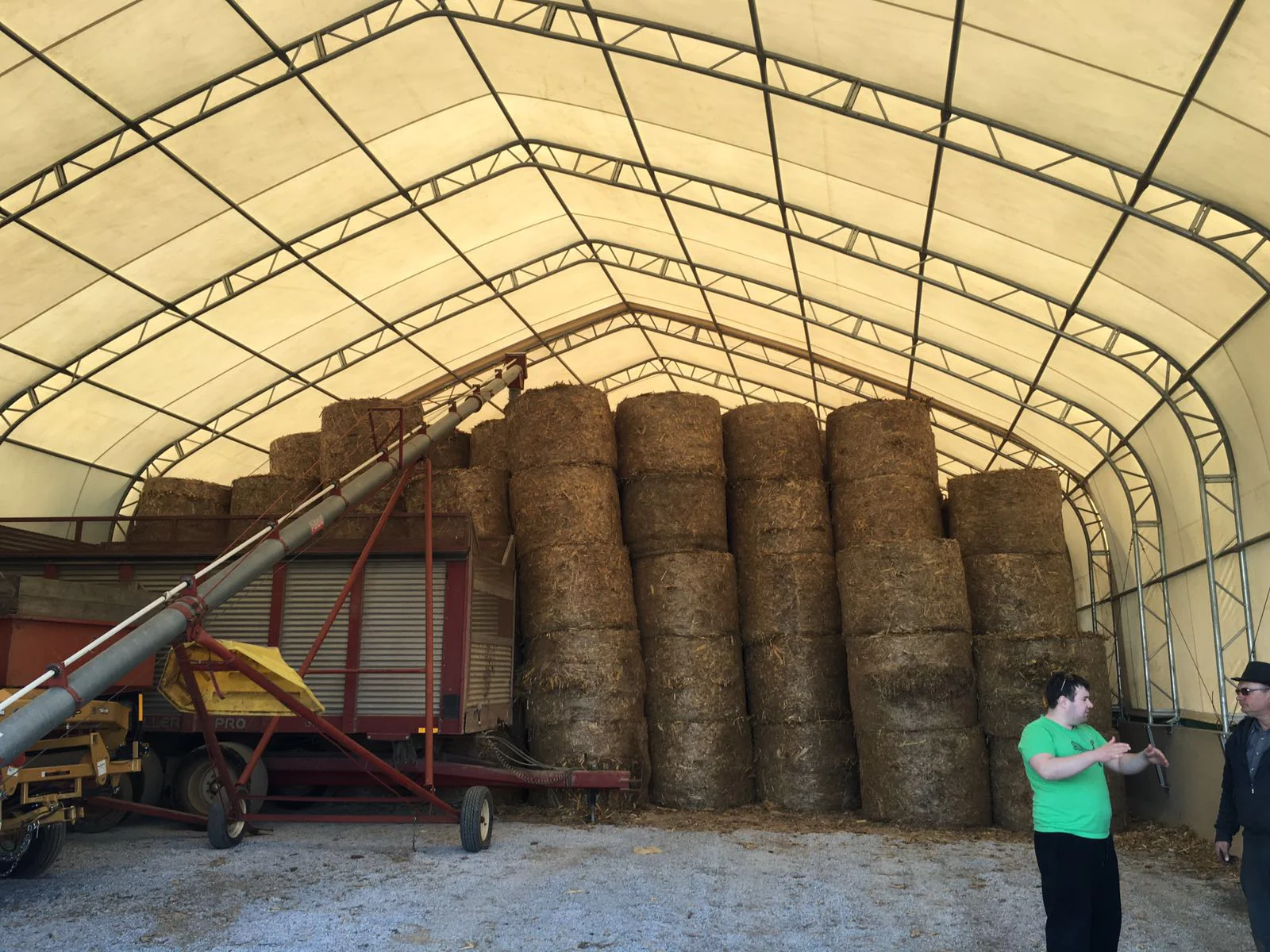

• Heavy Agricultural Storage – Protecting large-scale combines, tractors, and hay inventory from the elements.

• Industrial Logistics Hubs – Rapidly deployable warehouse space for seasonal bulk inventory or overflow.

• Construction & Fabrication – Providing a clean, dry, and professional environment for on-site fabrication and material storage.
