50 Ft Wide Double Truss Storage Buildings – Heavy-Duty PVC Shelter

Professional 15.24 m (50') Wide Double Truss Industrial Storage Building – Elite PVC Shelter

Extreme-Duty Reinforced Engineering for Large-Scale Warehousing, Logistics, and Heavy Industrial Operations

OVERVIEW

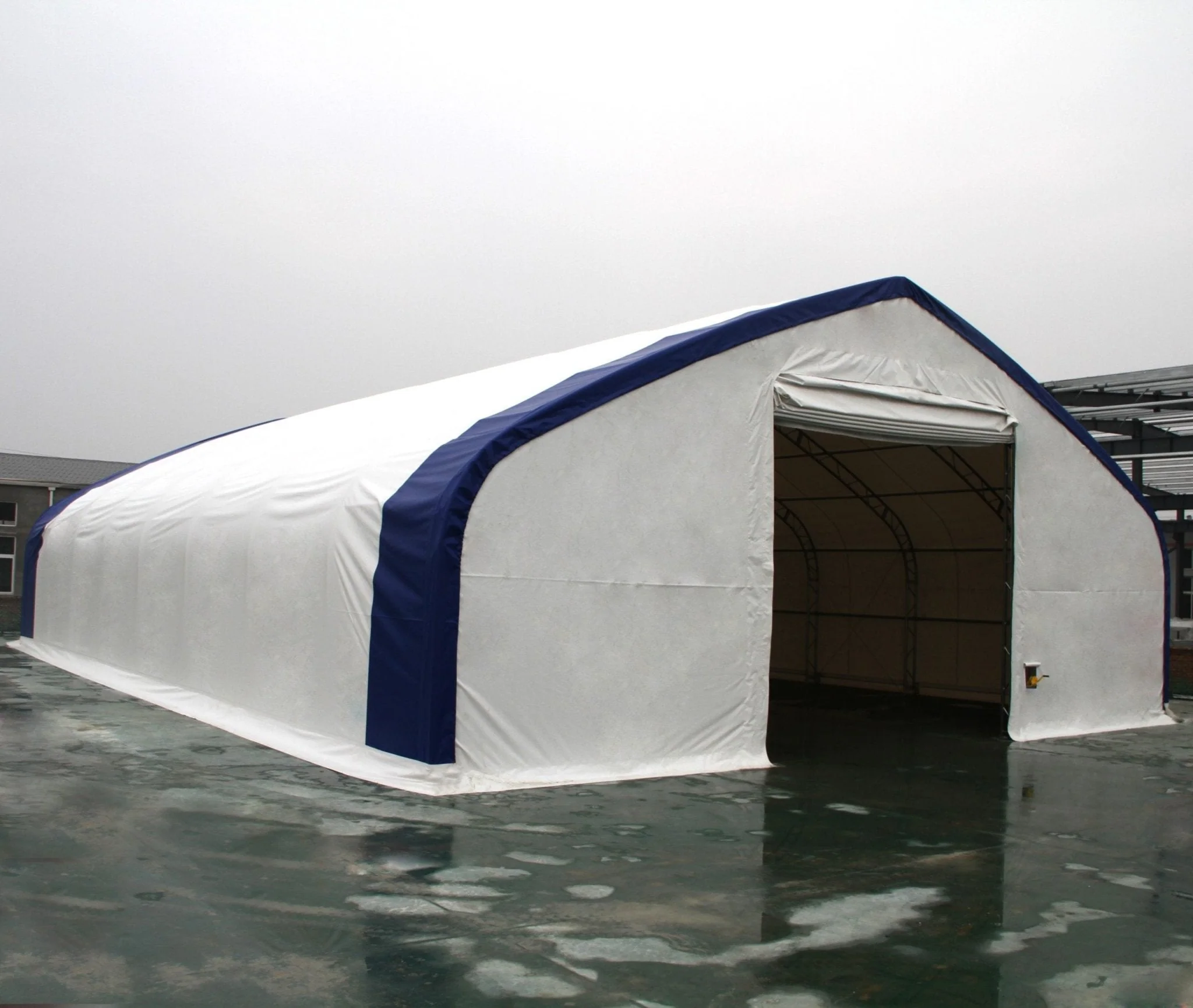

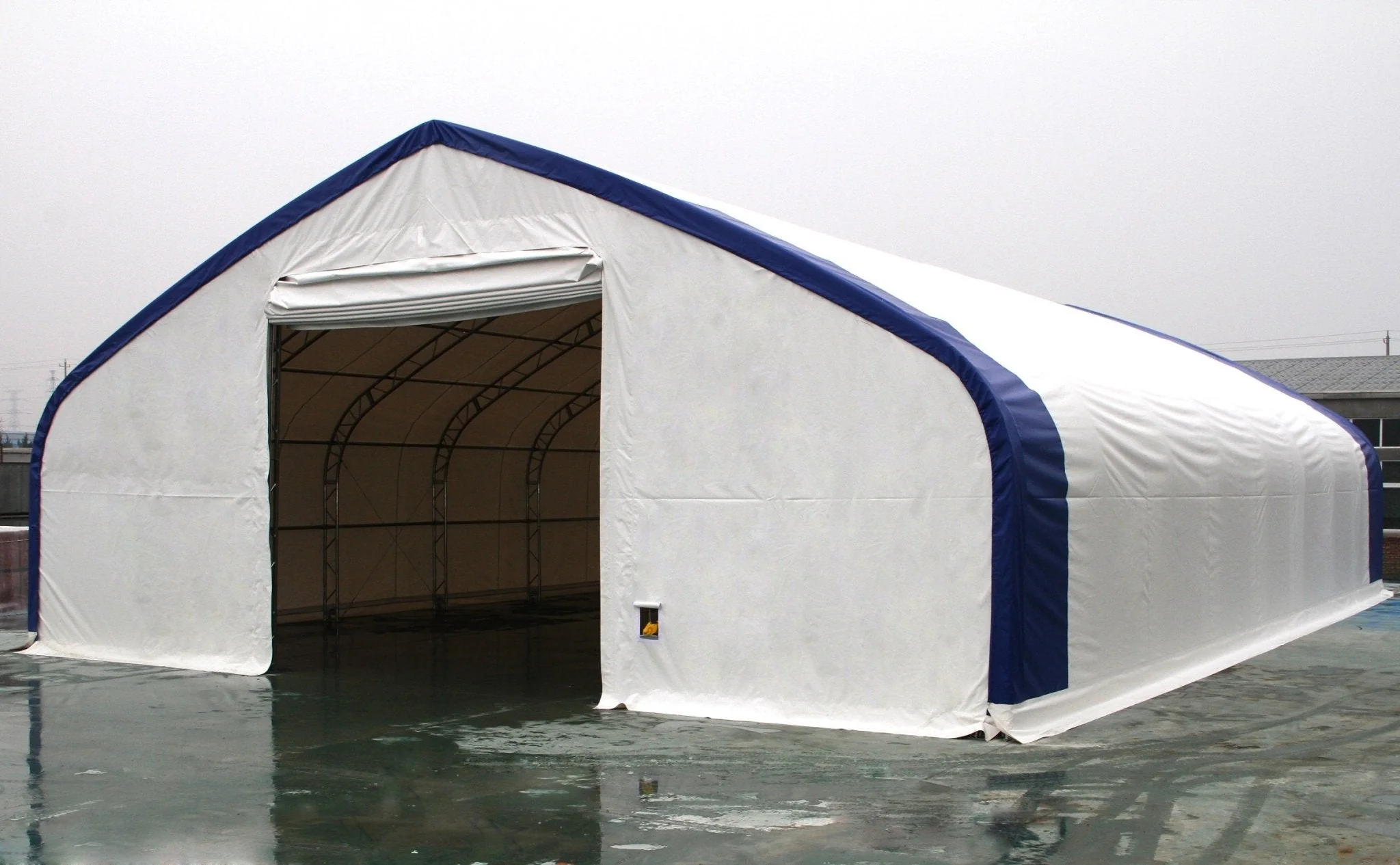

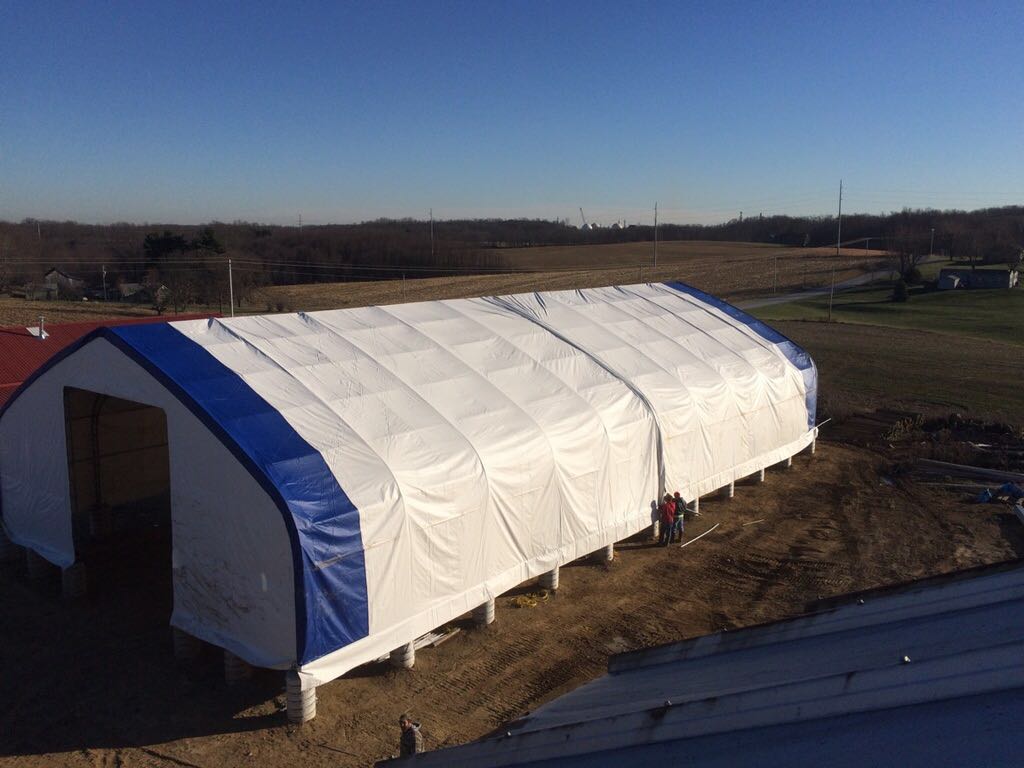

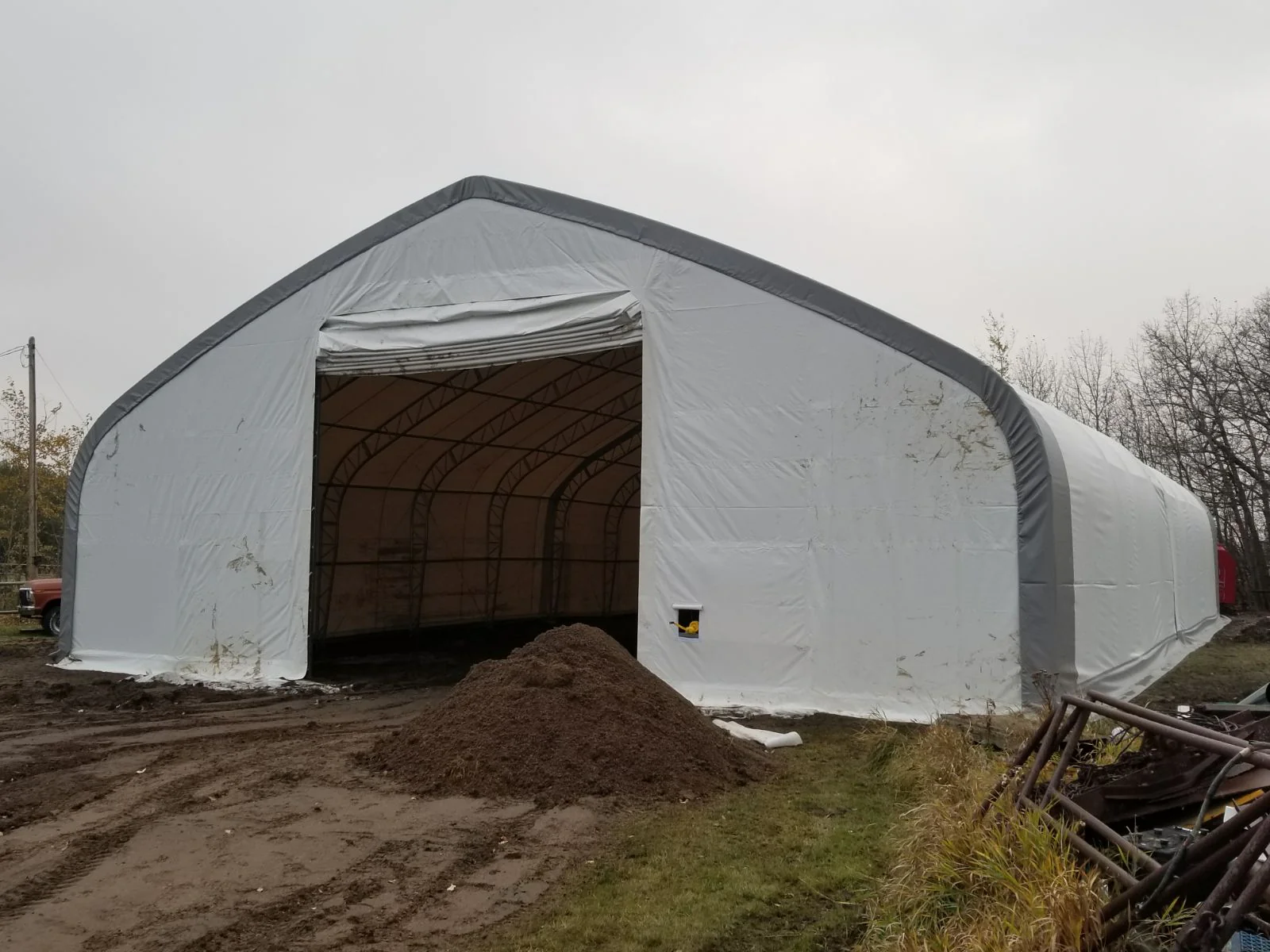

Command the highest level of site protection with the Professional 15.24 m (50') Wide Double Truss Storage Building. Engineered for massive volume requirements and extreme climatic exposure, this structure features a reinforced double-truss galvanized steel frame, offering the highest available resistance to wind and snow loads. Clad in premium 26.5 oz (900 gsm) PVC fabric, this shelter provides an airtight, 100% waterproof, and fire-retardant environment for heavy machinery, bulk inventory, and commercial logistics. With peak heights reaching 7.01 m (23') and customizable arch spacing for extreme load zones, this series represents the pinnacle of portable industrial fabric buildings.

SYSTEM HIGHLIGHTS

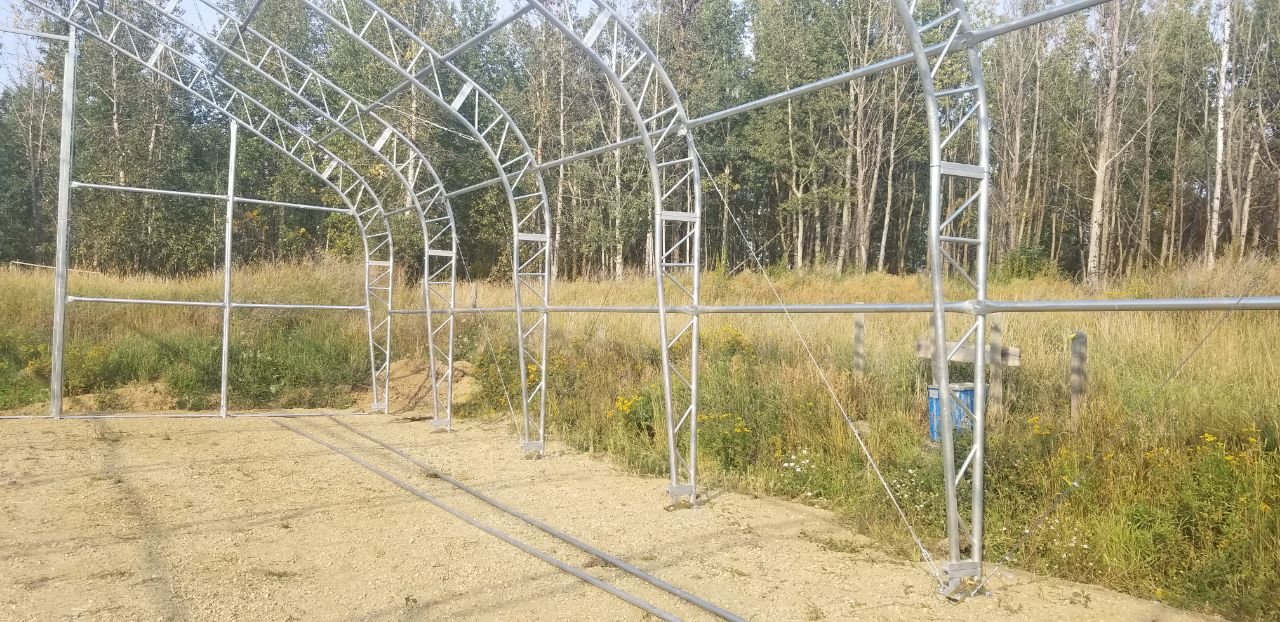

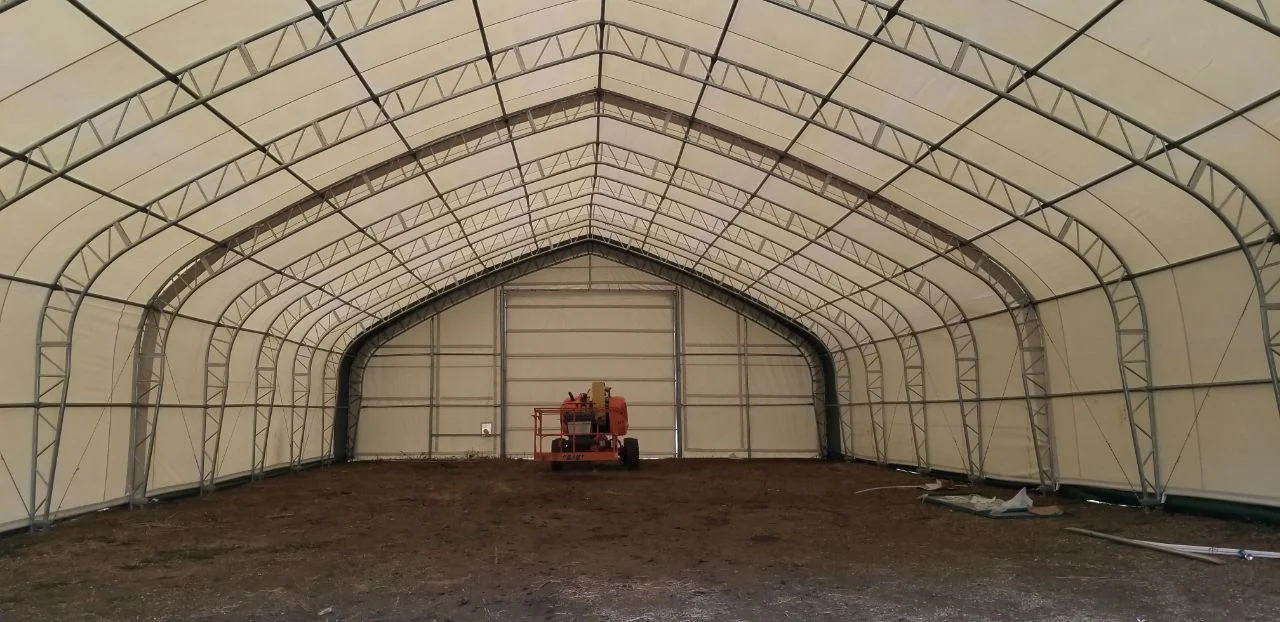

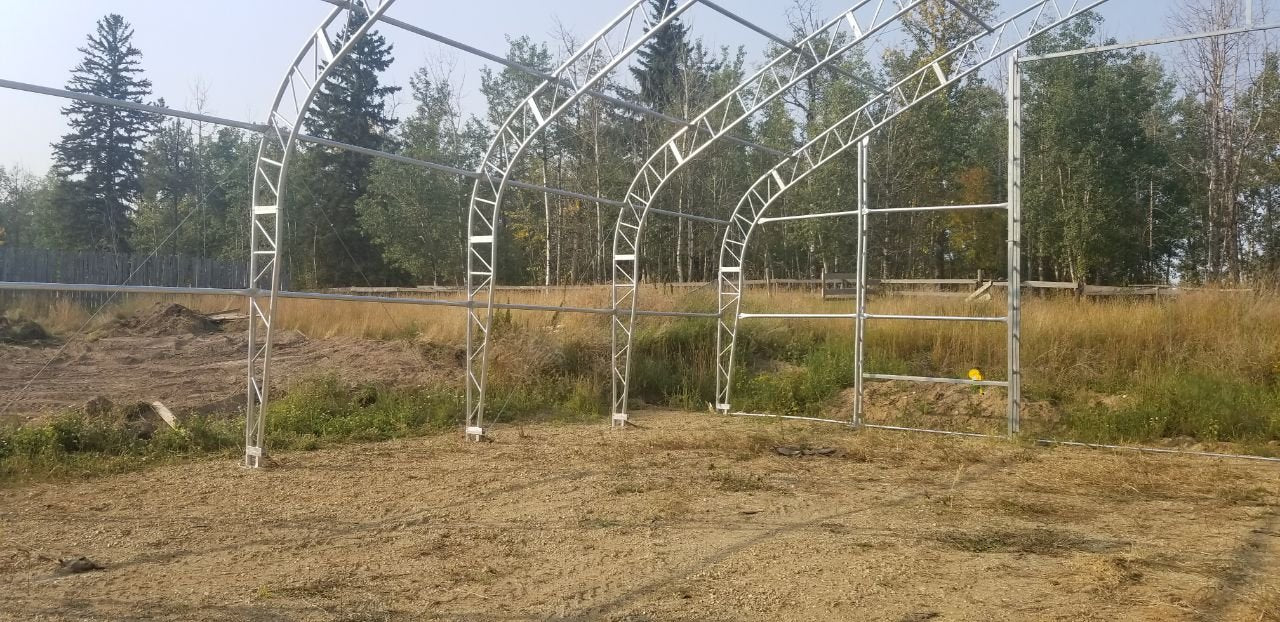

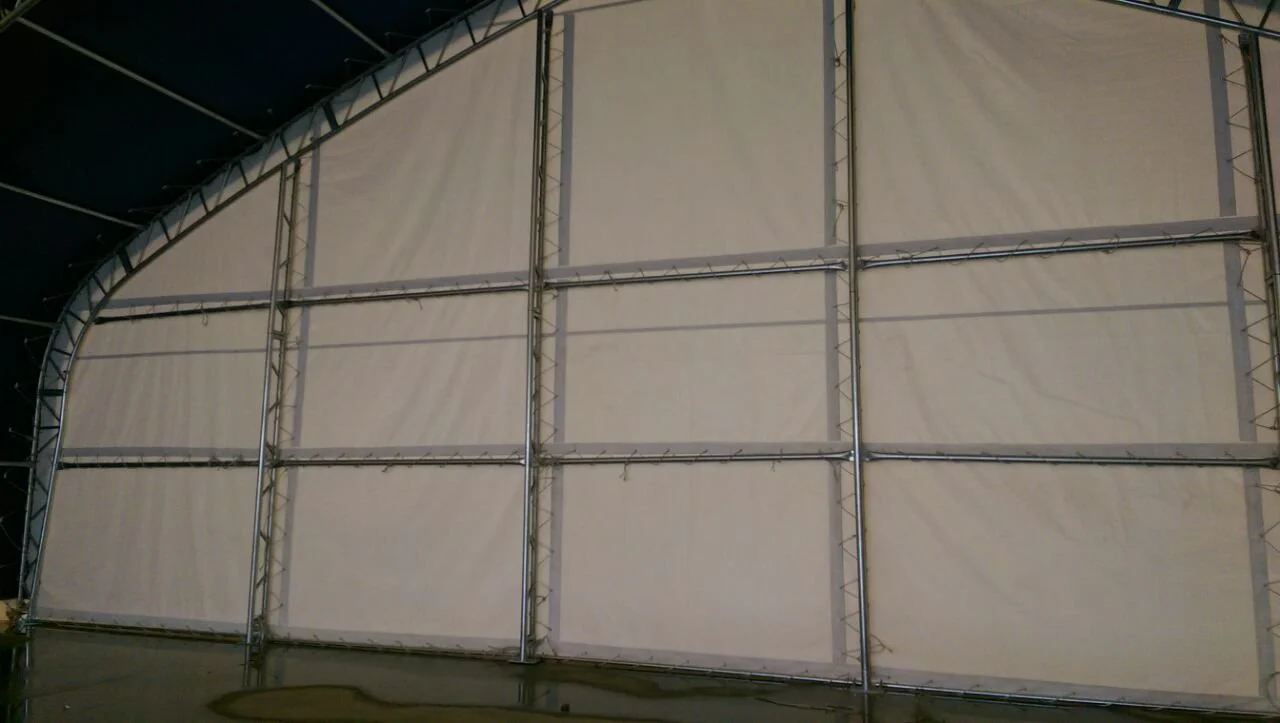

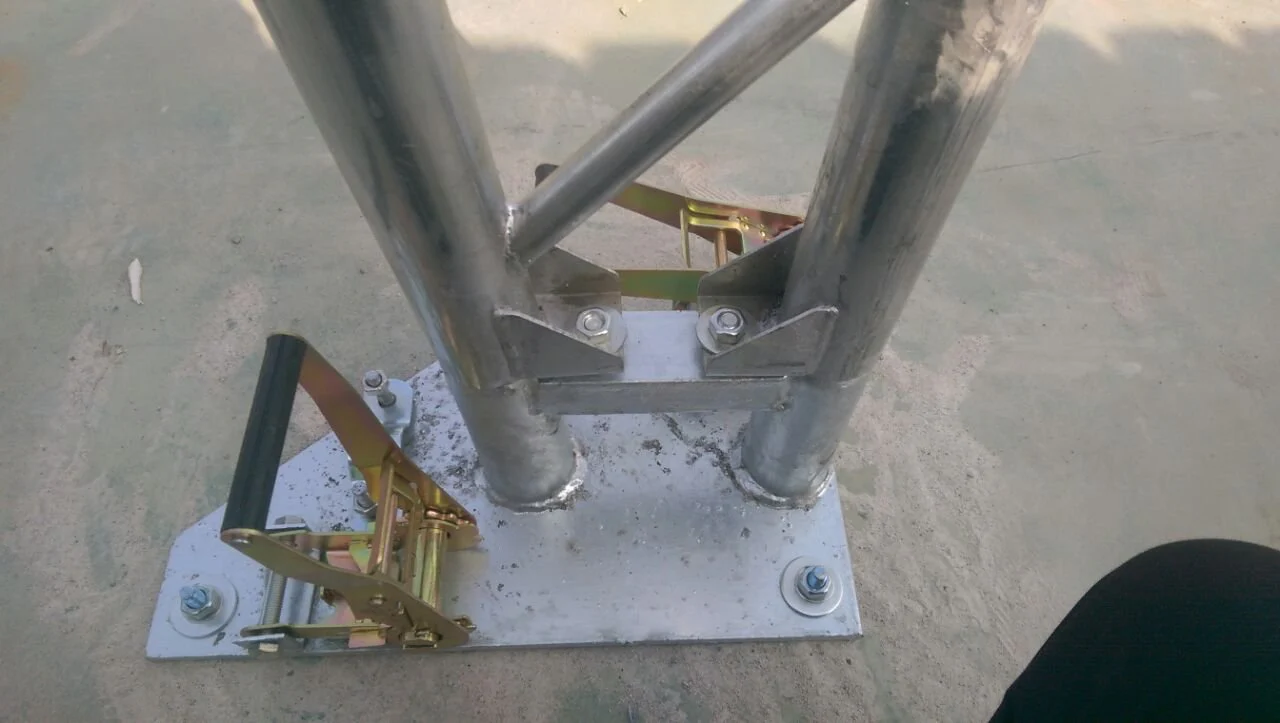

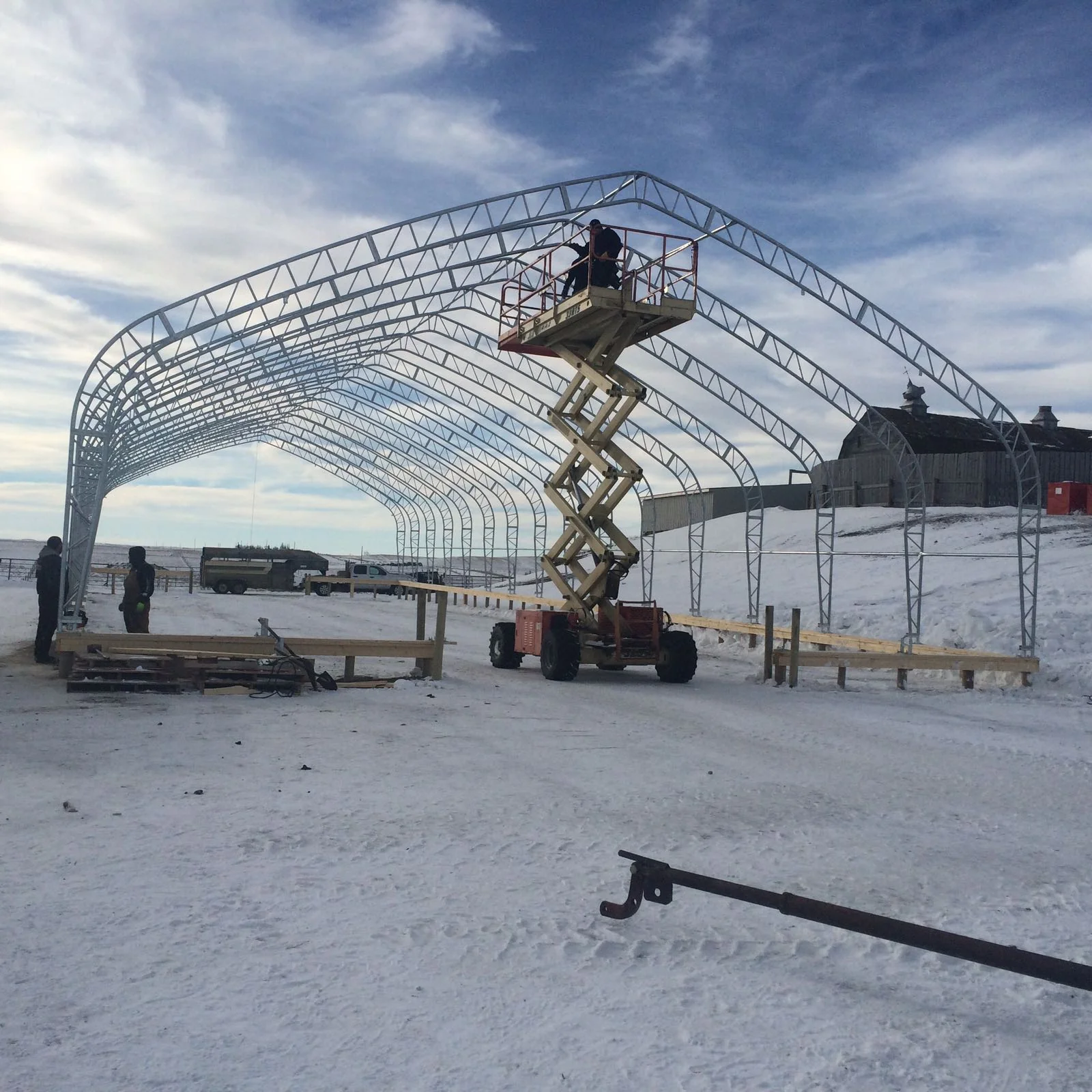

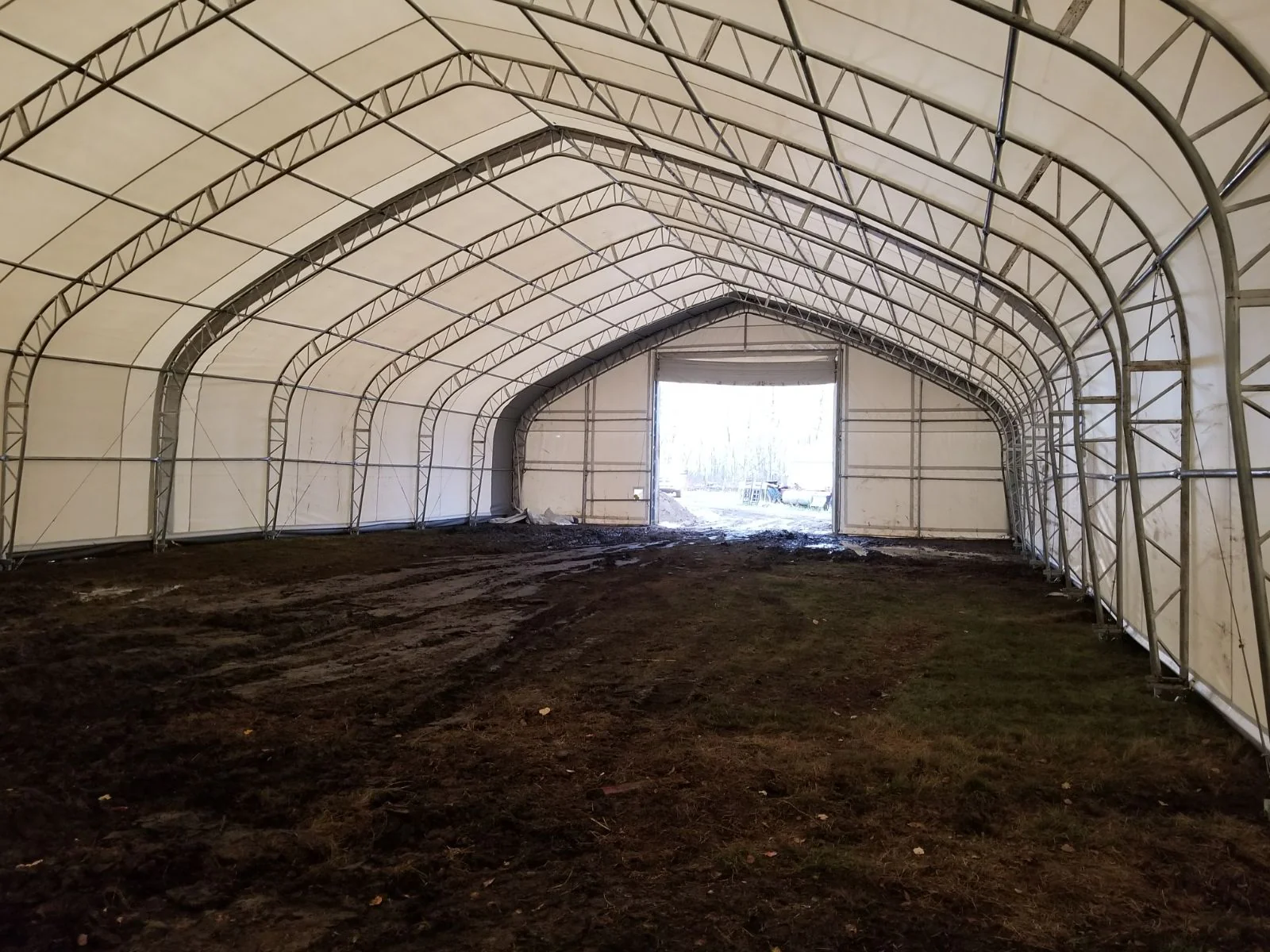

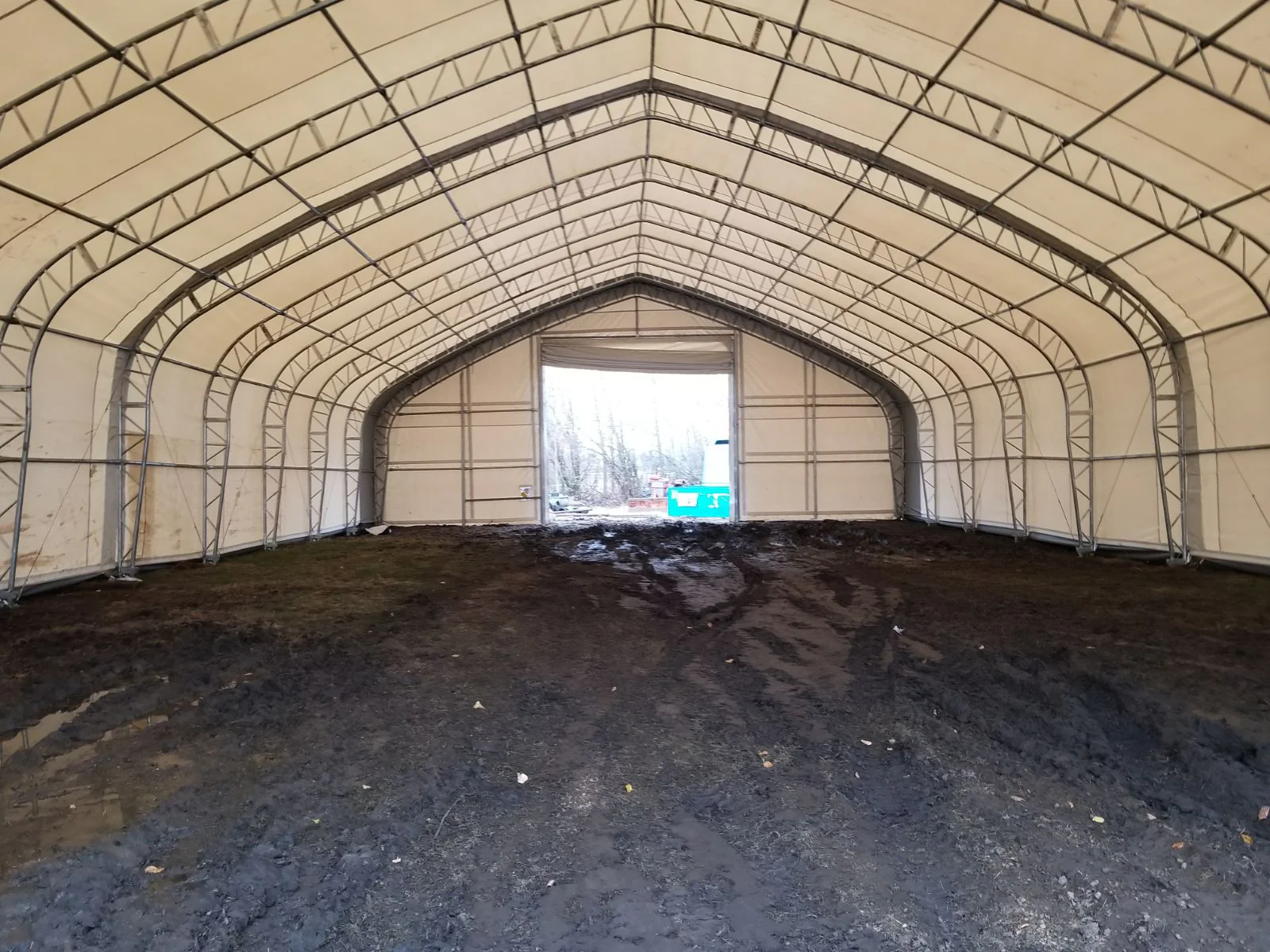

• Industrial Double Truss Architecture: Features hot-dip galvanized steel pipes in a reinforced double-truss configuration, engineered to eliminate structural flex and survive severe weather cycles.

• Elite 26.5 oz PVC Membrane: High-density, commercial-grade PVC that is UV-stabilized, frost-resistant, and flame-retardant, offering a 15-year prorated lifecycle in harsh outdoor environments.

• Dual Performance Configurations:

  • Standard Series: 3.05 m (10') arch spacing with 60 mm steel tubing; ideal for standard industrial storage and vehicle housing.

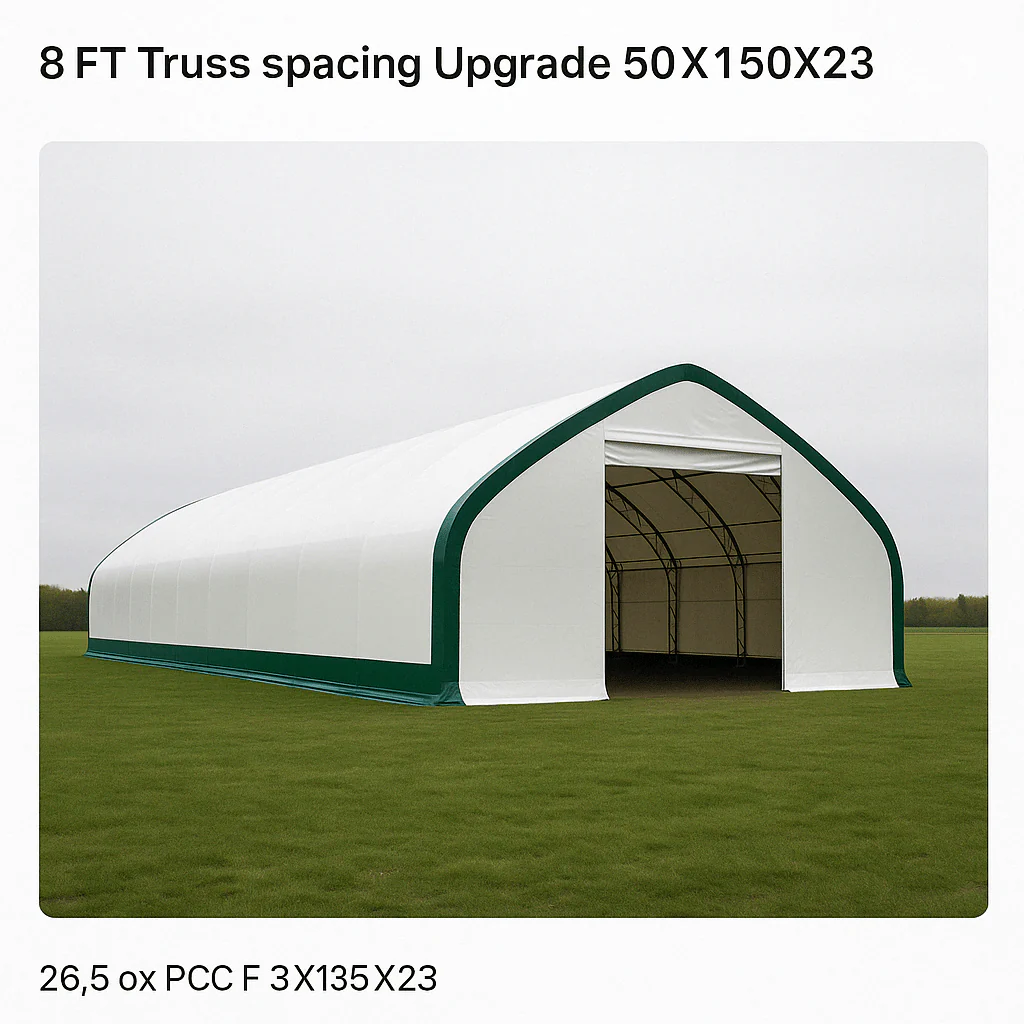

  • Heavy-Duty DPM Series: 2.44 m (8') arch spacing with massive 76 mm (3.0") steel tubing; engineered for extreme snow loads (40 lbs/sq ft) and heavy-duty industrial use.

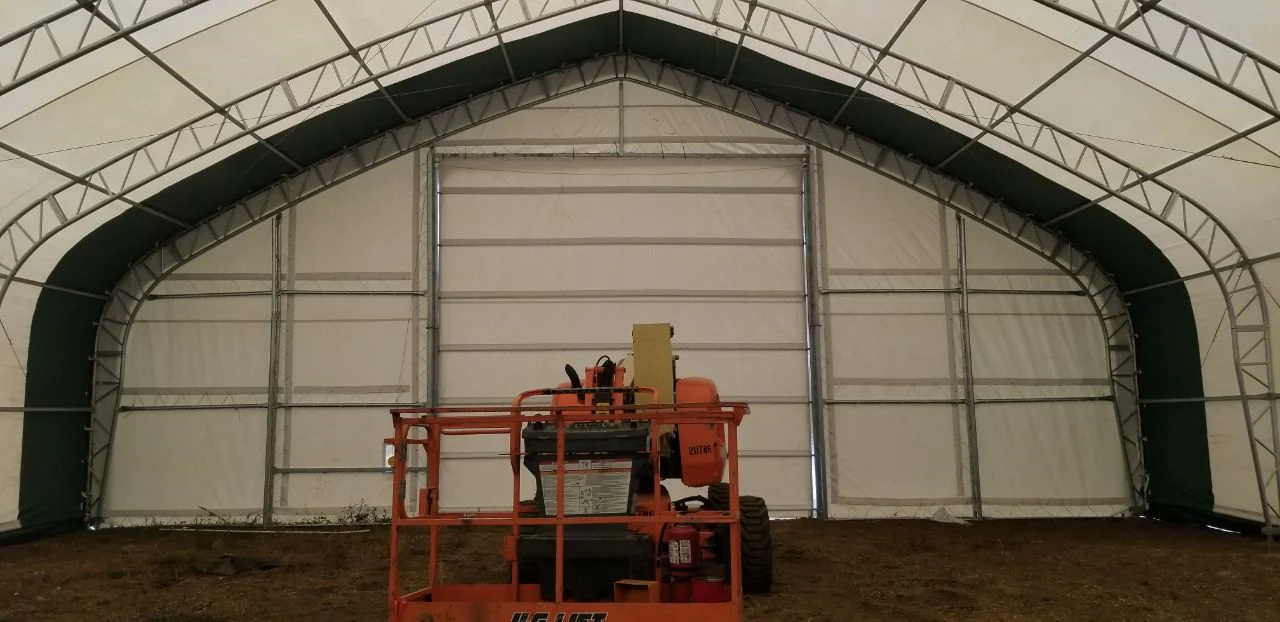

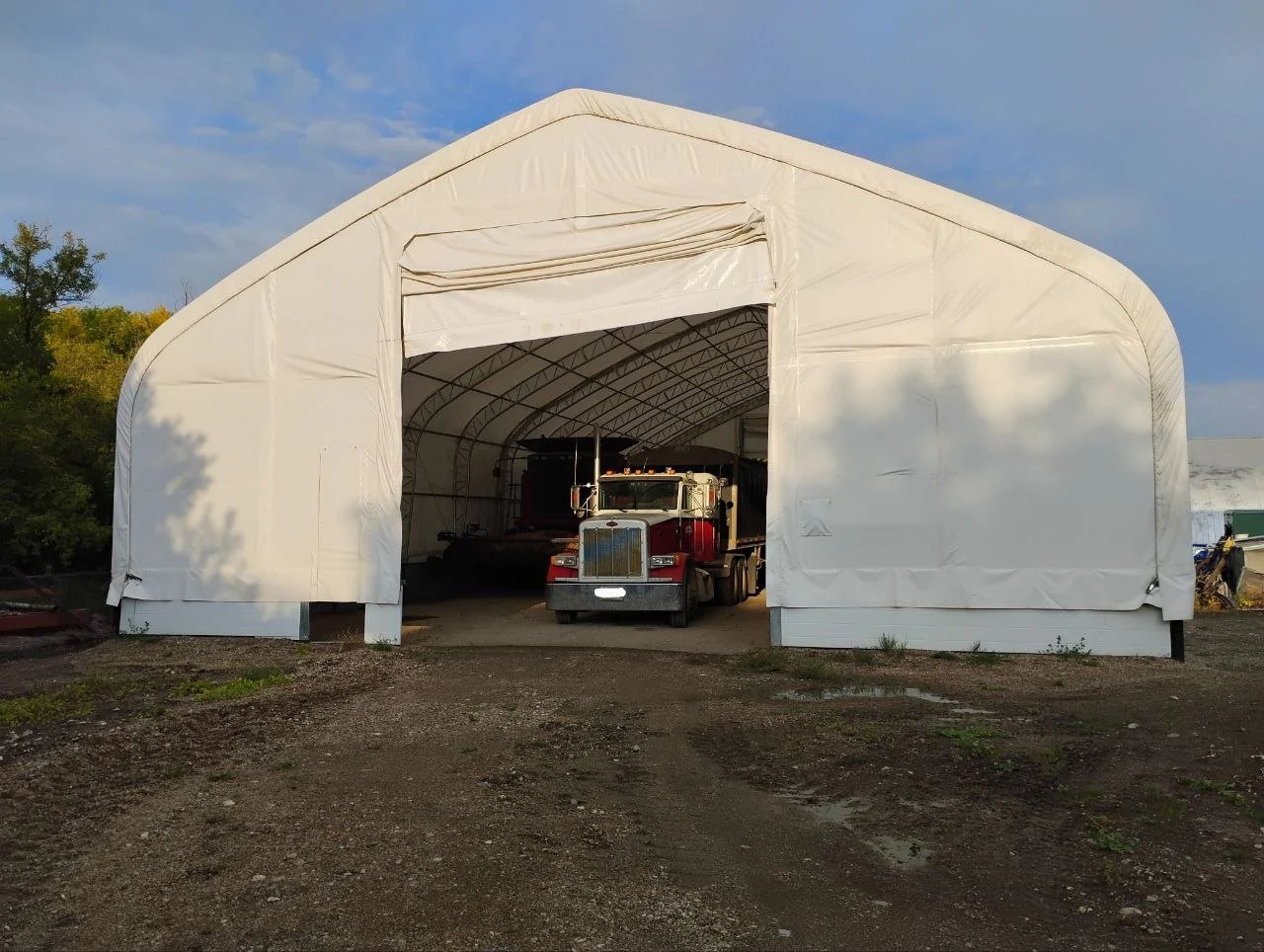

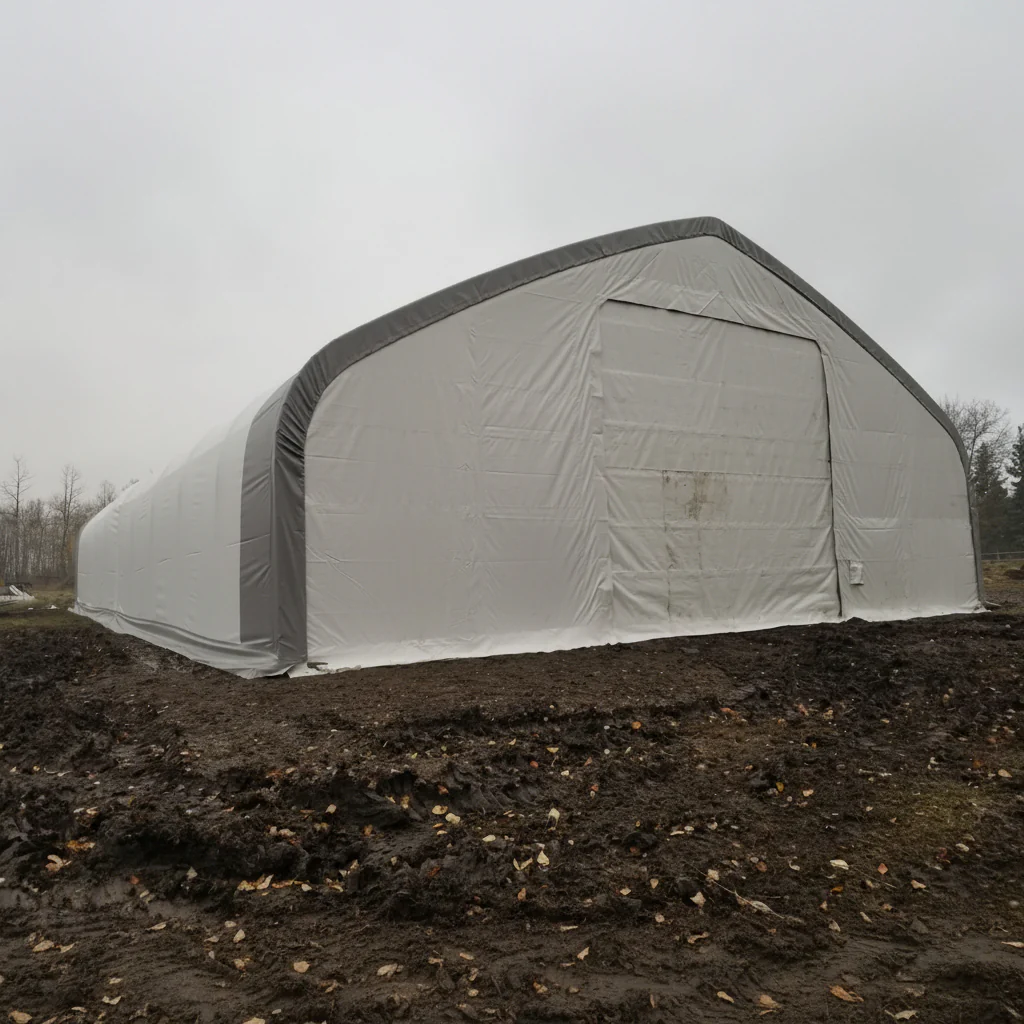

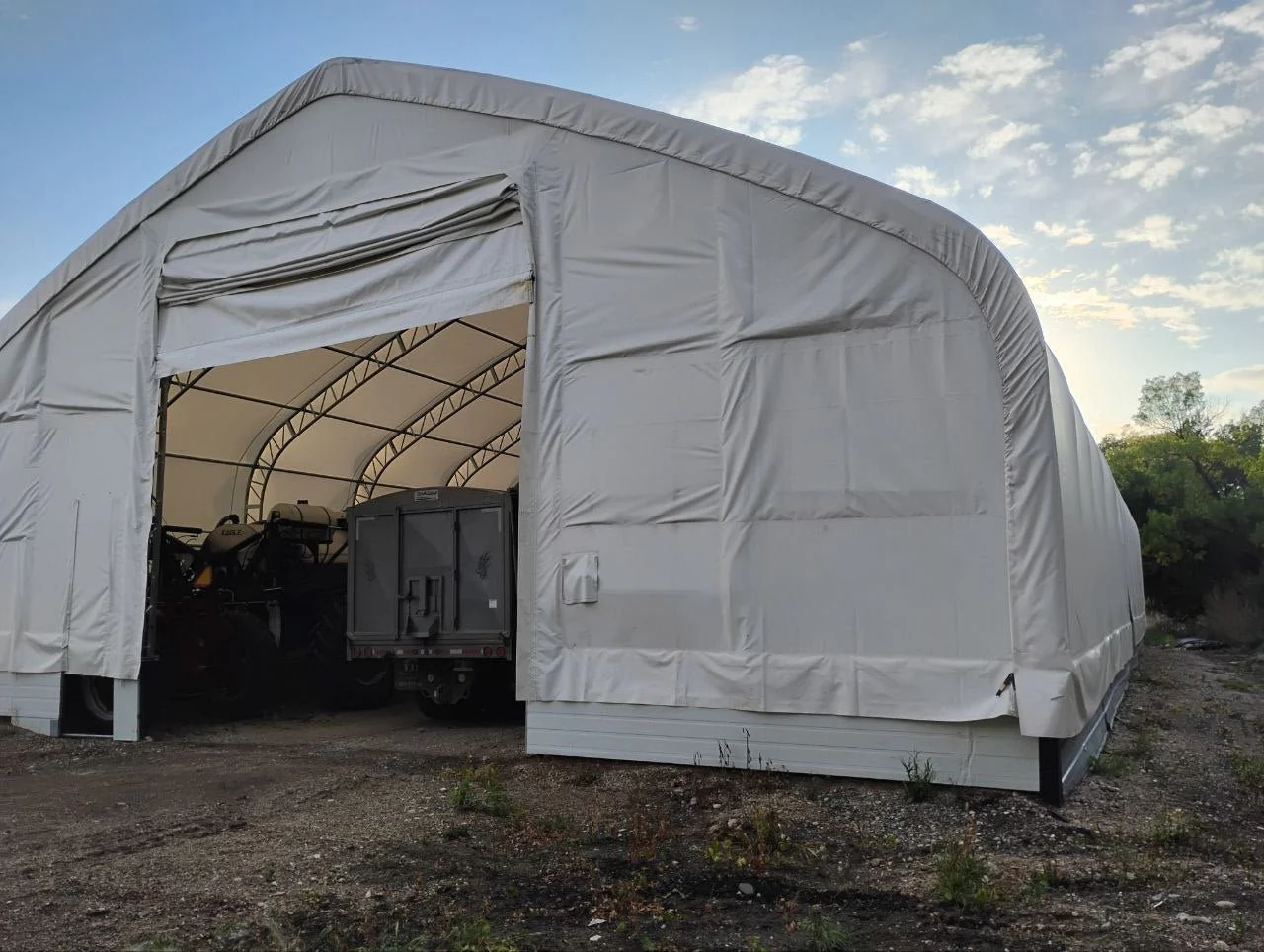

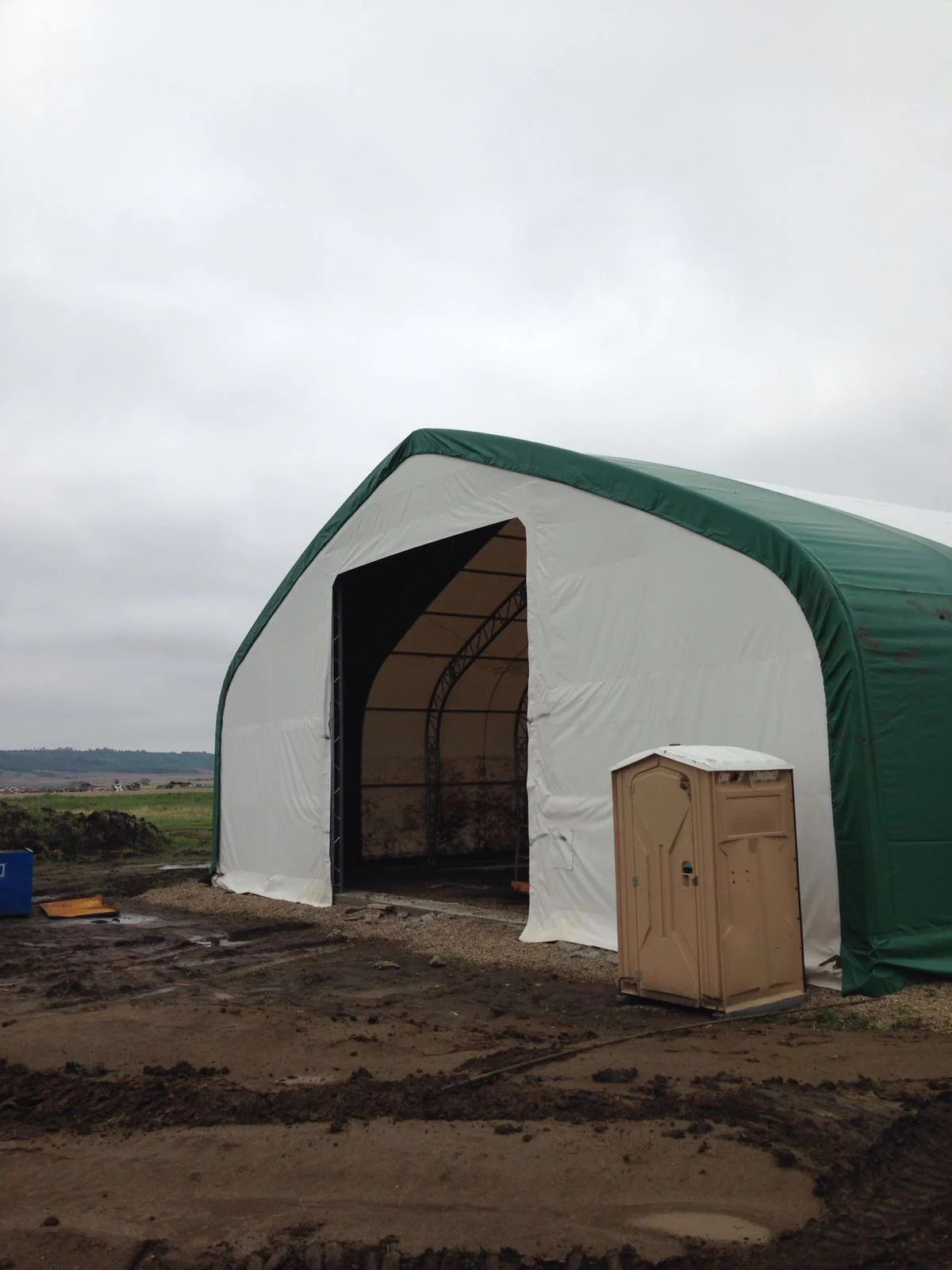

• High-Clearance Winch Doors: The DPM series features massive 5.49 m x 4.88 m (18' x 16') winch-operated doors at both ends, facilitating the movement of oversized industrial equipment and semi-trailers.

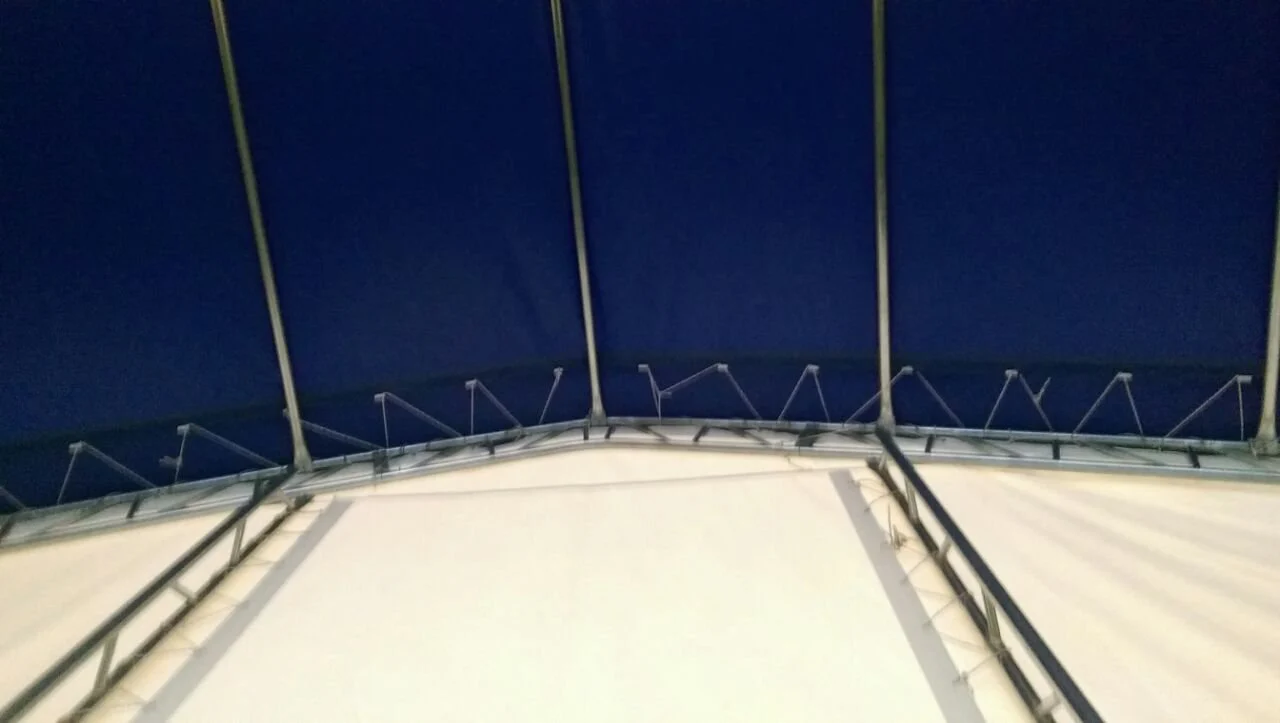

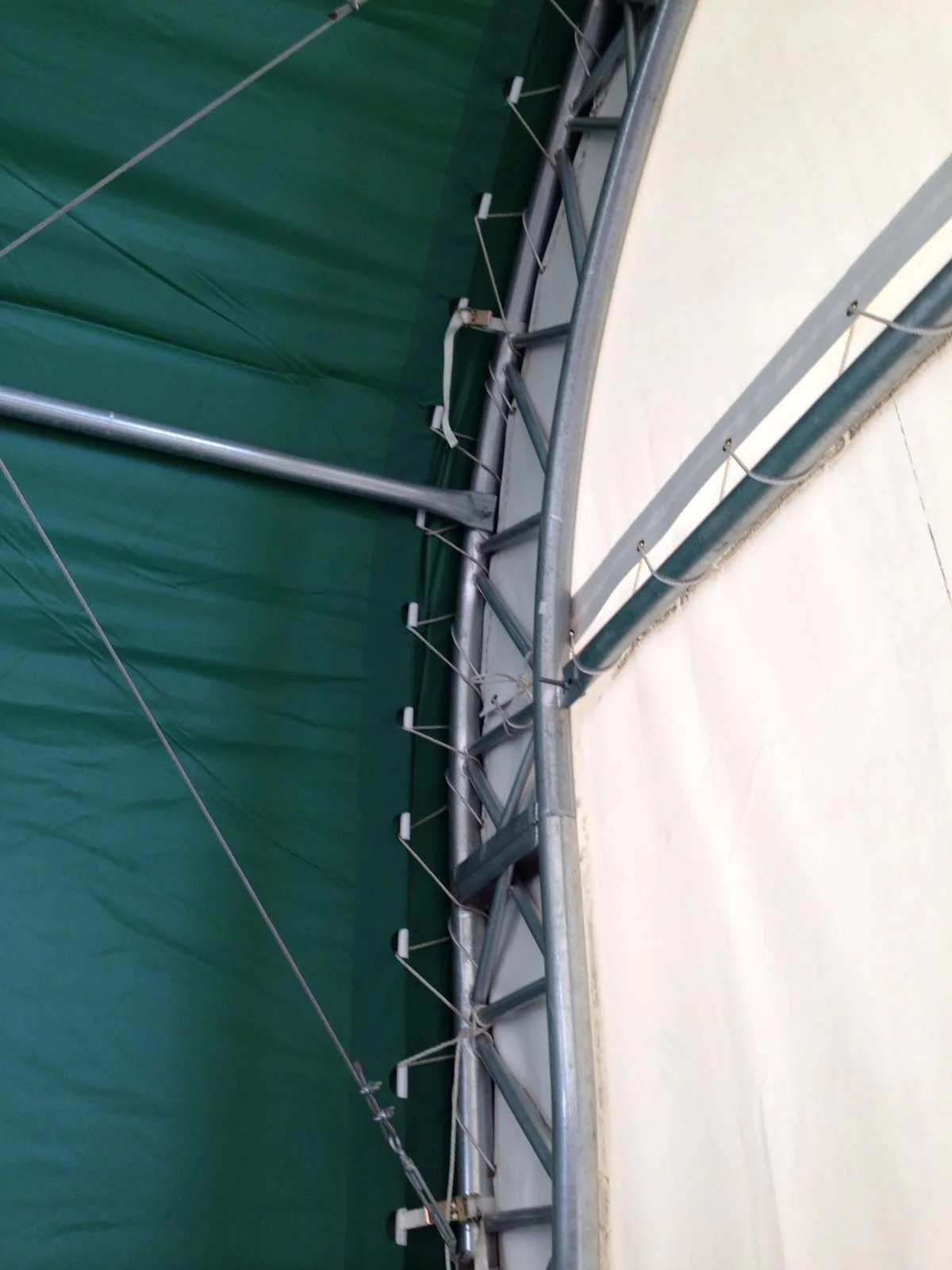

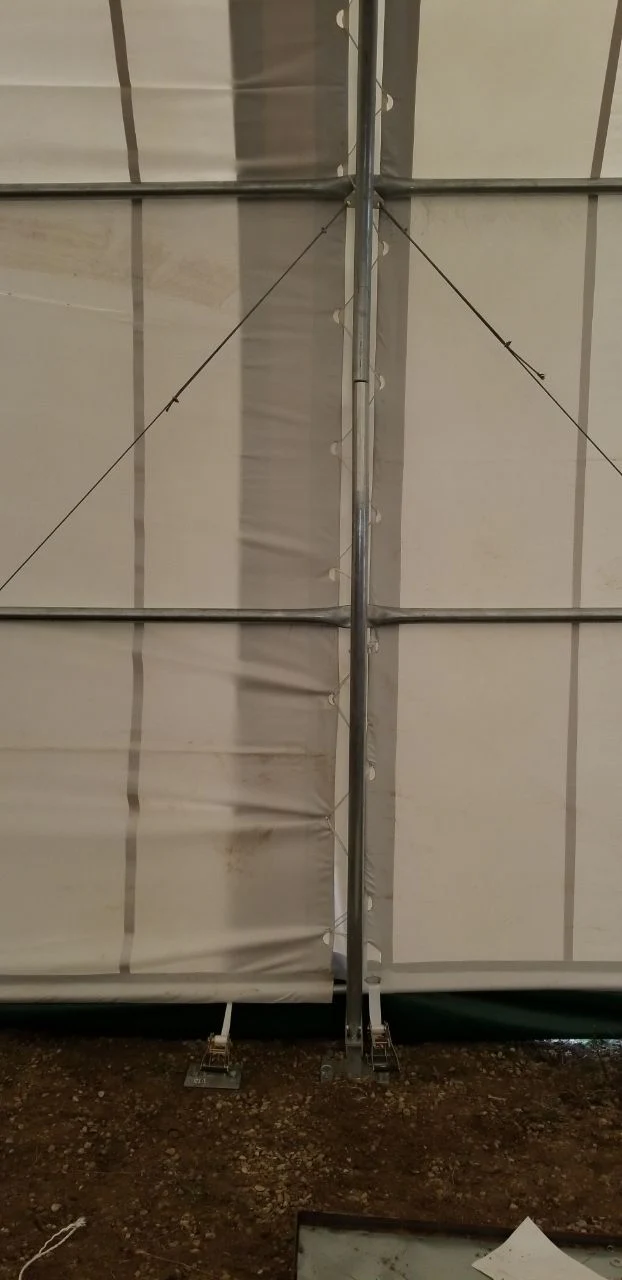

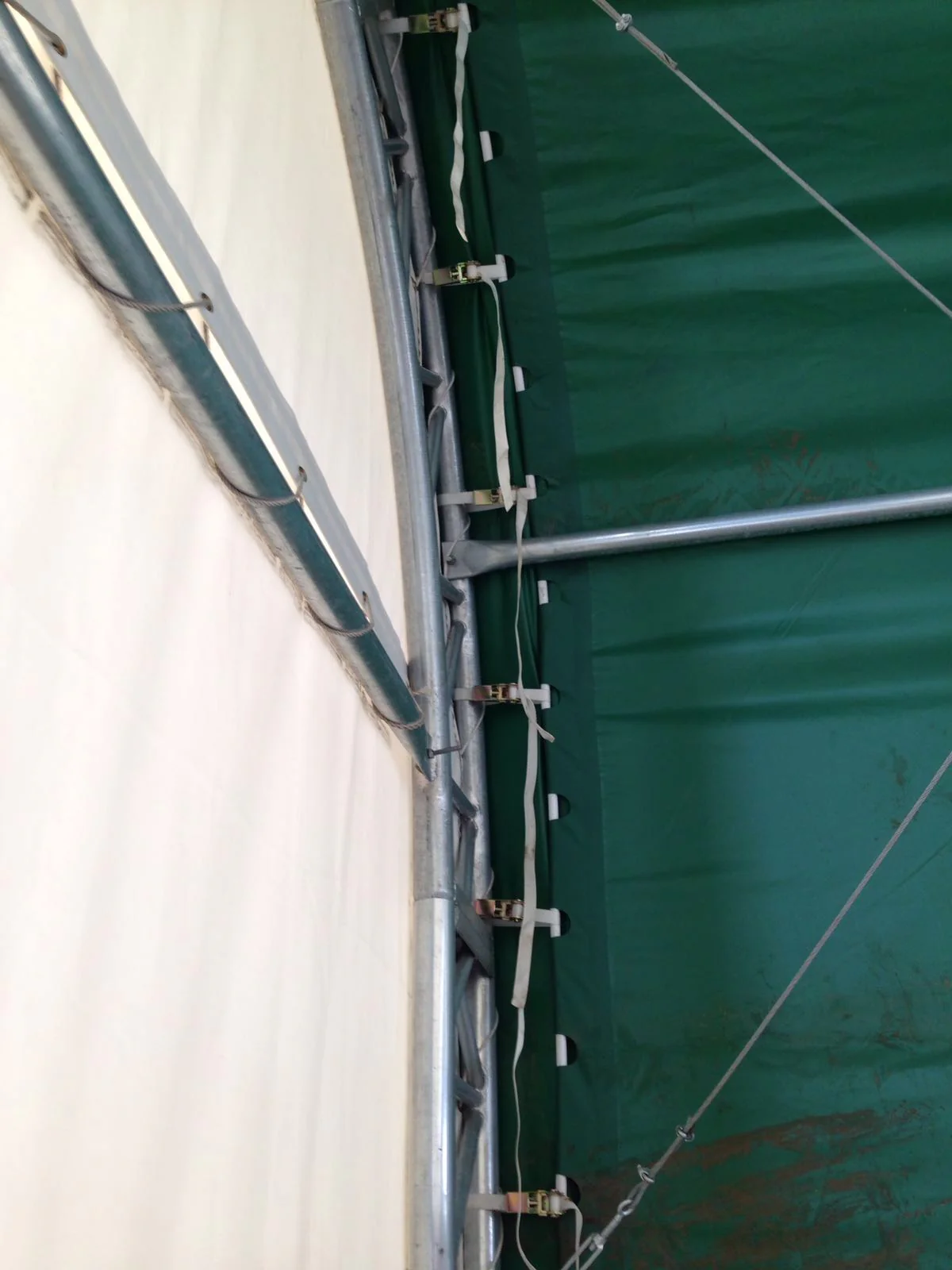

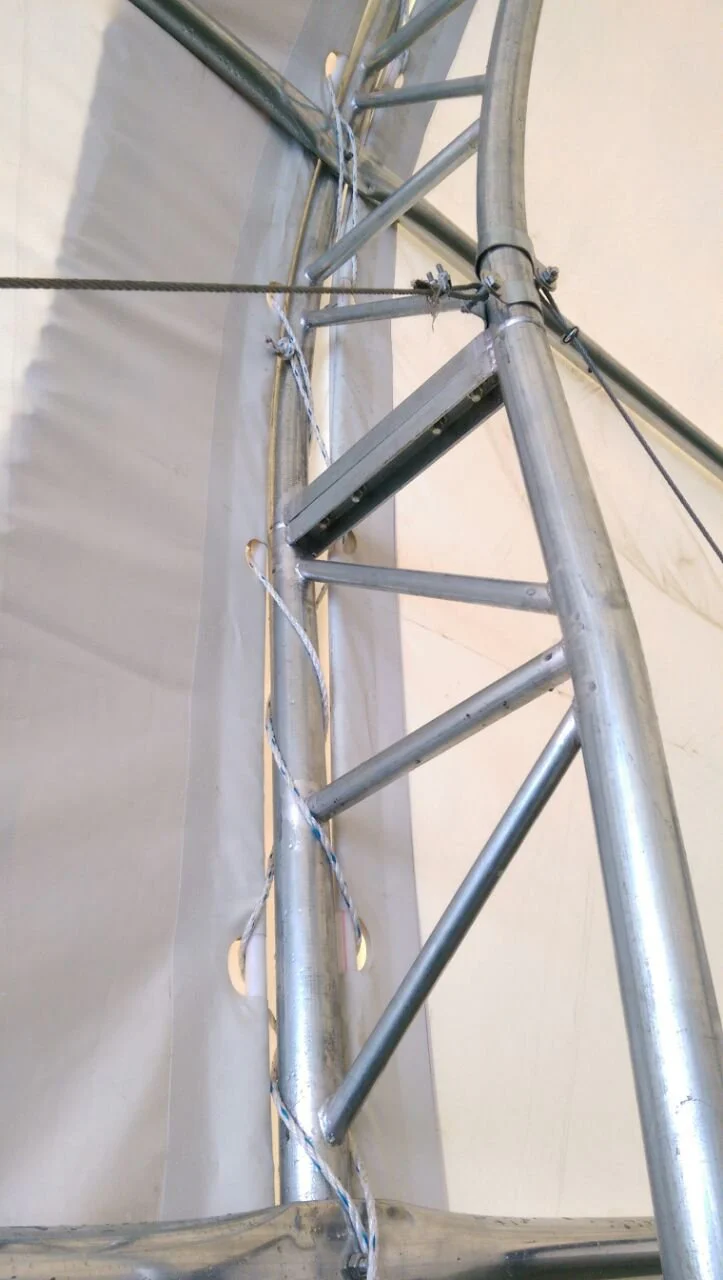

• Quad Tensioning Network: An integrated internal cable system ensures the fabric cover remains taut, preventing "pocketing" from precipitation and reducing mechanical wear on the membrane.

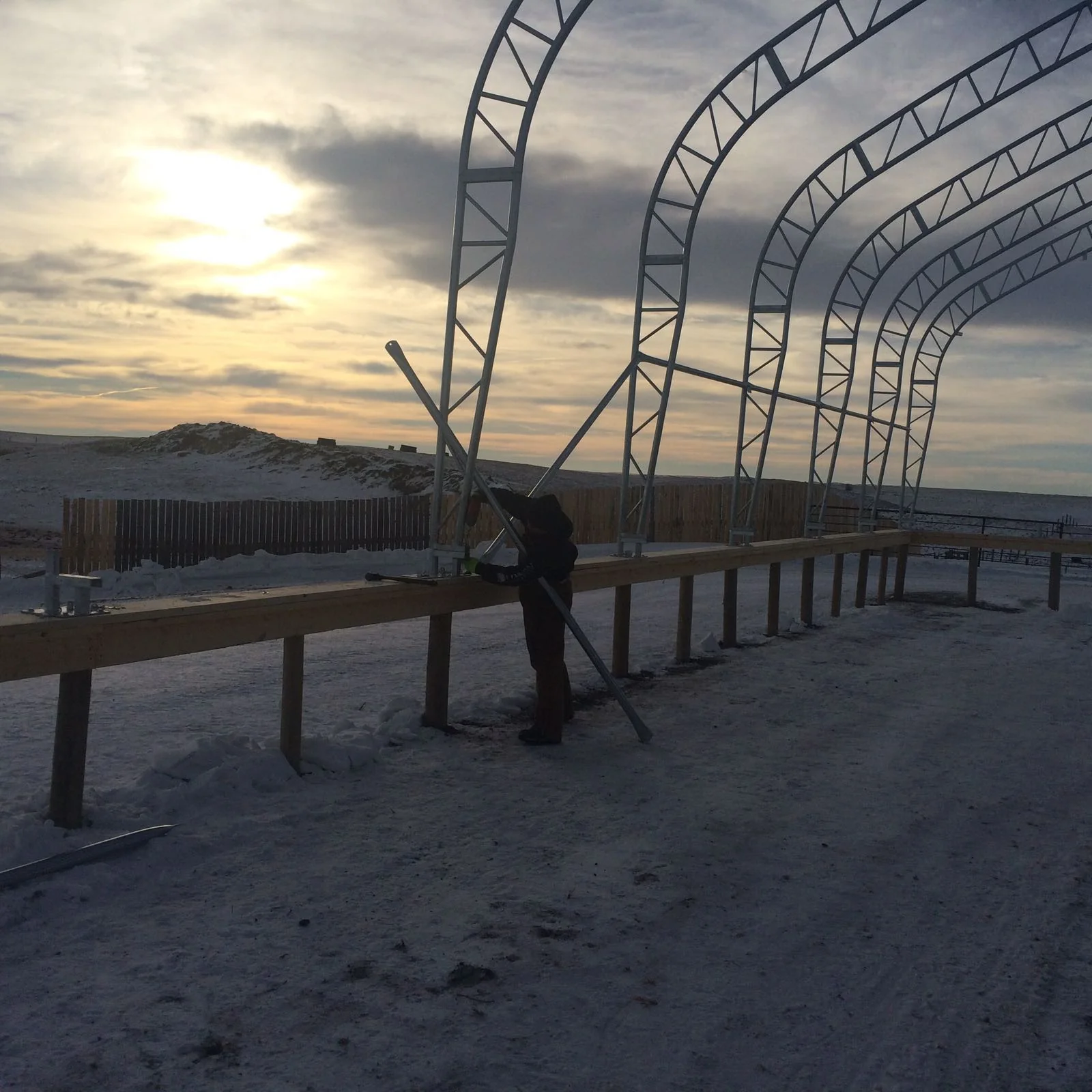

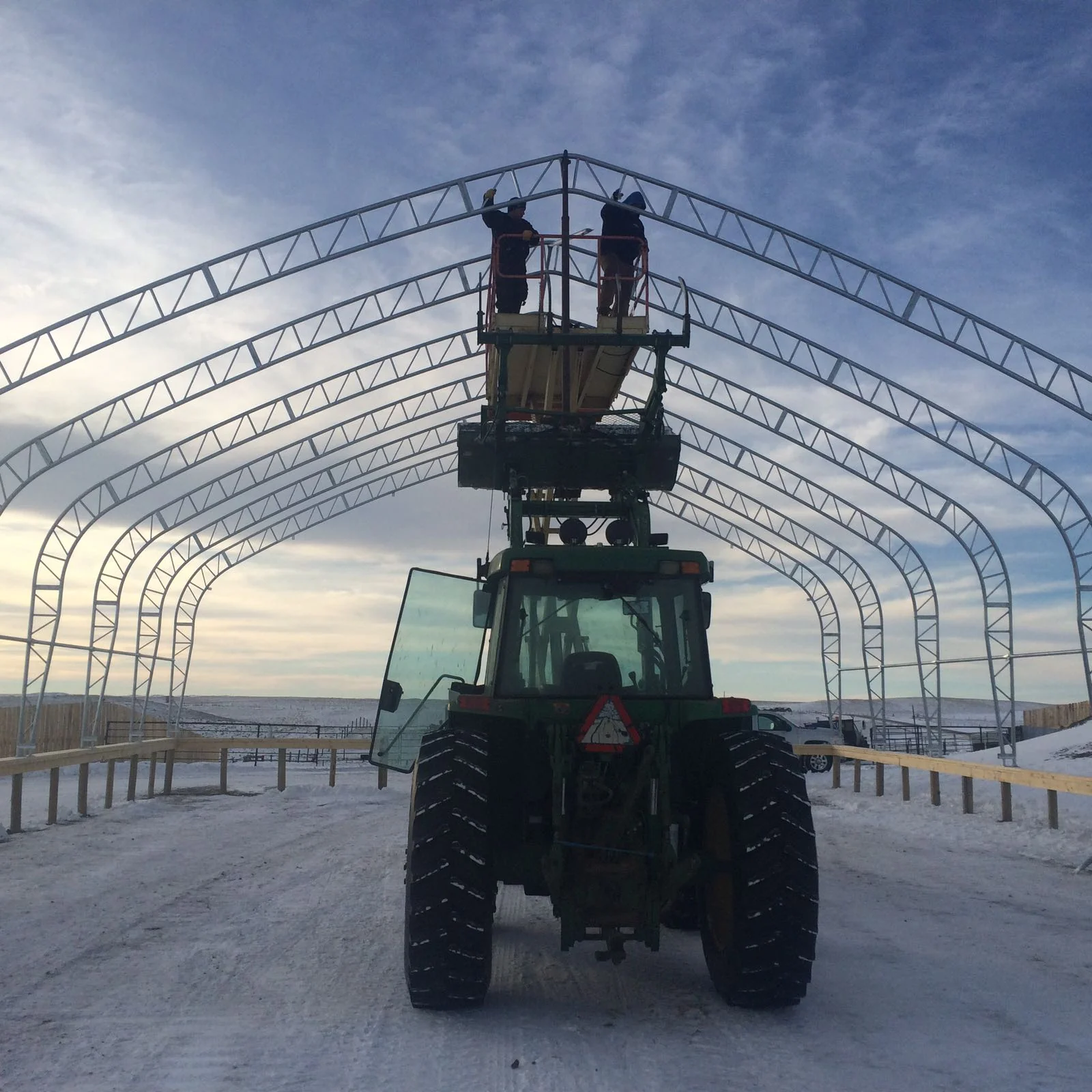

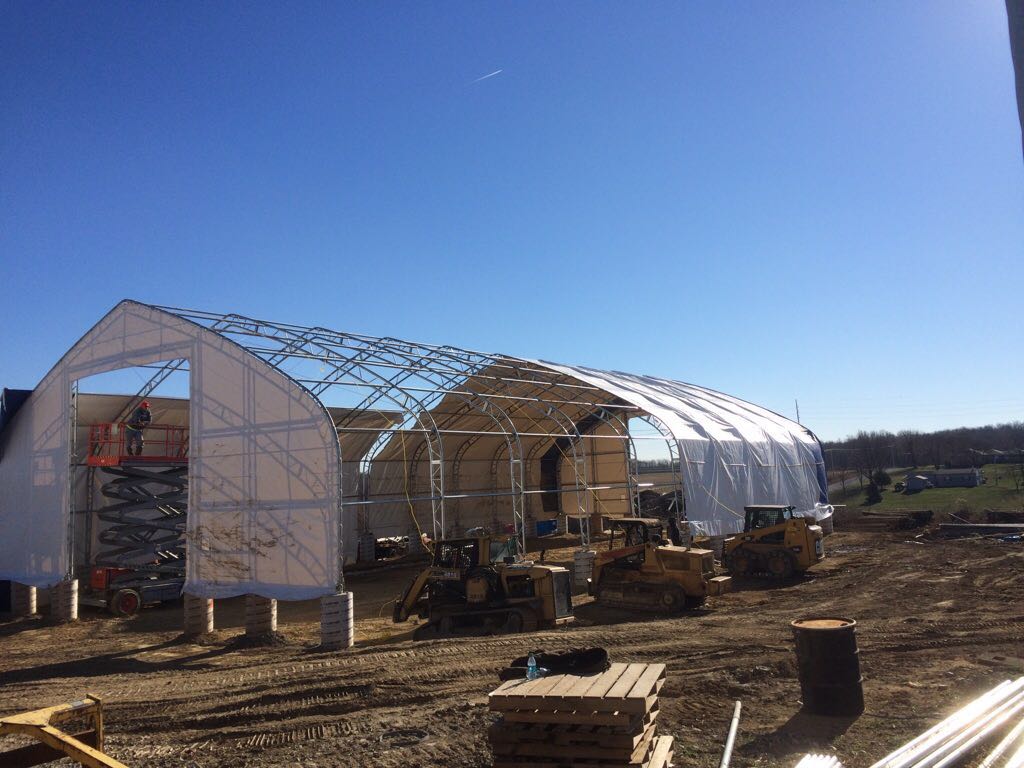

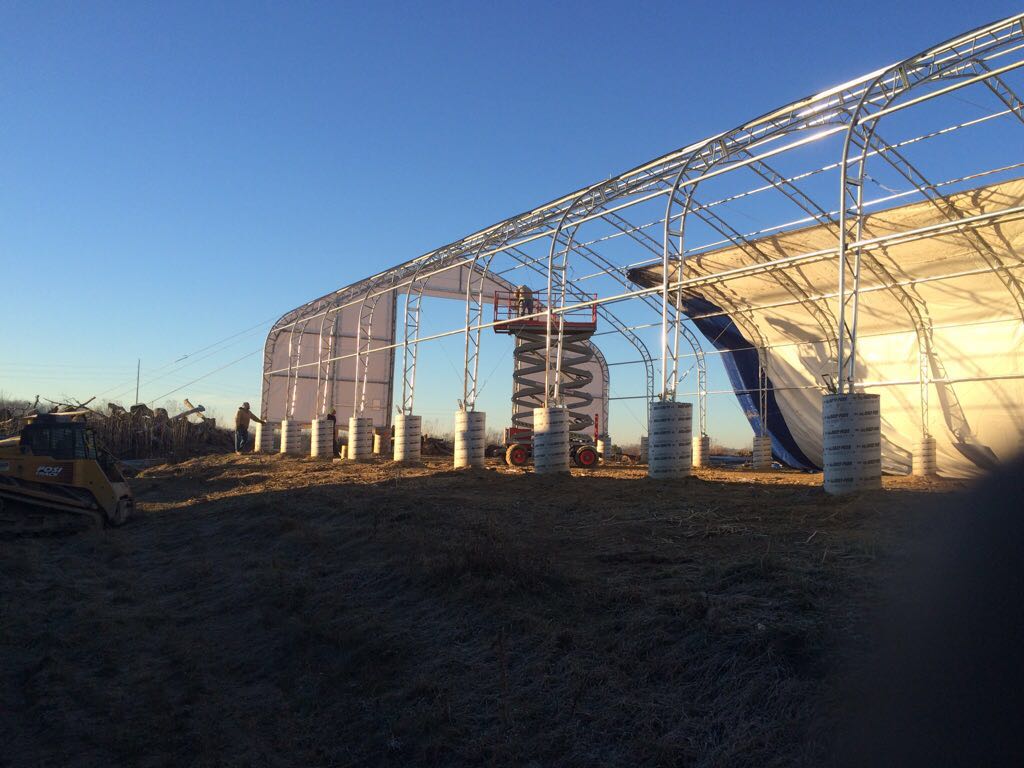

• Rapid Modular Assembly: Precision-manufactured bolt-together arches allow for efficient installation (typically under 2 days with a professional crew) without the need for on-site welding.

SPECIFICATIONS BY VARIANT

SKU	Model Class	Size (Metric: L x W x H)	Size (Imperial: L x W x H)	Arch Spacing
P506023P	Standard	18.29 x 15.24 x 7.01 m	60 x 50 x 23 ft	3.05 m (10')
P508023P	Standard	24.38 x 15.24 x 7.01 m	80 x 50 x 23 ft	3.05 m (10')

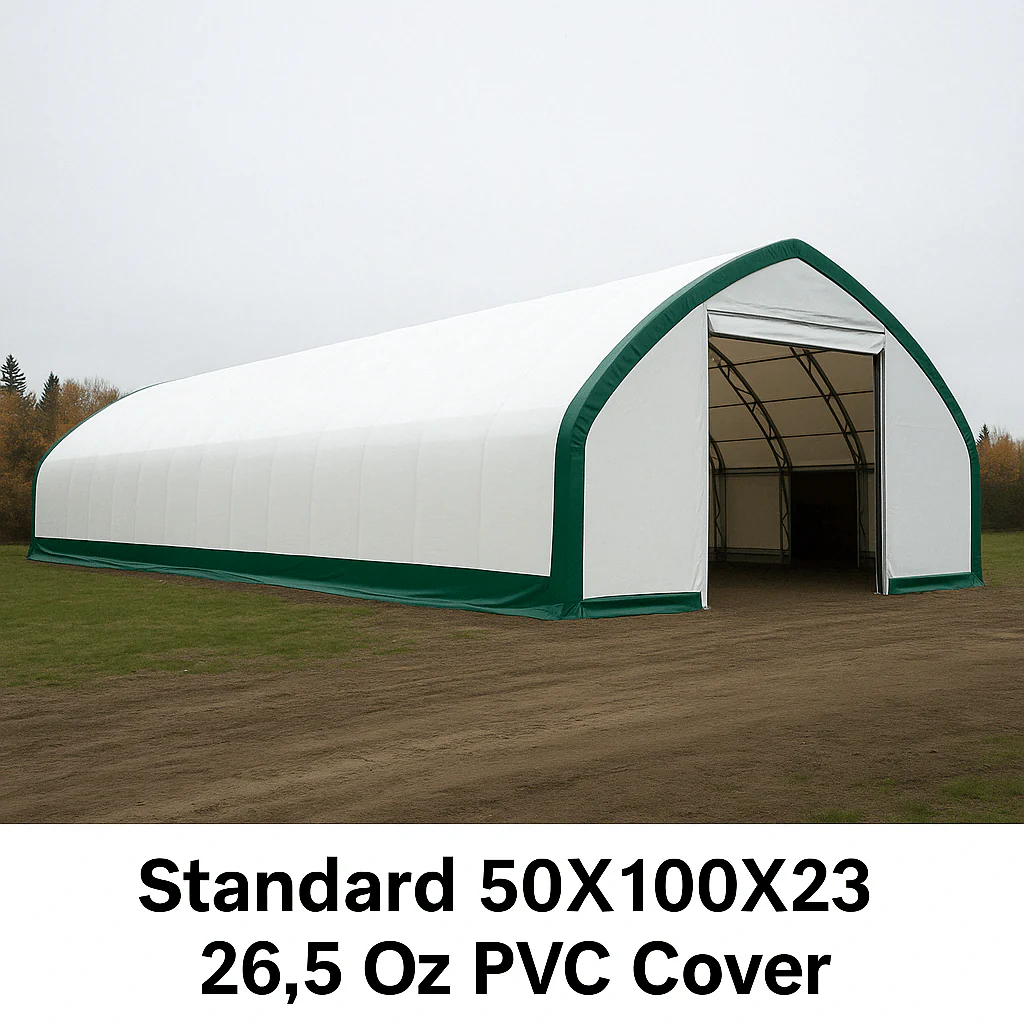

P5010023P	Standard	30.48 x 15.24 x 7.01 m	100 x 50 x 23 ft	3.05 m (10')
P5012023	Standard	36.58 x 15.24 x 7.01 m	120 x 50 x 23 ft	3.05 m (10')
P5015023P	Standard	45.72 x 15.24 x 7.01 m	150 x 50 x 23 ft	3.05 m (10')
5010423DPM	Heavy Duty	31.70 x 15.24 x 7.01 m	104 x 50 x 23 ft	2.44 m (8')
5012023DPM	Heavy Duty	36.58 x 15.24 x 7.01 m	120 x 50 x 23 ft	2.44 m (8')
5015223DPM	Heavy Duty	46.33 x 15.24 x 7.01 m	152 x 50 x 23 ft	2.44 m (8')
5020023DPM	Heavy Duty	60.96 x 15.24 x 7.01 m	200 x 50 x 23 ft	2.44 m (8')

TECHNICAL DATA

• Fabric: 26.5 oz (900 gsm) PVC (White)

• Standard Frame: 60 mm x 1.8 mm (2 3/8") Galvanized Steel

• HD Frame (DPM): 76 mm x 1.8 mm (3.0") Galvanized Steel

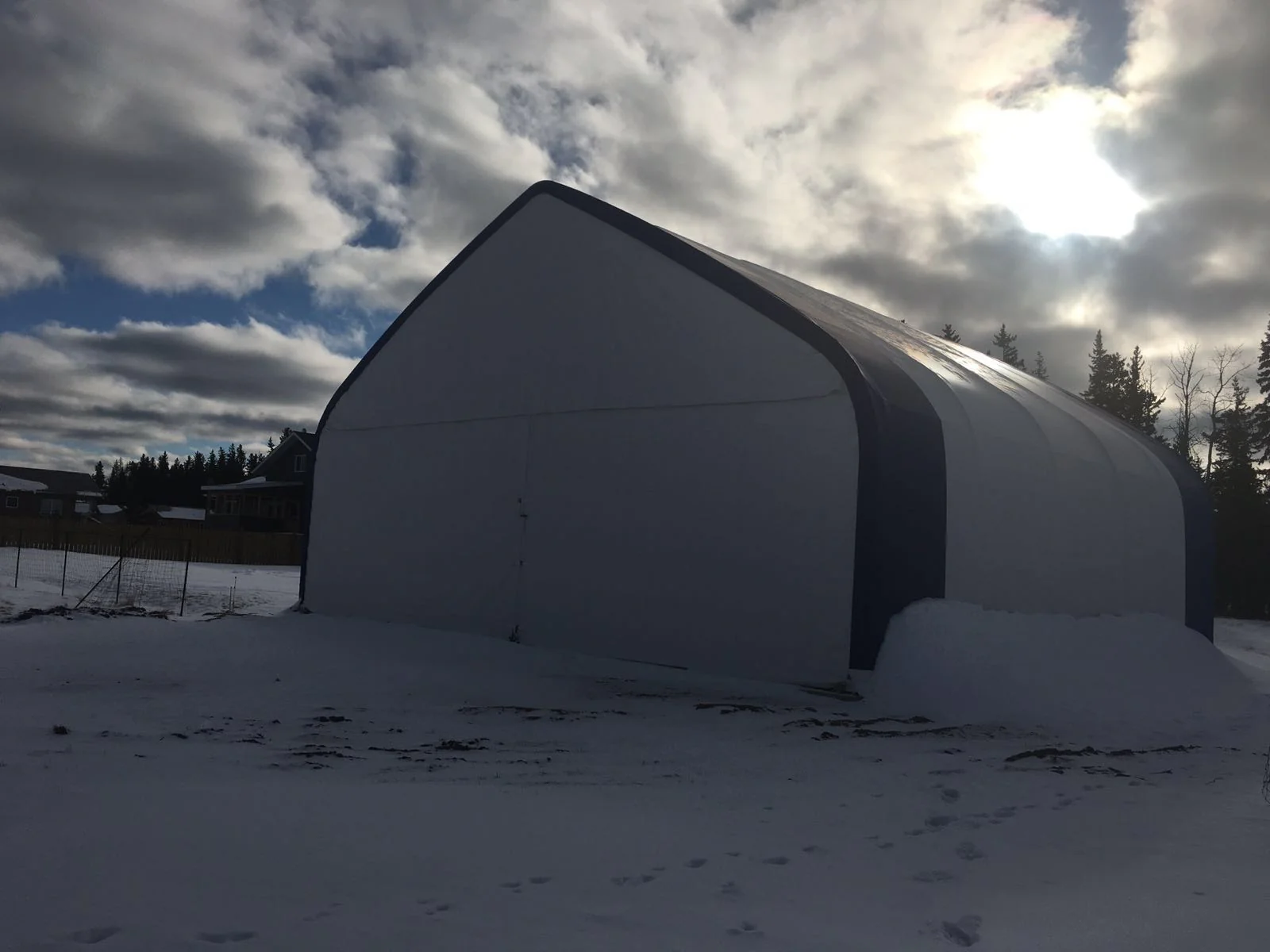

• Snow Load Rating: 20 lbs/sq ft (Standard) | 40 lbs/sq ft (HD DPM)

• Warranty: 15-Year Prorated Tarp / 10-20 Year Frame Warranty

IDEAL APPLICATIONS

• Industrial Warehousing – Massive, clear-span space for palletized inventory and bulk logistics centers.

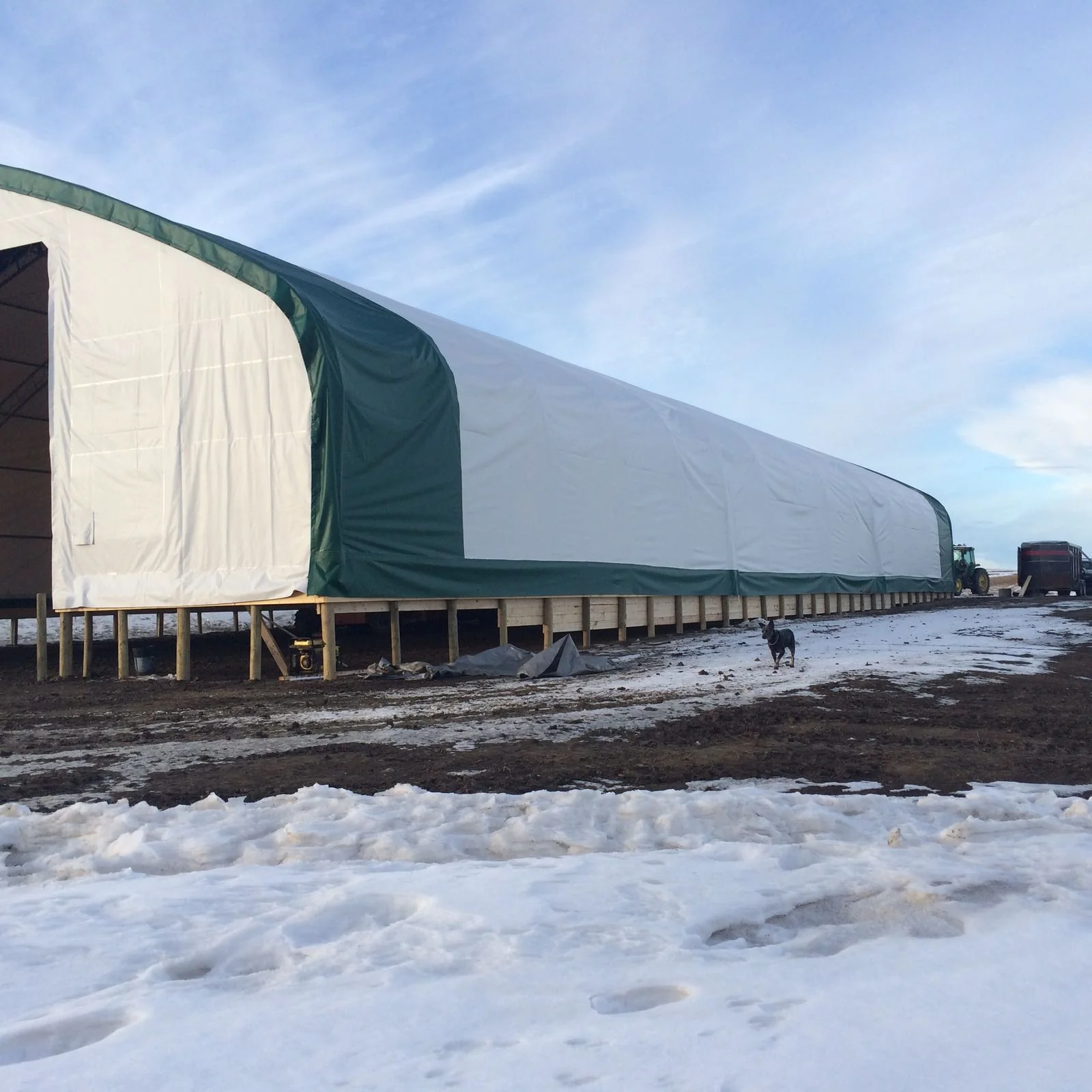

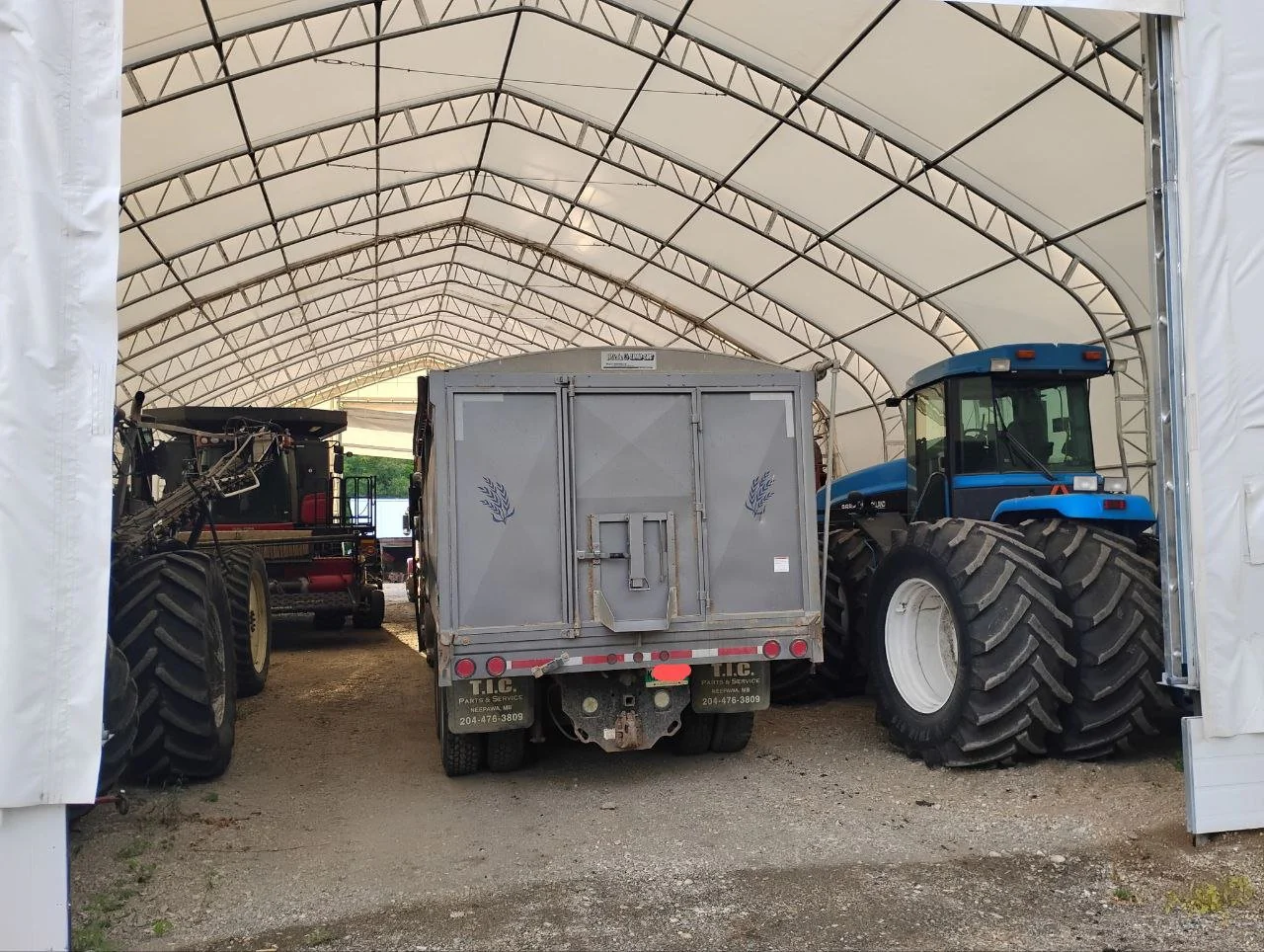

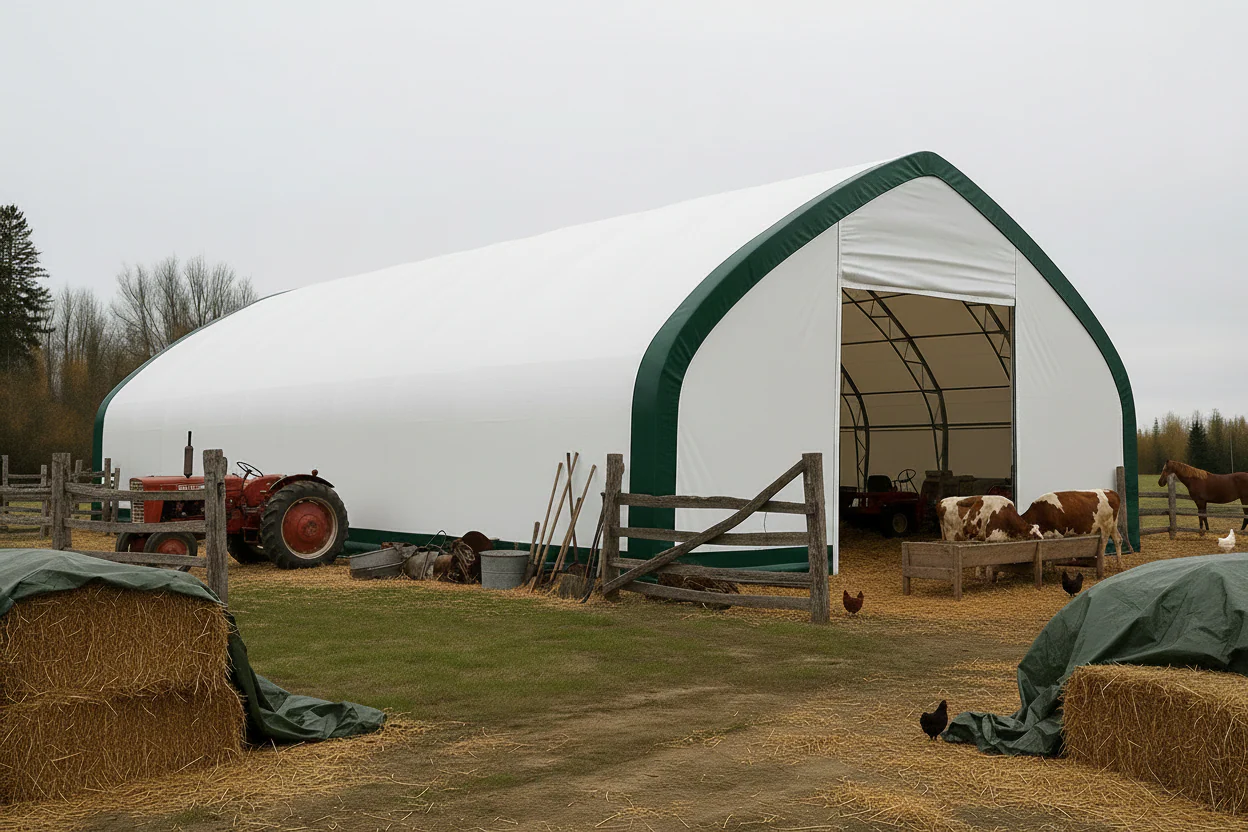

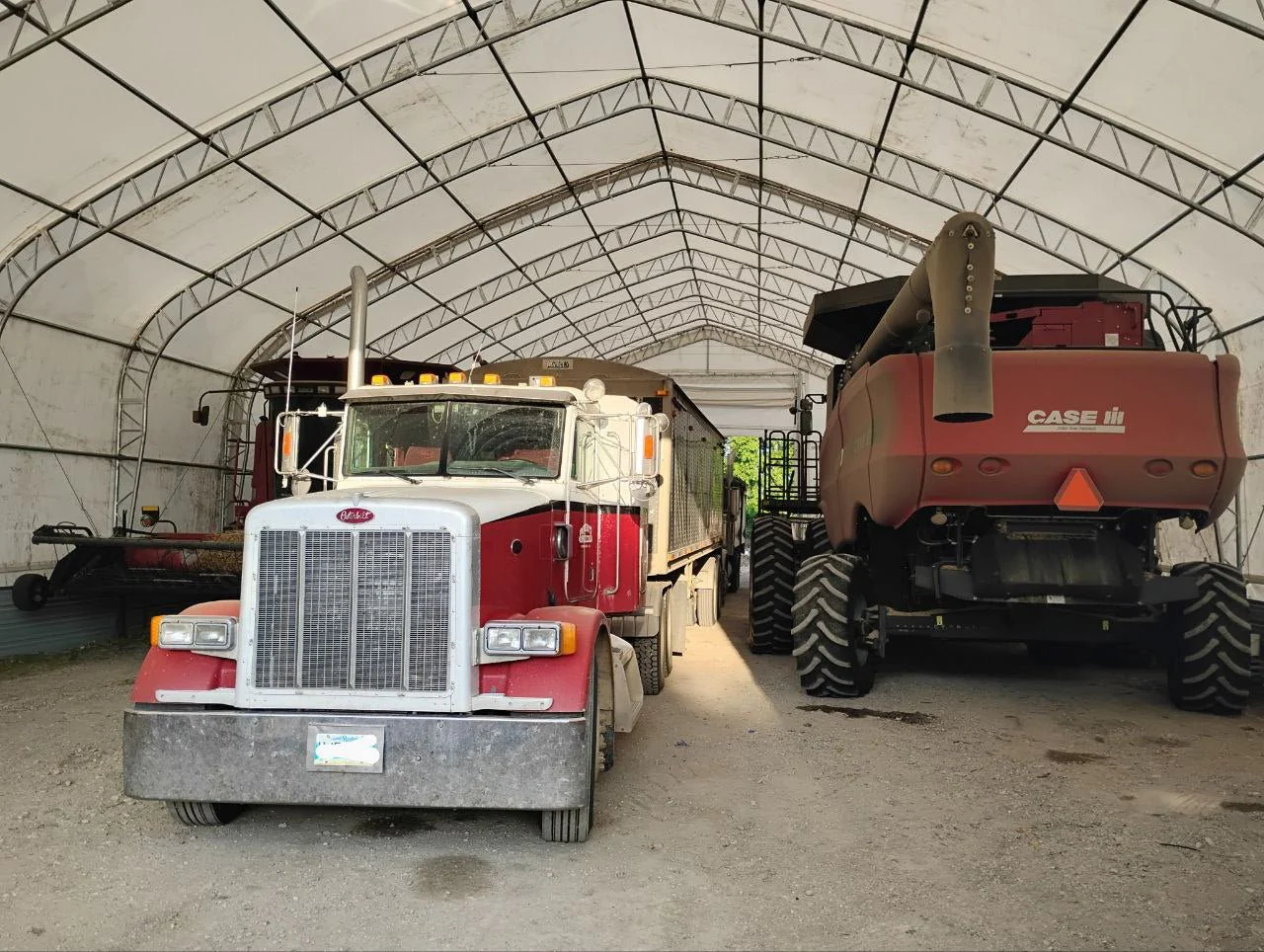

• Agricultural Super-Shelters – Protecting large-scale hay storage, combines, and multi-tractor fleets.

• Construction Site Depots – Providing a professional, dry environment for heavy machinery maintenance and material fabrication.

• Aviation & Marine Storage – Spacious clearance for aircraft hangars or dry-docking multiple large vessels.
